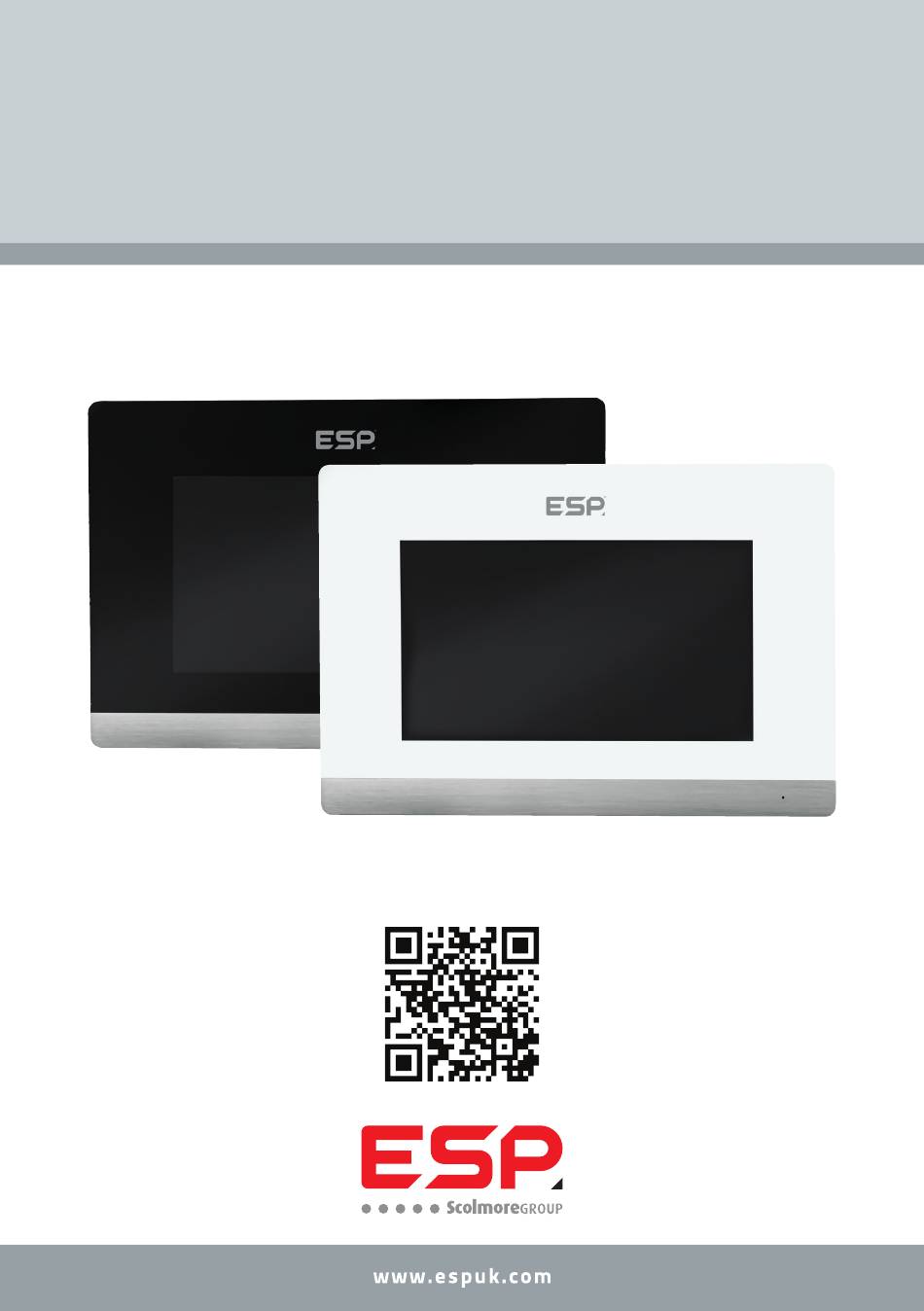

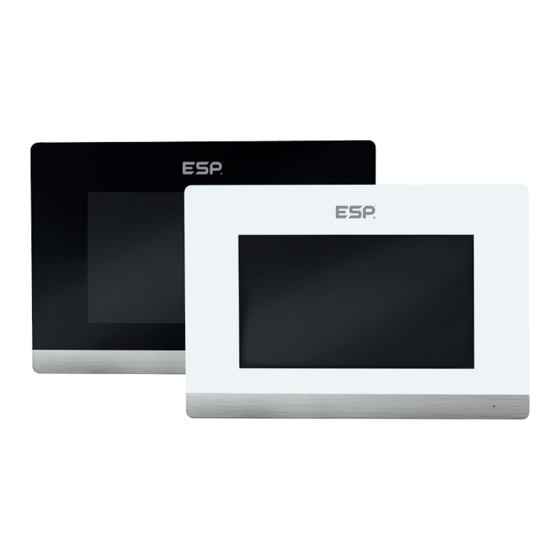

- Page 1 A1IPMW & A1IPMB Quick Start Guide Aperta IP PoE Monitor with App The latest product manuals and software is available online: https://www.espuk.com/technical_support REV: D23...
- Page 2 1. Installation Alternative power connections Connect to a normally open switch to trigger BELL the monitor’s doorbell facility Monitor Lock Connections RS485 Connect to a door chime IP/PoE connection Rawl Mounting Cables Plugs Plate Connect the Monitor to a switch/network or alternatively directly to a Door Station using the RJ45 port [1]. If the connected network does not support PoE, then DC12V1A needs to be applied to the 12V &...
- Page 3 2. Monitor Installation Mode Configuration The A1IPMW and A1IPMB can be used on both Villa and Apartment systems, but they require to be config- ured into the correct “Build” mode. Ensure the monitor has been powered up, using either the DC12V input [1] or PoE Input [2]. One the monitor has fully initialised click on “System Settings”, and then enter the code “31415”...
- Page 4 5. System Diagram Examples 6. App Connectivity Preparation For Use Ensure that the smart phone you are using is connected to the same Wi-Fi network that you would like to attach the monitor to. Ensure that you have a mobile device running iOS 8 or higher, Android 4.1x or higher, and a 2.4GHz Wi-Fi connection.
Need help?
Do you have a question about the ESP Aperta A1IPMW and is the answer not in the manual?
Questions and answers

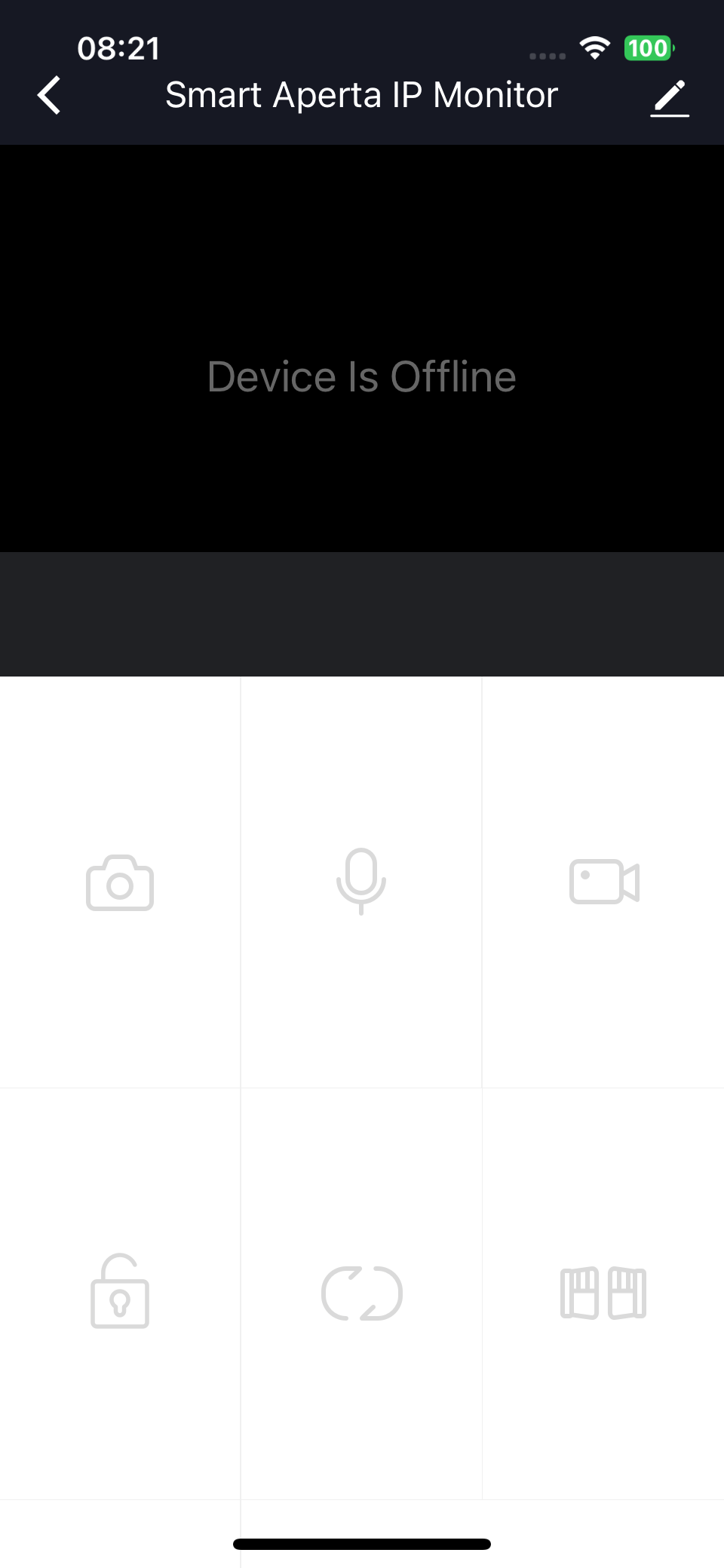

The hotspot is not stable, how do I stop the monitor from going offline on my app. I cannot get it to connect to wifi. The monitor is live but the app on my phone is offline. The hotspot comes up I click on it but it disappears everytime I try and verify it on the monitor.
