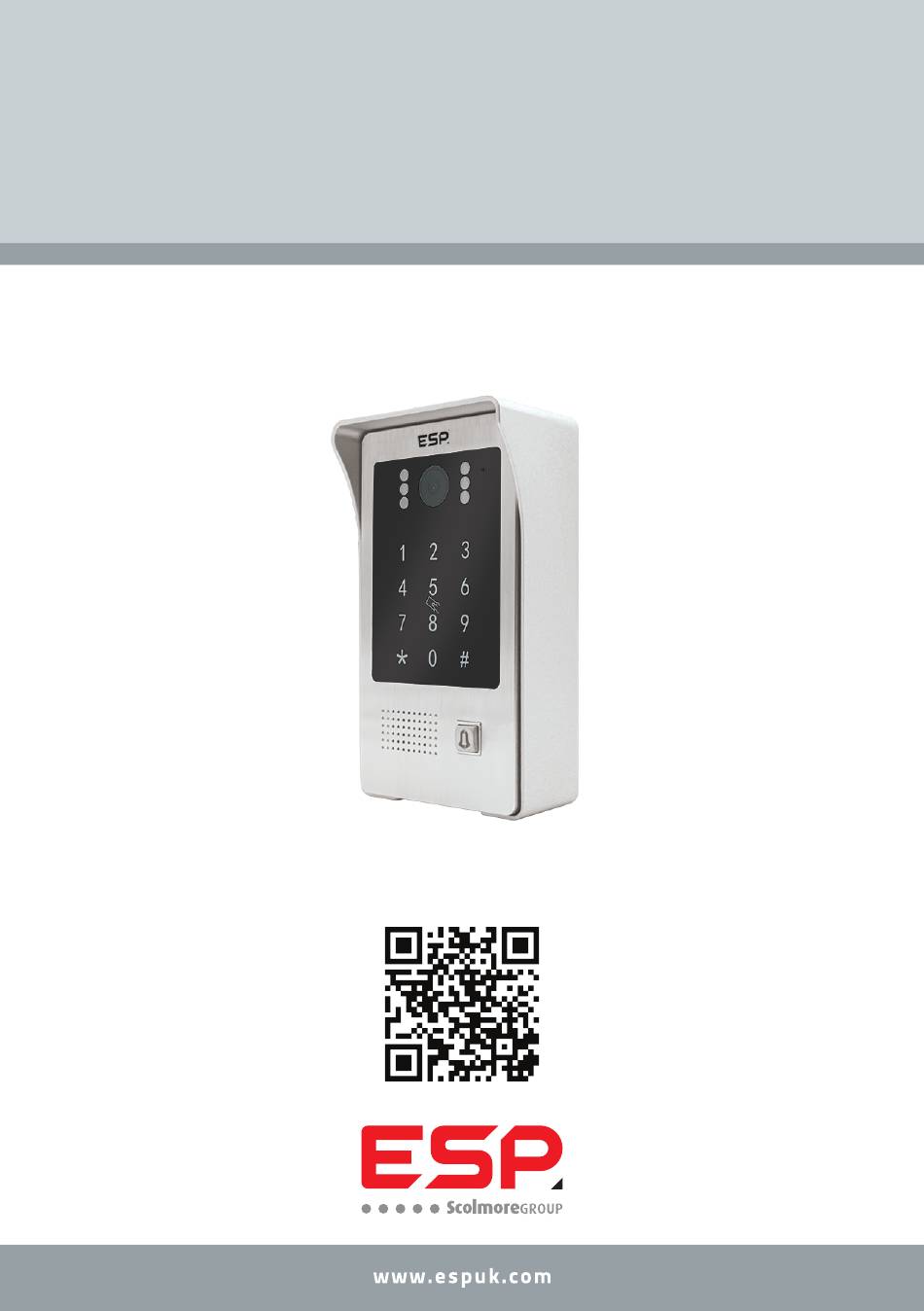

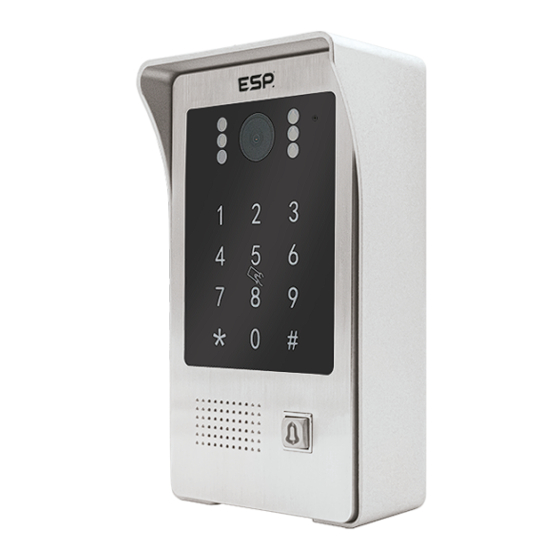

- Page 1 A1IPVDS Quick Start Guide Aperta IP PoE Single Way Outdoor Station IP65 HD with Proximity Reader The latest product manuals and software is available online: https://www.espuk.com/technical_support REV: D23...
- Page 2 1. Installation Alternative power connections Fail Secure Lock (+) NO12V+ (Red) (Orange) Video Door Station (Green) Lock Connections (Yellow) Exit button (Brown) Sensor (White) Ground (Black) 485A RS485 485B IP/PoE connection Connect the Door Station to a switch/network or alternatively directly to a Monitor using the RJ45 port [1]. If the connected network does not support PoE, then DC12V1A needs to be applied to the 12V &...
- Page 3 2. Single Device Installation Ensure both the Door Station & Compatible monitor are connected VIA a PoE Switch or Directly connected VIA an Ethernet cable. Factory reset both Door Station & Monitor: Door Station Reset - Press call button for 60 Seconds, when a ringtone plays it has successfully reset.
- Page 4 4. Public PIN Code Entering administration mode: When in standy, press [ + Admin Passcode + #], if the doorbell bleeps twice, and the call button is slowly flashing, you have successfully entered administration mode. Setting the Public Unlock PIN: Once in Administration Mode press;...
