MCM-101 Manual.qxd
1/19/04
10:04 AM
Page 1

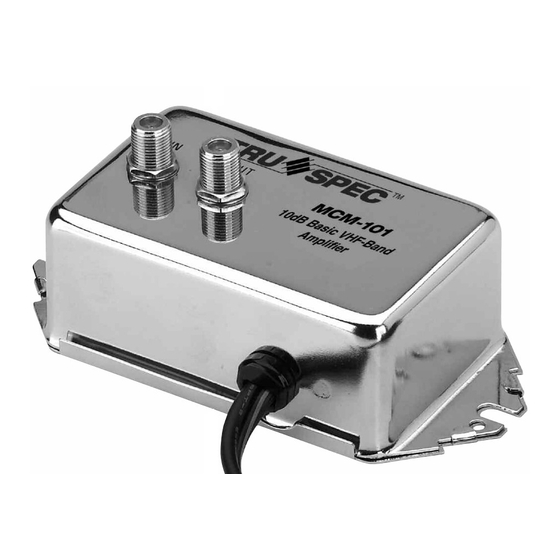

MCM-101
10dB Basic VHF-Band Amplifier
Installation and
Operation Manual
Cost-Effective Basic VHF Amplifier – 41 CATV Channel Range (54-300MHz) suitable
for home signal distribution – Heavy Gauge Rugged Shielded Wall-Mount Case –
Convenient and compact design allows quick and easy installation – Maximum Input
36dBmV (7 non-adjust channels), 24dBmV (36 non-adjust channels) – Gain 10dB (54-
450MHz) – Flatness ±1dB – Noise Figure 4dB – 117VAC 60Hz 2W Power Source –
Weight 2.1 lbs.
Operation
www.picomacom.com
Ph: 800-421-6511
Manual
Rev. 01/04
Advertisement
Related Manuals for Pico Macom MCM-101
Summary of Contents for Pico Macom MCM-101
- Page 1 MCM-101 Manual.qxd 1/19/04 10:04 AM Page 1 MCM-101 10dB Basic VHF-Band Amplifier Installation and Operation Manual Cost-Effective Basic VHF Amplifier – 41 CATV Channel Range (54-300MHz) suitable for home signal distribution – Heavy Gauge Rugged Shielded Wall-Mount Case – Convenient and compact design allows quick and easy installation – Maximum Input 36dBmV (7 non-adjust channels), 24dBmV (36 non-adjust channels) –...
-
Page 2: Important Safety Instructions
To insure proper installation and operation, take a moment to read this guide before proceeding with the installation. If you have any questions or comments about the MCM-101 10dB Basic VHF-Band Amplifier, please contact your dealer or have him contact the PICO MACOM Service Center at these phone numbers: 800-421-6511, 818-493-4300. -
Page 3: Installation Procedure
Connect an F type jumper cable from the source to the IN connector of the MCM-101. Connect an F type jumper cable from the OUT connector of the MCM-101 to the distribution system. Plug the power cable into a polarized electrical outlet. -
Page 4: Limited Warranty
We will issue an invoice for the List Price of the loaner unit plus shipping costs. When you receive the loaner unit, pack the failed unit in the loaner unit’s box and ship it freight prepaid to Pico Macom for repair. When you receive the repaired unit, a new RMA number will be provided in the box. Carefully pack the loaner unit and affix the new RMA number on the box and ship it back to us for full credit excluding shipping costs.
