Kärcher B602 plus Instruction Manual

Hide thumbs

Advertisement

Table of Contents

B602 plus
5.960-264 01/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B602 plus and is the answer not in the manual?

Questions and answers

Kevin Freeland
May 17, 2025

I’m not getting any water through

0
1 comments:
Mr. Anderson
May 22, 2025

Water may not be coming through the Kärcher B602 plus due to the following reasons:

1. Nozzle is blocked or worn out – Clean or replace the nozzle.
2. Inadequate mains water pressure – Check the inlet water flow rate.
3. Inlet hose is squeezed – Straighten the hose.
4. Water filter is clogged – Clean the filter.
5. Inlet hose is blocked – Check for leaks or blockages.
6. Blocked filter in the detergent tank – Unblock the filter.
7. Ventilation hole in the detergent tank cover is blocked – Clean the hole.

This answer is automatically generated

0
Eddie Myson
February 21, 2025

The motor on my B602 washer seems to have siezed up, can these motors be replaced?

0

Related Manuals for Kärcher B602 plus

Summary of Contents for Kärcher B602 plus

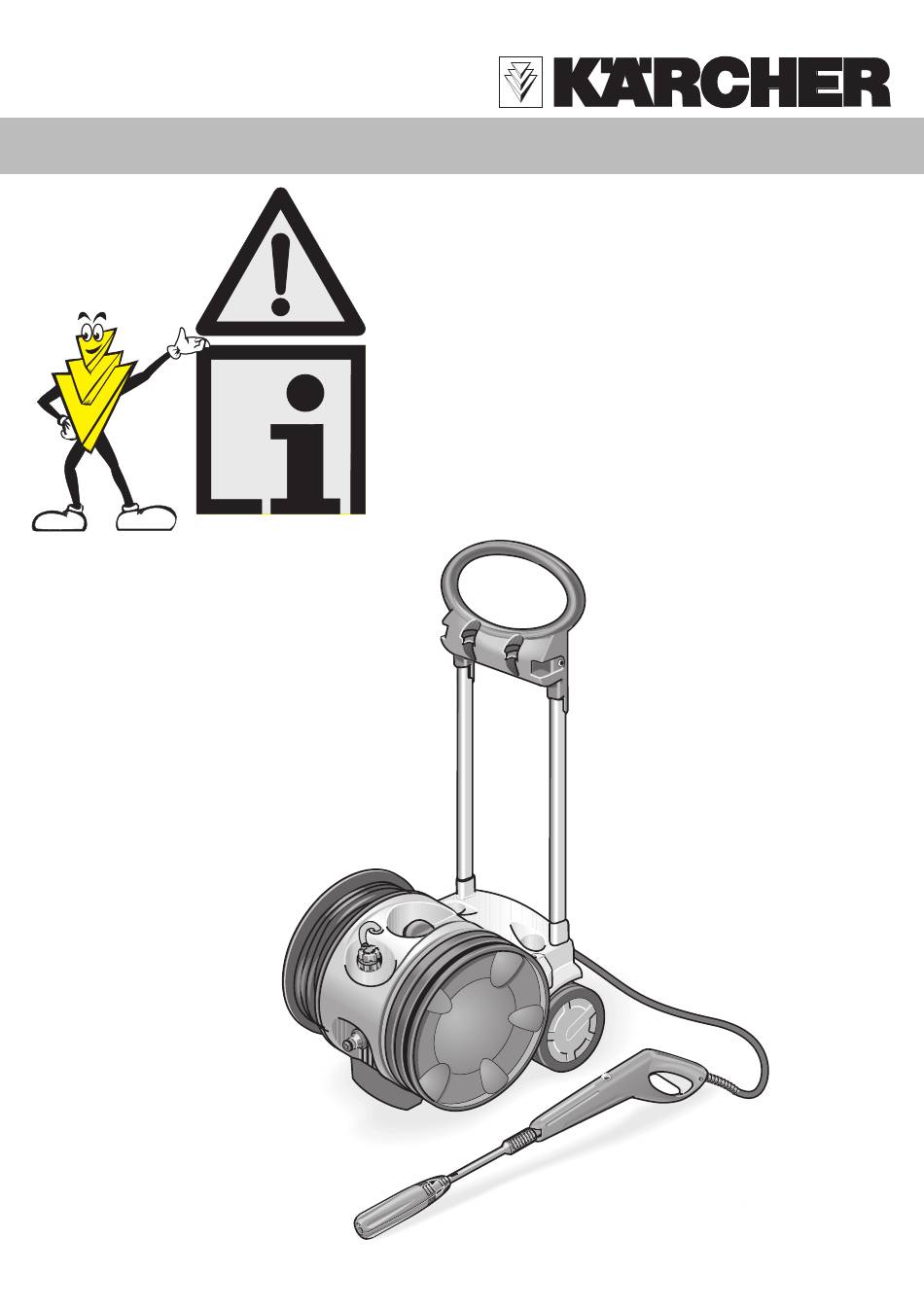

  • Page 1 B602 plus 5.960-264 01/02...
  • Page 2 THANK YOU FOR PURCHASING A KARCHER PRESSURE WASHER PLEASE READ THIS LEAFLET CAREFULLY BEFORE OPERATING YOUR MACHINE. WHAT IS A PRESSURE WASHER? A Pressure Washer is essentially a powerful electric motor driving a set of pistons that force water through a small nozzle, thus creating a pressurised jet of water.

  • Page 3: Table Of Contents

    INDEX APPLICATIONS SAFETY INSTRUCTIONS GETTING STARTED 3.1 Contents 3.2 Water Connection 3.3 Electrical Connection 3.4 Suction Mode 3.5 Detergent OPERATING YOUR PRESSURE WASHER 4.1 High Pressure Operation 4.2 Low Pressure Operation Without Brush 4.3 Low Pressure Operation With Brush 4.4 End Of Operation 4.5 Storage IMPORTANT –...
  • Page 4 1. APPLICATIONS The main applications for this product are DOMESTIC cleaning tasks: • Cars, motorbikes, caravans, boats and bicycles • Patio’s, fences, garden walls, pathways, driveways and house facades – particularly useful for cleaning block driveways • Removal of algae and moss from roofs, brickwork and guttering •...
  • Page 5 2. SAFETY INSTRUCTIONS BEFORE STARTING UP YOUR PRESSURE WASHER PLEASE CHECK YOU HAVE THE FOLLOWING: We recommend you purchase these items from a reputable store • RCD plug and socket that will interrupt electrical supply in an emergency. • A typical garden hose (minimum length 7.5 metres) with suitable hose connection (Hoselock/Gardena type) to match the coupling on the machine (hose and connector not supplied).
  • Page 6 3. GETTING STARTED 3.1 Contents Upon opening the carton, Assembly if you do not have all the items see Page 19 as detailed please contact the Customer Helpline. Assembly see Page 19 Assembly see Page 19 1 Transport Bracket 10 Detergent Dosing Valve 2 High Pressure Hose Reel Detergent Suction Tube with Filter 3 High Pressure Outlet...

  • Page 7: Water Connection

    Please follow these instructions carefully for troublefree cleaning. Use the diagram on Page 6 for reference purposes. 3.2 Water Connection • The minimum length of supply hosepipe advised for maximum user convenience is 7.5 metres with a diameter of 12.5 mm (1/2") to allow free flow of inlet water to the machine so avoiding backpressure and any associated potential damage to your machine.

  • Page 8: Detergent

    • Re-connect the Spray Lance to the Spray Gun. Dirt in the drawn water could damage your Pressure Washer ! To avoid this risk please use a suitable filter - Part No. 6.414.389. 3.5 Detergent It is recommended that only cleaning agents formulated by and manufactured for Karcher should be used.

  • Page 9: Operating Your Pressure Washer

    4. OPERATING YOUR PRESSURE WASHER If you have followed all the instructions so far, you are now ready to have fun cleaning the KARCHER way!!! • Turn on the supply water and press the Spray Gun lever (No.12) until the water flows freely and removes all air locks from the hoses. •...

  • Page 10: High Pressure Operation

    4.1 High Pressure Operation • Switch on the pressure washer (No.4) • Ensure the Spray Lance with the Four–Way Nozzle (No.16) is attached securely to the Spray Gun (No.12) and the nozzle is set to the required jet. • Aim the lance towards the object to be cleaned making sure the recommended working distance is used (for reference see Page 9).

  • Page 11: Low Pressure Operation With Brush

    We recommend the following cleaning method: Step 1: Remove loose dirt by washing over the surface to be cleaned with the high pressure jet. Step 2: Spray on the detergent and leave for 1-4 minutes, so assisting the easy removal of fine dirt and associated greasy adhesions. Step 3: Finally, spray off the loosened dirt with the high pressure spray.

  • Page 12: End Of Operation

    4.4 End Of Operation ALWAYS REMEMBER TO RINSE YOUR PRESSURE WASHER AFTER USING DETERGENT BY FILLING THE DETERGENT CONTAINER WITH CLEAN WATER AND RUN THE PUMP FOR APPROXIMATELY ONE MINUTE In the event of a break of 5 minutes in the operation of your Karcher Pressure Washer, always switch off the pump to avoid damage due to overheating.
  • Page 13 • Visually check to see if the nozzle is blocked by dirt or grit, if so, remove the dirt from the nozzle hole with a needle and rinse with water from the front. Failure to do this will seriously damage your machine and invalidate the warranty.
  • Page 14 6. ACCESSORIES A wide range of popular accessories are available from your local store selling Karcher Pressure Washers. 4.763-228 Dirt Blaster/Rotary Jet A rapidly rotating pencil jet used to remove loose paint, stubborn algae and moss from hard surfaces. 4.760-269 Triple Nozzle Lance An integral fan jet, pencil jet and low pressure chemical jet in one unit allows optimal nozzle selection.

  • Page 15: Accessories / Spare Parts

    6. Spare Parts In the event that your Karcher Pressure Washer requires replace- ment parts – please refer to the diagram below AND identify the par- ticular model of your machine by reference to the data plate on the underside. Please write, email or fax Karcher (see page 17) with any parts or- der you wish to place.
  • Page 16 7. PROBLEM CHECKLIST The machine you have chosen is of the highest quality. Correctly stored away from frost it should operate without problems. If a problem does arise, please check the following chart as a solution may be at hand. PROBLEM POSSIBLE CAUSE CORRECTION...

  • Page 17: Help-Line

    8. HELP - LINE Karcher (UK) Limited operate a help-line allowing customers to discuss any problems experienced with our products. The help-line operates during normal business hours, if you have diffi- culty getting through, please understand that there are peak periods during the day when our consultants are unable to take all calls coming in.

  • Page 18: Technical Data

    9. TECHNICAL DATA Power Connection Voltage ..............230-240 V (AC) Current ................ 1~50 Hz Connected/Load ............. 2.5 KW Mains Fuse ..............13 AMP Water Connection Supply Temperature (Max) ..........40 °C Supply Rate (Min) ............600 Litres per Hour Supply Pressure (Max) ............. 6 bar Supply Hose Length ............

  • Page 19: Assembly

    10.ASSEMBLY...
  • Page 20 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construction as well as in the version marketed by us. This declaration will cease to be valid if any modifications are made to the machine without our express approval.
