Summary of Contents for Logik L200CFB15

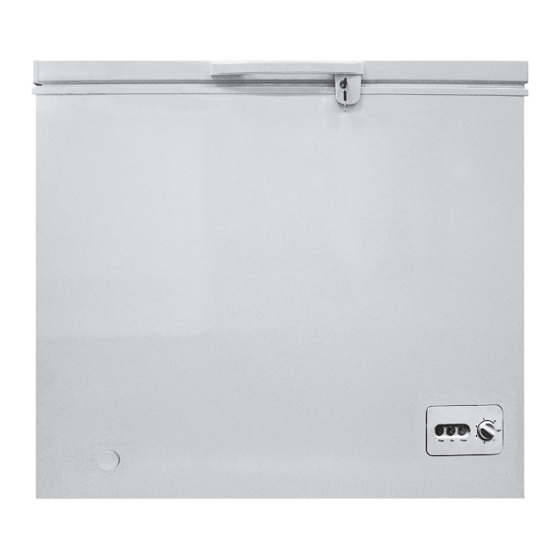

- Page 1 Instruction Manual 200L Chest Freezer L200CFW14 / L200CFB15...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 6 Location ..................................7 Free Space Requirements ............................7 Installing the Door Handle ............................7 Cleaning Before Use ..............................7 Before Using Your Unit ............................7 Product Overview ......................... 8 Operation ............................9 Switching On Your Unit ............................9 Adjusting the Temperature ...........................9 Fast Freezing................................9 Noises Inside the Unit! ............................ -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable) WARNING • Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
-
Page 6: Unpacking
Thank you for purchasing your new Logik Chest Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Location
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm and the room is well ventilated. This unit can be used in a garage or outbuilding. For optimum energy efficiency the unit should be located within an average room temperature of between 10°C and 43°C. -
Page 8: Product Overview
Product Overview Light Freezer Basket Water Drain Plug Power Alarm Power Alarm Indicator Indicator Indicator... -
Page 9: Operation
Operation Switching On Your Unit On first connecting the mains cable to the mains socket, all 3 status indicators will light up. Once the unit reaches the correct temperature: • Power Indicator (green) : stays on • Run Indicator (red) : switches on and off as the unit maintains its internal temperature • Alarm Indicator (amber) : lights up when the unit’s internal temperature rises above -9°C. -
Page 10: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 11: Cleaning
Cleaning Defrosting Frost may build up in the freezer compartment after it has been used for a period of time. Scrape away the frost using a plastic scraper (included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 12: Maintenance
Maintenance Replacing the Light Bulb Ensure the power is switched off and the mains plug is removed from the power socket before changing the light bulb. Unscrew the 2 screws and remove the cover. Replace the old light bulb. Use an E14 type. Replace and screw the cover securely. -
Page 13: Troubleshooting
Troubleshooting Power Cut If you have a freezer thermometer, place it in the freezer where you can get easy access to it to read when the power returns. If the internal temperature is -9°C or less when the power returns, your food is safe. The food in your freezer will remain frozen for approximately 40 hours with the door closed. -
Page 14: Specifications
Specifications Model L200CFW14 / L200CFB15 Appliance Category Category 9 (Chest Freezer) Overall Dimension (H x W x D) 850 mm x 945 mm x 523 mm Frozen Food Storage Volume 198 L Defrosting Type Manual Defrost Climate Class N / SN / ST / T... - Page 16 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
