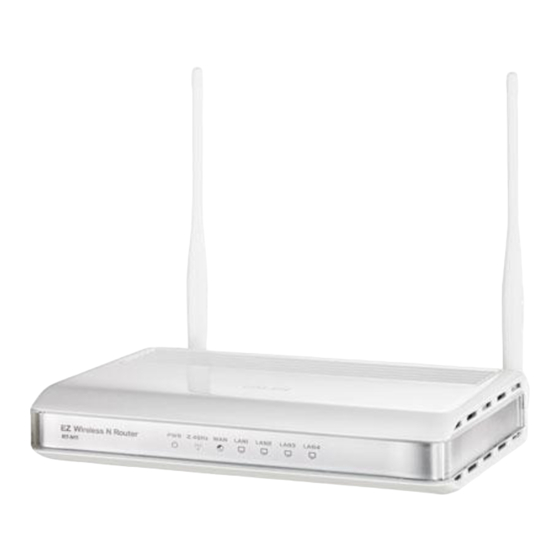

Asus RT-N11 User Manual

Ez wireless n router
Hide thumbs Also See for RT-N11:
Table of Contents

Advertisement

Quick Links

Download this manual
®
RT-N11
EZ Wireless N Router / EZ Wireless N 無線路由器
EZ Wireless N Router
User Manual
E3813 First Edition May 2008
e3188_WL520GU_GC_Manual.indd 1
5/22/08 2:50:12 PM

Advertisement

Table of Contents
loading

Related Manuals for Asus RT-N11

Summary of Contents for Asus RT-N11

  • Page 1 ® RT-N11 EZ Wireless N Router / EZ Wireless N 無線路由器 EZ Wireless N Router User Manual E3813 First Edition May 2008 e3188_WL520GU_GC_Manual.indd 1 5/22/08 2:50:12 PM...
  • Page 2 44370 Nobel Drive, Fremont, CA 94538, USA +1-510-608-4555 Web site usa.asus.com Technical Support Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 25, D-40880 Ratingen, Germany Telephone +49-2102-95990 +49-2102-959911 Web site www.asus.de Online contact www.asus.de/sales Technical Support...

  • Page 3: Table Of Contents

    RT-N11 EZ Wireless N Router User Manual Table of Contents ................2 1. Package Contents ................3 2. Connecting ADSL Modem and Wireless Router........3 1) Cable connection ................3 2) Status Indicators ................4 3) Wall Mounting Option.................4 3. Getting Started..................5 1) Wired Connection................5 2) Wireless Connection................5...
  • Page 4 RT-N11 EZ Wireless N Router User Manual Network Standard Compatible with 802.11b/g/n, 802.3, 802.3u, 802.1x, 802.11i, IPv4, CSMA/CA, CSMA/CD, ICMP Operating Frequency 2.4G ~ 2.483GHz Operation Channel 11 for N. America, 14 Japan, 13 Europe (ETSI) Ethernet Port WAN x 1, LAN x 4 RJ45 for 10/100 BaseT...

  • Page 5: Package Contents

    RT-N11 EZ Wireless N Router User Manual 1. Package Contents • RT-N11 Wireless Router x 1 • Power Adapter x 1 • Docking Stand x 1 • Utility CD x 1 • RJ-45 cable x 1 2. Connecting ADSL Modem and Wireless Router...

  • Page 6: Status Indicators

    Transmitting or receiving data (Through Ethernet Cable) 3) Wall Mounting Option Follow these steps to mount the ASUS Wireless Router to a wall: 1. Look on the underside for the two mounting hooks. 3. Tighten two screws until only 1/4'' is showing.

  • Page 7: Getting Started

    3. Getting Started The default settings of the wireless router may need change so as to meet your individual needs. Therefore, before using the ASUS Wireless Router, check the basic settings to make sure they all work in your environment.
  • Page 8 • DNS: 192.168.1.1 (RT-N11), or assign a known DNS server in your network. Enter the following address in your web browser: http://192.168.1.1 Defaults User name: admin Password: admin After logging in, you can see the ASUS Wireless Router home page. e3188_WL520GU_GC_Manual.indd 8 5/22/08 2:50:24 PM...

  • Page 9: Quick Setup

    RT-N11 EZ Wireless N Router User Manual 5) Quick Setup To start quick setup, click Next to enter the “Quick Setup” page. Follow the instructions to setup the ASUS Wireless Router. 1. Select your time zone and click Next. 2. ASUS Wireless Router supports...
  • Page 10 RT-N11 EZ Wireless N Router User Manual PPTP user If you are using PPTP services, select ADSL connection that requires username, herk036@adsl-comfort password and IP address. Fill in the username, password and IP address provided by your ISP into the fields. Click Next to continue.
  • Page 11 One Touch Wizard utility supplied in WLAN Card support CD for wireless connection. If you have installed ASUS wireless card together with its utilities and drives on your PC, click Start to launch the One Touch Wizard utility.
  • Page 12 RT-N11 EZ Wireless N Router User Manual 1) Select Connect to an existing wireless 2) One Touch Wizard searches and displays LAN (Station) radio button and click the available APs in the Available Next to continue. Networks list. Select RT-N11 and press Next to continue.
  • Page 13 ® WZC service ® If you use non-ASUS wireless card, you can set up the wireless connection with Windows 1) Double-click the wireless network icon on 2) Input the 10-digit keys you have set on the task bar to view available networks.

  • Page 14: Wireless Router Features

    1) Choosing an Appropriate Operation Mode 1) Setting up Wireless Encryption RT-N11 provides a set of encryption and authentication methods to meet the different demands of home, SOHO, and enterprise users. Before setting up encryption and authentication for RT-N11, contact your network administrator for advice.
  • Page 15 RT-N11 EZ Wireless N Router User Manual Encryption The encrytion modes supported by RT-N11 are: WEP-64bits, WEP-128bits, WPA- Personal, WPA2-Personal, WPA-Auto-Personal(TKIP. AES. TKIP+AES), WPA- enterprise, WPA2-enterprise, WPA-Auto-Enterprise (TKIP. AES. TKIP+AES), Radius with 802.1x WEP stands for Wired Equivalent Privacy, it uses 64bits or 128bits static keys to encrypt the data for wireless transmission.

  • Page 16: Setting Up Virtual Server In Your Lan

    RT-N11 EZ Wireless N Router User Manual Authentication The authentication methods supported by RT-N11 include: Open, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal (TKIP. AES. TKIP+AES), WPA-Enterprise, WPA2-Enterprise, WPA-Auto-Enterprise (TKIP. AES. TKIP+AES), and Radius with 802.1x. Open: This option disables authentication protection for wireless network.

  • Page 17: Setting Up Virtual Dmz In Your Lan

    This function is useful when the host plays multiple roles such as HTTP server and FTP server. However, in doing this, your network becomes less secure. Note: When the virtual DMA is enabled, the wireless/wired clients of the RT-N11 will not be protected. 1. Click in the NAT Setting menu.
  • Page 18 RT-N11 EZ Wireless N Router User Manual 3. After clicking Free Trial, you are directed to the homepage of www.DynDNS. org, where you can register and apply for DDNS service. Read the policy and select "I have read...". 4. E n t e r y o u r u s e r n a m e , e-mail address, password, then click Create Account.
  • Page 19 RT-N11 EZ Wireless N Router User Manual 9. After logging in, you can see this welcome message. 10. Select Services tab. 11. Click Add Dynamic DNS Host . 12. Enter the host name then click Add Host. 13. You can see this message when your hostname is successfully created.
  • Page 20 RT-N11 EZ Wireless N Router User Manual 14. Fill the account information of your wireless router. 15. Click Finish. 16. Click Save & Restart to restart the wireless router and activate the settings. 17. Verify whether DDNS is working. Click Start menu and select Run..Type...

  • Page 21: Setting Up Using Asus Utility

    RT-N11 EZ Wireless N Router User Manual 5. Setting up Using ASUS utility 1) Utility Installation for RT-N11` 2. Click Next to continue. 1. Click Install ASUS Wireless Router Utilities to run the setup installation program. 3. Click Next to install the utility in the 4.

  • Page 22: Ezsetup

    RT-N11 EZ Wireless N Router User Manual 2) EZSetup Click the EZSetup button in the utility. Note: Use EZSetup Wizard with one wireless client at a time. If the wireless client computer cannot discover the wireless router while in EZSetup mode, please shorten the distance between the client and the router.

  • Page 23: Troubleshooting

    RT-N11 EZ Wireless N Router User Manual If you need to configure the ISP settings for your wireless router, select Configure ISP settings, click Next and follow the instructions to complete the settings. Setup is complete, press Print/Save Wireless LAN Settings button for future reference.
  • Page 24 RT-N11 EZ Wireless N Router User Manual 3. Click Clear History. 4. Click Yes and then click the Connections tab. 5. Select the dial-up connection, and then click the Settings button. 6. Clear the Automatically detect settings and use proxcy server check boxes are not selected.
  • Page 25 The following are factory default values. If you push the Restore button on the back of the ASUS Wireless Router for over 5 seconds, or click the “Restore” button on the “Factory Default” page under “ System Setting”, the following default settings overwrite the old settings on your wireless router.

  • Page 26: Appendix

    RT-N11 EZ Wireless N Router User Manual 7. Appendix FCC Warning Statement conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 27 RT-N11 EZ Wireless N Router User Manual Testing for electric safety according to EN 60950-1 has been conducted. These are Protection requirements for electromagnetic compatibility – Article 3.1b Testing for electromagnetic compatibility according to EN 301 489-1 and EN 301 489-17 has Effective use of the radio spectrum –...
  • Page 28 RT-N11 EZ Wireless N Router User Manual To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
  • Page 29 RT-N11 EZ Wireless N Router User Manual b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
  • Page 30 RT-N11 EZ Wireless N Router User Manual designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
  • Page 31 RT-N11 EZ Wireless N Router User Manual 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
  • Page 32 RT-N11 EZ Wireless N Router User Manual Note: The WCN Net process of Windows Vista can only discover the deivce when button and then begin WCN-NET setup. 1. Connect the device to your PC and power on it. 2. Click Start >Network from the Vista desktop. The Network screen appears (as shown below).
  • Page 33 RT-N11 EZ Wireless N Router User Manual A screen prompts you to enter the PIN of your device. The PIN is located on the sticker posted on the device. 4. Enter the PIN in the PIN box, then click Next.
  • Page 34 RT-N11 EZ Wireless N Router User Manual A Passphrase is generated for WPA security for the network. 5. Click Next from this screen. If you want to create a different passphrase, click create a different passphrase for me. If you want to use security method other than WPA-Personal, click Show advanced network security options.
  • Page 35 RT-N11 EZ Wireless N Router User Manual Create a different passphrase Four security methods e3188_WL520GU_GC_Manual.indd 35 5/22/08 2:51:25 PM...
  • Page 36 RT-N11 EZ Wireless N Router User Manual 6. Click Next Close 2) Setting up the network sharing center Follow the steps below to set up a sharing center to allow the network users to share 1. Connect the device to your PC and power it on.
  • Page 37 RT-N11 EZ Wireless N Router User Manual 3. Click Set up a wireless router or network. e3188_WL520GU_GC_Manual.indd 37 5/22/08 2:51:33 PM...
  • Page 38 RT-N11 EZ Wireless N Router User Manual 3. Choose Set up a wireless router or access point, then click Next. 4. Click Next. e3188_WL520GU_GC_Manual.indd 38 5/22/08 2:51:38 PM...
  • Page 39 RT-N11 EZ Wireless N Router User Manual 5. In the screen that appears, type a network name in the Network name box, then click Next. A passphrase is generated for the WPA security. 6. Click Next. If you want to use security methods other than WPA-Personal, click Show advanced network security options.
  • Page 40 RT-N11 EZ Wireless N Router User Manual 7. Choose a security method and click Next. 8. A screen prompts you to enter the PIN for the device. Enter the PIN, which is located on the sticker posted on the device, then click Next.
  • Page 41 RT-N11 EZ Wireless N Router User Manual Next. A screen appears showing that the set up is complete as shown below. e3188_WL520GU_GC_Manual.indd 41 5/22/08 2:51:52 PM...
  • Page 42 RT-N11 EZ Wireless N Router User Manual 10. From the above screen you can choose to or, Save settings to a USB . The respective screens are shown below. e3188_WL520GU_GC_Manual.indd 42 5/22/08 2:51:58 PM...
  • Page 43 RT-N11 EZ Wireless N Router User Manual 11. When your computer, then select the drive from the Save settings to box and click Next. The settings starts to be saved into the USB drive. After the saving process is completed, a screen appears to instruct you to add computer or other devices into the network.
  • Page 44 RT-N11 EZ Wireless N Router User Manual e3188_WL520GU_GC_Manual.indd 44 5/22/08 2:52:02 PM...
  • Page 47 IC Statement...
