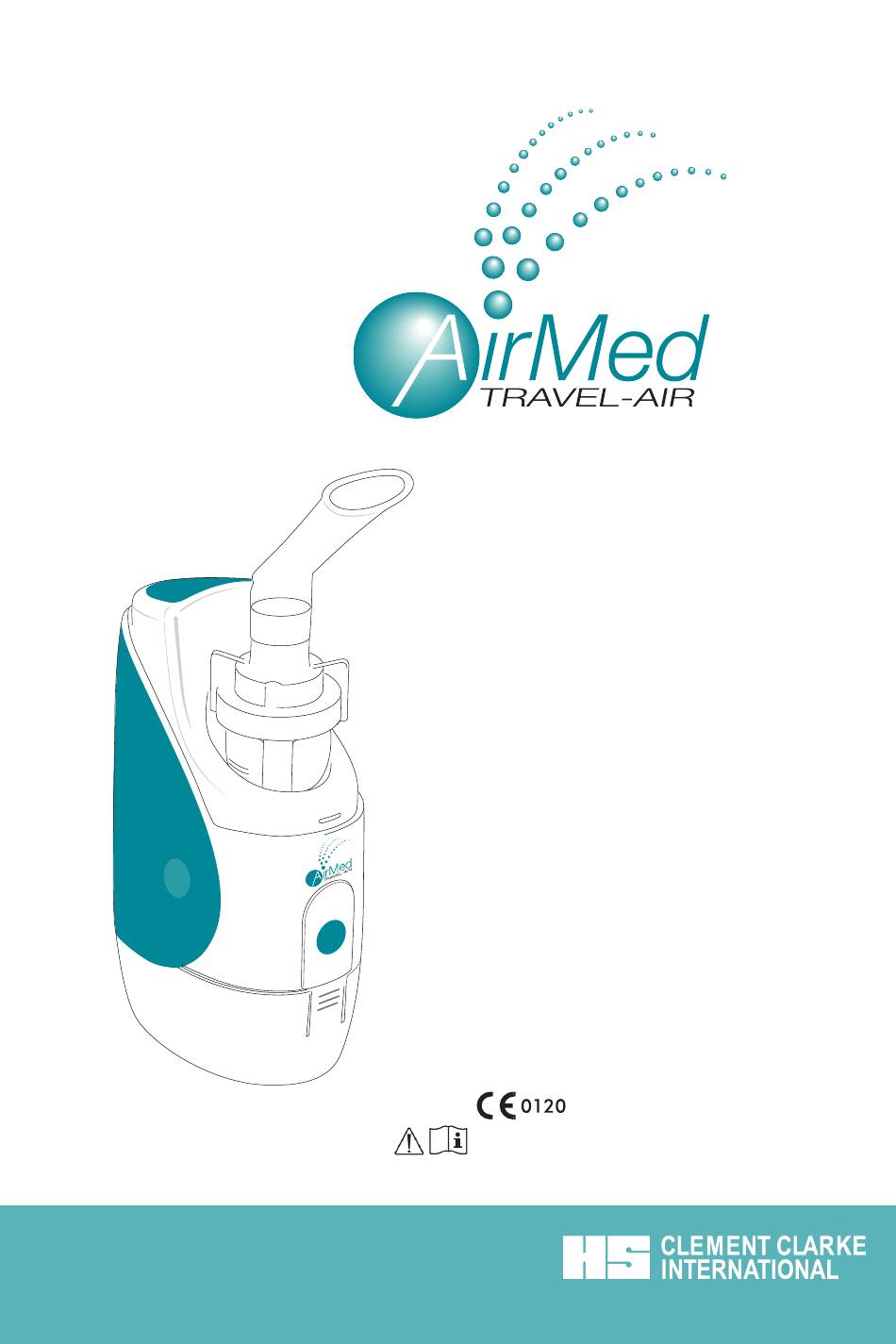

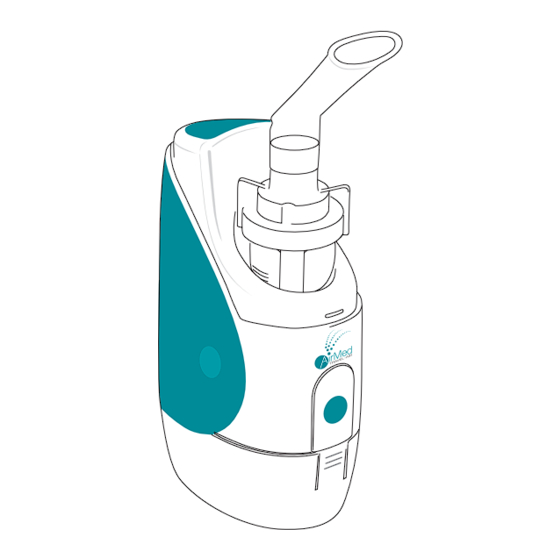

- Page 1 Portable Compressor Nebuliser Instructions Model no: CN03A Please read these instructions carefully before use Engineered for Life www.clement-clarke.com...
-
Page 2: Table Of Contents
Contents 1. Introduction ----------------------------------------------------- Page 2 2. Product Identification ------------------------------------------- Page 2 3. Safety and Regulatory Information ----------------------------- Page 3 4. Operating Your Portable Compressor Nebuliser ------------- Page 4 5. Notes on Nebuliser Care ----------------------------------------Page 5 1. Replacing your consumables 2. -
Page 3: Introduction
1. Introduction Thank you for purchasing the AirMed Travel-Air Portable Compressor Nebuliser. It is a compact medical device designed to efficiently deliver physician prescribed medication to the bronchial lung passages. With the correct care and use, it will provide you with many years of reliable treatment. This product is developed for the successful treatment of asthma, allergies and other respiratory disorders. -
Page 4: Safety And Regulatory Information
3. Safety and Regulatory Information Note: Read all instructions carefully before use. The following basic precautions are needed when using an electrical product: Caution: Failure to read and observe all precautions could result in personal injury or equipment damage. Product cautions: 1. -
Page 5: Operating Your Portable Compressor Nebuliser
4. Operating Your Portable Compressor Nebuliser Note: Prior to initial operation, the nebuliser should be thoroughly cleaned. 1. Place your Compressor Nebuliser on a flat and stable surface. Be sure that you can easily reach the controls when you are seated. 2. -
Page 6: Notes On Nebuliser Care
Child Year Pack : As above but with a child’s face mask. 3. Optional Accessories: Car Adaptor Spare Rechargeable Battery 6. Replacement Parts & Optional Accessories Replacement parts are available through your local retailer or they can be ordered directly from Clement Clarke International Limited. -
Page 7: Cleaning
7. Cleaning It is recommended that the nebuliser, driveline (make sure the driveline is dry before re-use), mouthpiece and/or mask be thoroughly cleaned with warm water after each use and cleaned with a mild detergent after the last treatment of the day. If your physician or respiratory therapist specifies a different cleaning procedure, follow their instructions. -
Page 8: Technical Specifications
8. Technical Specifications Power 12VDC from AC adapter or battery pack Current Approx. 1.67A MMAD 4 um Sound Level Approx. 60 dBA Medication bowl capacity 5ml (cc) Average Nebulisation Rate 0.2ml/min Compressor Pressure Range 30 to 36 Psi (210 to 250 kPa / 2.1 to 2.5 bar) Operating Pressure Range 8 to 10 Psi (50 to 70 kPa / 0.5 to 0.7 bar) Litre Flow Range... -
Page 9: Guarantee
9. Guarantee This guarantee is offered to you as an extra benefit and does not affect your statutory rights. CCI products are carefully designed, manufactured and inspected. CCI undertake to replace or repair any part found to be defective in material or workmanship subject to the following terms and conditions: The compressor and motor are guaranteed for 2 years from date of purchase, on condition that:... -
Page 10: Symbol Explanations
• The use of accessories and cables other than those specified by Clement Clarke Int. Ltd, with the exception of cables sold by Clement Clarke International Ltd. as replacement parts for internal components, may result in increased emission or decreased immunity of the device. - Page 11 Clement Clarke International Ltd Edinburgh Way Harlow Essex CM20 2TT UK Tele: +44 (0)1279 414969 Fax: +44 (0)1279 456300 email: resp@clement-clarke.com Part no: 3605915 Issue no: 3 10/12...
- Page 12 Trimmed size: 297 x 210 (A4), folded in half to 148.5 x 210mm (A5 booklet) Colour: 2 colour process: Pantone: 321, (C=100, M=0, Y=31 K=23) and Black. Material: 115gsm silk paper, cover - 250gsm Sample to be approved before initial production. Subsequent orders do not need a sample unless there is a change to the drawing...
