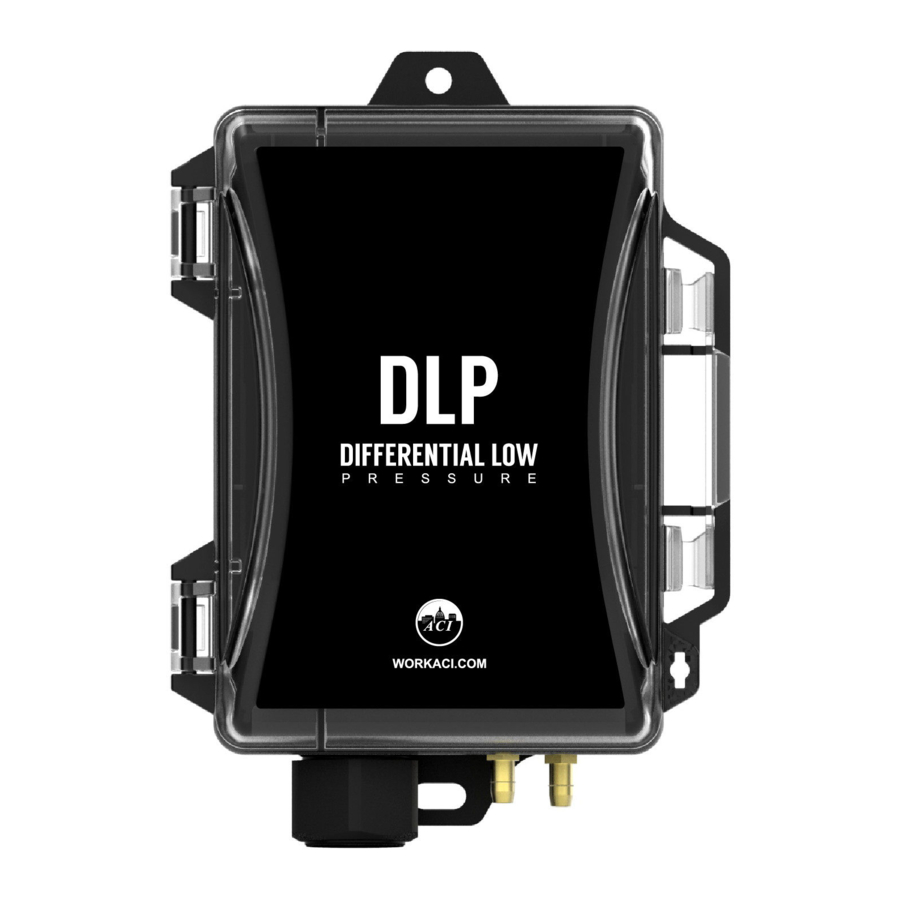

DLP
[CUSTOM RANGES]
Installation & Operation Instructions
PRECAUTIONS
• Do not switch pressure range and output
mode when power is on. Make sure to
power off the unit first, then set the DIP
Switches to the correct positions and then
power on the transmitter.
GENERAL INFORMATION
The DLP Series is based on a piezoresistive,
silicon sensing element which senses Differential
Pressure and provides an analog output. Field
selectable analog outputs include 0-5 and 0-10
VDC, or 4-20 mA which correlate to a uni or bi-
directional pressure range from 0-0.1" up to 0-30"
of water column, depending on your model
selection. Each unit is calibrated to one specific
range based on model number selection. The
range selection dipswitches are referenced on
Figure 9 & 10 p. 5-6 and should not be adjusted.
MEDIA
The DLP can be used to monitor the differential
pressure in any application that uses dry air or
inert gas.
MOUNTING INSTRUCTIONS
Find a suitable location for the enclosure. The DLP has 2 two mounting holes located on the top and
bottom flanges. Drill pilot holes for the (2) #8 x 3/4" self-drilling screws(supplied). Use the enclosure

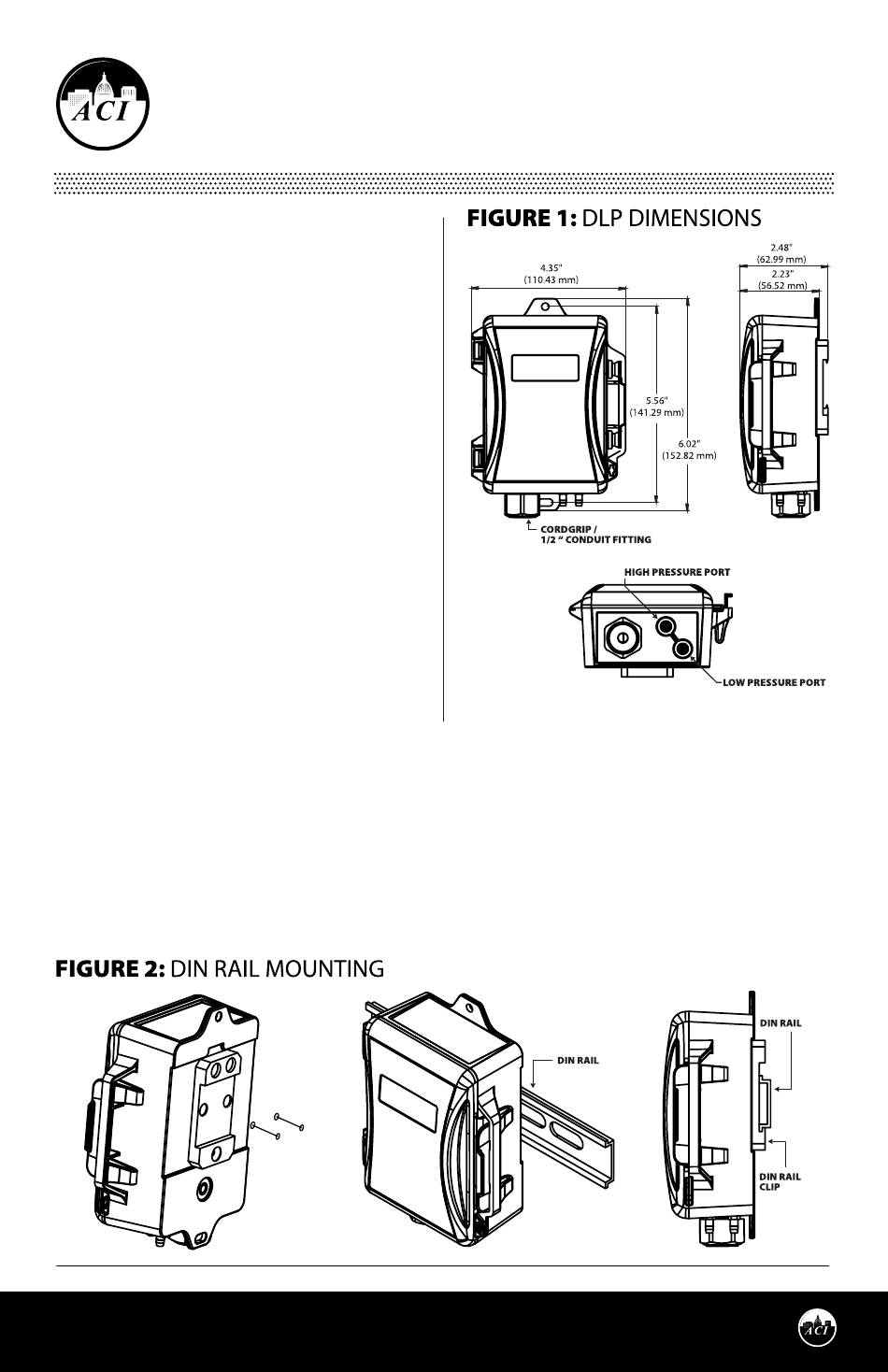

flange as a guide, or use the dimensions listed in Figure 1. Mount the unit vertically with the brass fittings
pointing towards the ground. This ensures that any condensation that may form in the tubing does not
have an effect on the pressure sensor. If mounting the unit horizontally, a slight zero shift may occur and
care must be taken to prevent moisture from building up in the sensor.
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com
Page 1
Phone: 1-888-967-5224
Website: workaci.com
-H
-L
Version: 1.0
I0000977
