INTERFACE SERIES
Installation & Operation Instructions
AIM1.1
GENERAL INFORMATION
The AIM1.1 optically isolates an analog (voltage or
current) input signal from its corresponding
output signal. The factory calibrated output is
linear and proportional (1:1 ratio) to the input
signal. The AIM1.1 will accept a 0 to 5 VDC, 0 to 10
VDC, or 0 to 20 mA input span and output any one
of those same ranges. It requires one external 24
VAC isolation transformer with oating secondary
for power and has an onboard 24 VAC isolation
transformer to supply the isolated output.
MOUNTING INSTRUCTIONS
Ground yourself to discharge static electricity
before touching any electronic equipment, as
some components are static sensitive. The
interface device can be mounted in any
position. If circuit board slides out of snap
track, a non-conductive "stop" may be
required. Use only ngers to remove board
from snap track. Slide out of snap track or
push up against side of snap track and lift that
side of the circuit board to remove. Do not
ex board. Do not use tools.
WIRING INSTRUCTIONS
PRECAUTIONS
• Remove power before wiring. Never connect or disconnect wiring with power applied.
• When using a shielded cable, ground the shield only at the controller end. Grounding both ends
can cause a ground loop.
• This device needs to have its own Isolated Transformer. This transformer cannot be
connected/or shared with any other device. It is recommended you use an isolated UL-listed class
2 transformer.
• All wiring must comply with all local and National Electric Codes.
FUNCTION SELECTIONS
STEP 1) INPUT TYPE
Set jumper block J1 for 0 – 5 Volts, 0 – 10 Volts, or 0 – 20 milliamps input signal. See Figure 3 (p. 2) for
details.
STEP 2) OUTPUT TYPE
Set jumper block J2 and J3 for 0 -5 Volts, 0 – 10 Volts, or 0 – 20 milliamps output signal. See Figure 3
(p.2) for details.
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com

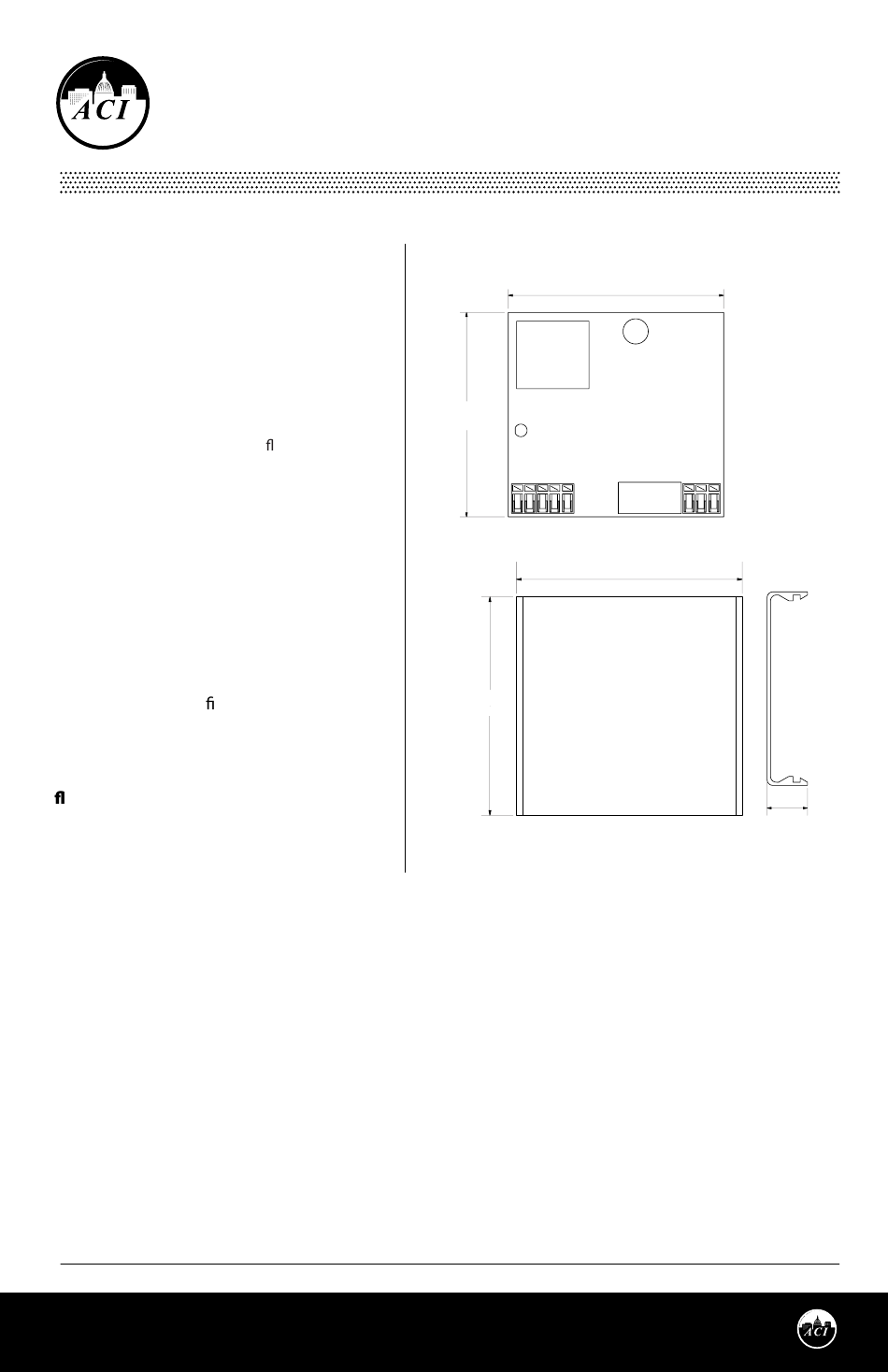

FIGURE 1: DIMENSIONS
3.43" (87.00mm)
3.25"
(82.55mm)
3.45" (87.63mm)
3.88"
(98.55mm)
Page 1
Phone: 1-888-967-5224
Website: workaci.com
0.70"
(17.78mm)
Version: 8.0
I0000898
