Aviosys IP Power 9655 Series User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

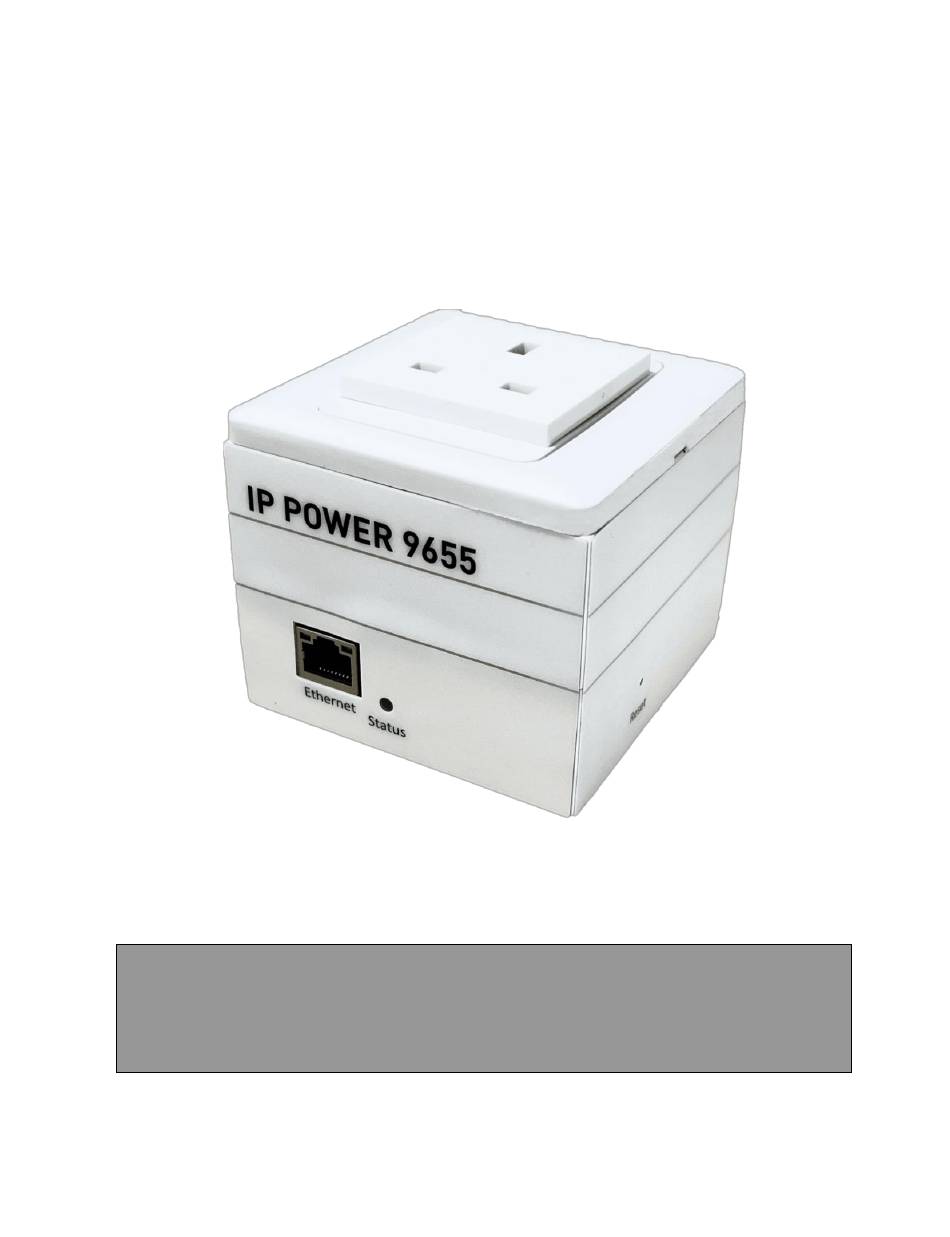

IP Power 9655 series
User Manual
Version: V1.00
Date Released: November. 2024
1
bticomputer.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP Power 9655 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aviosys IP Power 9655 Series

Summary of Contents for Aviosys IP Power 9655 Series

  • Page 1 IP Power 9655 series User Manual Version: V1.00 Date Released: November. 2024 bticomputer.com...
  • Page 2 Warning: Any changes made to this equipment without permission may cause damages to the device IMPORTANT NOTICE: 1. IP Power 9655 was designed for indoor use, we carry no responsibility for possible damages caused by outdoor use, especially in the rain. 2.
  • Page 3 Table of Content 1. INTRODUCTION ....................5 2. PRODUCT INFORMATION ................6 2.1 Features ................................. 6 2.2 Specification ................................7 2.3 Minimum System Requirements ......................... 7 2.4 Package Contents ..............................7 2.5 Interface ................................. 8 3. SETTING UP YOUR DEVICE ................9 3.1 Before Starting ..............................
  • Page 4 5. OTHER WAYS TO CONTROL ..............49 5.1 CGI HTTP Commands ............................. 49 5.2 Telnet Control ..............................51 6. FAQ : ......................53 bticomputer.com...
  • Page 5 1. Introduction IP Power 9655 is a new generation of the Power Distribution Unit (PDU) & Remote Power Control (RPC) system which add "Active Surge Filter” in the hardware design and make the system with higher grade stability. With embedded web server and HTTPS protection, 9655 supports higher grade security as working on Internet.
  • Page 6 8. Time Schedule for Outlet ON, OFF or Reboot and for WOL & SOL 9. Eventlog: save the log info. 10. Specific software developed by Aviosys and provided free of charge - IP Power Center (IPC) - control multiple IP Power under one WIN software - CNT ( Cross Network Technology ) : to control IP Power by IPC without port forwarding , simply Plug &...
  • Page 7 2.2 Specification ⚫ Power input: 100 ~ 240VAC ( C14 in ) , MAX 10A / 240VAC or 15A/100VAC ⚫ Maximum output: 10A / 240VAC or 15A / 100VAC ( US model ) ⚫ Dimensions: 86 x 86 x 80 mm ( L x W x H ) ⚫...
  • Page 8 2.5 Interface Outlook Left to Right: Ethernet LAN 10/100 Mbps network for Internet LED (status) Display the outlets as ON ( Green ) or OFF ( RED) Reset As power on status, keep pressing the reset button for 5 seconds and then release after 1 short beep. Then there are 2 beeps sound which show the reset Successfully.
  • Page 9 3. Setting up your device 3.1 Before Starting *Before setting up the device make sure of the following: 1.) All the package contents are all included if anything is missing please contact the dealer where the device was purchased from. 2.) Check the power input cable is working correctly.
  • Page 10 3.3 Software Installation www.aviosys.com/cd Please move to . The note with this online CD link comes with the package. IP Power Software: (1) IpEdit (Required) (2) IP Power Center *( For multiple IP Power devices control purpose ) Please download the IPC-98 series, IPC-98 series support IP9655 to operate.
  • Page 11 If you already have IPEDIT, please check your current version, 9655 only support version 1.2.8.2 above. You can check your IPEDIT version by clicking the “alt+A”. If not, please move to the Aviosys official website download the latest version. IP Power 9655 Default Login / Password Default IP: 192.168.1.100...
  • Page 12 Notice : If can’t see the IP in the area of Local Devices of IPEDIT.exe. Please check the following situation 1. Boot up successfully: Please unplug and plug in the power to the 9655 and check if there are 1 short beep after 8~10 seconds. This beep means the device boot up successfully. If not, the device may have issue.
  • Page 13 2.) Press the “ Rescan ” button to see if changes have been made. 3.) Double click on the device in the local device section and a web browser(Chrome recommend) with the device login will pop up. 4.) Type in the default Login and IP Address to enter the device. Default Login: admin Default: 12345678...
  • Page 14 3.3.2 Internet Setup To connect the IP Power 9655 on Internet, there are two ways ⚫ Setup Port Mapping / Port Forwarding in your router. Please check your Router owner’s manual. 3.3.3 Using IP Service IP Service is a function which allows user to search for the device easily without having to remember lengthy complicated IP address.
  • Page 15 4.) Find user device and double click on the screen and a web browser window will pop up connecting to user device. *User device must be Port Forwarded for the login screen to appear. EX: The 9655 device name as IP9655, and user can search the device easily: 5.) After user have connected to user device, type in the Login and Password for user device.
  • Page 16 Multiple IP9655 or others 9655 devices connect in the same PC. (2-1) Find your device’s MAC address, which is located on the side of your device. MAC example: 003255000650 (2-2) Open any web browser (recommend Chrome, Edge) (2-3) In the address bar, type “ ip9655XX.local ”, where XX is the last two digits of your 9655 MAC address.
  • Page 17 4. Web Interface Once the 9655 has been setup correctly, log into the device. The default Username and Password for the 9655 Username: admin Password: 12345678 The Control Console The right side Menu of the Web Interface control the functionality and setup settings of the IP Power 9655. The IP Power 9655 Console consists of four main sections which will be explained in details below.
  • Page 18 ◼ Disconnect notice: *Disconnect Notice: If your IP9655 suddenly lose the connection, IP9655 webpage will display “Disconnect !!” in the bottom left corner. The webpage will be frozen in disconnect status, any action will not be available until you reload the webpage and re-login IP9655. The following situations may cause a disconnect: (1) Network issue: Check your PC internet status, it might be your internet connection lost causing the IP9655 disconnect.
  • Page 19 4.1 Top Column 4.1.1 Device name This section display the device name. You can change the device name here: Control → IO Control → Config → Device name, Change name “ IP9655 ” as “ Enjoy 9655 ” After apply the change, if your device name does not change, please click “ Refresh ” of the webpage to get the display update.
  • Page 20 4.1.2 Time In this section, it display Time at Year – Month – Date Hours : Minutes : Seconds. To setup the Time, Please go to “ Network → NTP ”, and press “Apply” to save the new setting . Time - Manual setting or sync with NTP Server and then click “Apply”(2)
  • Page 21 4.2 Control The IO Control Section allows you to directly / automatically control the outlets of the 9655 as well as schedule Daily, Weekly, and Monthly power cycles. There are 3 sections: IO Control, Schedule, PING 4.2.1 Control There are 2 setting pages in this Section. One is “ Power Control ” and another one is “ Config ” A.
  • Page 22 1. Toggle switch: Activate port ON or OFF directly by pressing the button. For example: The following pictures display that Power off switch to on. 2. Power Delay: It’s the delay function which works on the ON/Off buttons for the manual control at the interface of the webpage.
  • Page 23 For example: ( sec = seconds ) Original Outlet as “ OFF “ , select final status as “ OFF “ & fill 20 sec. After press “ Apply ” button, the outlet will turn ON for 20 seconds and then turn OFF. OFF →...
  • Page 24 B. IO Control config: Move to the IO control and click the Config. In this page, user can setup Name of the port and device, default power status, notification, WOL&SOL trigger relay and Current Limit. Name of Device and power: User can name each power by click the name above the power button.
  • Page 25 Current Limit: This feature allows setting an Amp limit, which will turn off the I/O control of the IP9655 device once the limit is reached. Before shutting down, a "Beep" sound will notify the user. If the number of notification is reached, the I/O control will be forcibly turned off. Notification times and Beep sound is available to settings.
  • Page 26 4.2.2 Schedule In this section, user can see the setting schedule list first up to 8 rules. To setup each schedule, please press “ Schedule Setting ”, then user can get the “ Schedule List “ page as following : Please click the “No.X“...
  • Page 27 The schedule allows you to control the power outlet or turn ON / OFF/ RESET at assigned time Adding a Scheduled Event 1. Select the Action Duration: There are 3 setting - Once, Every Day, Every Week Once: Example: Select the date 2024/8/16, time table: 8:00 a.m, task action: outlet 1 on...
  • Page 28 Every Week: Weekly Choice: You can choose single day, two days or more, even a whole week. Pic: Choose two days Pic: Choose every single day(a week). Example: Select two days (Monday and Wednesday), time table: 10:00 a.m, task action: outlet 1 on 9655 will trigger the outlet 1(on) at 10:00 a.m every Monday and Wednesday.
  • Page 29 2. Take example as “Once” settings, select a Specific Date Range where the device will repeat the desired actions during the time specified. 3. Select the Time table. bticomputer.com...
  • Page 30 4. Choose the Action: Enable power by clicking in the Task Action small black square, and select one from the power action of OFF/ON/Sys.Reboot/Nop/Opposite/Cycle on/Cycle off as you need. ⚫ ⚫ ⚫ Sys.Reboot: Reboot the device system. ⚫ Nop: Disable the task, no operation. ⚫...
  • Page 31 “Deactivated”(1) first, it will turn to “activated” mode Once the scheduler has been Set Up, click the then hit the “Group Apply”(2) button. If you don’t click the Deactivated first, only click the Save, it only save your setting in the schedule *Note: but won’t comply the setting.
  • Page 32 4.2.3 Ping The Ping function allows the device to Ping an IP Address automatically to act as a watchdog to make sure the device getting Ping and working properly. Please Click the button to switch between “ Ping Setting ” & “ Ping List ” . User can hide the setting section by press “ Ping List ” There are 4 NO.X for Ping only, each rule can setup the outlets.
  • Page 33 These are the sections for each ping setting below: 1. Setting Rule Numbers: User can click to select different rules numbers in the right of “Ping list”, “ No.X ” as following pictures. 2. Global constant variables: Click the Global constant variables box first, then the Global constant variables will appear. ⚫...
  • Page 34 2-1 Input the IP Address ( ex: 122.116.123.138) or Host - web address (ex: www.google.com) user would like to Ping. 2-2 Ping Failure Threshold: Setup the times of Action after Ping Failure. Set number maximum is 99 counts. Click the icon first, then the Ping Failure Threshold will appear. 2-3 Delay: you can setting the delay time to turn on/off, cycle on/off the power.
  • Page 35 2-4 Job Action: Setting your ping action. Click Job Action(1) first, then Task option(2) will appears. 2-5 Job finished retry: (1) Stop ping: The device will stop the action after one times ping. (2) Continue X times. Depends on Global settings. (Retry job times, P.33). Recovery mode: This function prevents the device from causing damage to other outlets connected to it when unlimited ping attempts are set and the device still cannot connect to the IP.
  • Page 36 4.3 Network There are 2 sections in this port: Setup and NTP LAN Network Settings: The network status is connected by ether cable with RJ45 connector. There are 2 network connection way: Static IP / DHCP. *If you want to switch different connection between Static and DHCP, please move to setup setting → DHCP.
  • Page 37 4.3.2 NTP In this section, user can setup the date, time, current time, time zone, NTP server and sync with NTP to get the time synchronization. (1) Change date and time manually To change your date and time, click the calendar icon(1) first, then the calendar and time(2)
  • Page 38 4.4 System Setting 4.4.1 Management In this section there are 3 settings: Password, Import/Export Config file and Https Certificate. 1. Account management: (1-1) Passwordless authentication: You won’t need to enter 9655 through user and password when activated. bticomputer.com...
  • Page 39 (1-2) Change User Name: (1-3) Change Password: ◼ Please amend the password as number or English character from 1 to 14 characters. Do not use special symbol like “ ” ; ： ~ ! @ # $ % ^ & * ( ) This icon indicates that the password is hidden, if you click the icon two times, it will display the icon...
  • Page 40 4.4.2 E-mail ⚫ Email Setting: User can get e-mail advice as one of the following situation happen: Receive E-mail as ON/OFF status change in each output. Forgot Password Function: 9655 will provide a temporary password through email. To know how it works, please refer to P.41. Notice : To send out the e-mail successfully, please double check the setting of user DNS.
  • Page 41 ◼ Forgot password function: If you already complete setting your mail config and click the “Apply” (config pic), the forgot password function will activate automatically. config pic: To see how the forgot password works, please click log out. You will see the login webpage will appears the “Forgot Password”.(Pic 1) Click the “Forgot Password”, it will appears the “e-Mail Password verification”.(Pic 2) Enter the password verification you set in the “Mail config”.
  • Page 42 When you go to your email webpage, you will receive an email from IP9655. It provides your username and temporary password. The password is generated by 9655 for you to log in. After you login, 9655 webpage will directly move to Account management, and your old password appears.
  • Page 43 4.4.3 IPService In this section, user can setup: IP Server & CNT ( Cross Network Technology ) , CNT ( MQTT ) A. IP Service & CNT Setting : The IP SERVICE allow 9655 to be accessed easily on the internet by our IP Power Center or IP EDIT.
  • Page 44 Please refer page #14 for the function of IP Server B. CNT ( MQTT) – Enable the CNT(MQTT), you can use your mobile phone to control the device. - 44 - bticomputer.com...
  • Page 45 4.4.4 Eventlog In this section, user can get the 9655 system operation information and send the information to assign Server IP address ( not support name ). The system information will be deleted after 9655 device power reboot. The event log also supports recording the last power down (cut), allowing the user to be informed about its status.
  • Page 46 Power section: It will display a graph of your power on/off history. System Section: It will display the 9655 device system working log history. Not including other history(e.g. power on/off) - 46 - bticomputer.com...
  • Page 47 There are five sections: Internet upgrade, Local upgrade, Factory reset, Reboot, Bootload Ver (1) Internet upgrade: (1-1) Internet upgrade: Update by the AVIOSYS official server, when the update news released, you can click the “Firmware Update” to update without any procedure. *Note: Internet upgrade requires the network to update the firmware, please make sure your 9655 is connect with the internet if you use choose the OTA to update.
  • Page 48 The firmware update function only support in LAN connection. Before update, please DO READ THE HI-LITE MESSAGE BLOW: It takes about 1 minute to upload upgrade flash and be patient please. Caution! A corrupted image will hang up the system. To update the 9655, please follow the instruction below to prevent anything happens like update incomplete or hardware disable which may be caused by wrongdoing of updating: 1) Turn off all chat programs including ( Skype, FB.
  • Page 49 5. Other ways to control Besides web page control, there are several ways to control the outlets: by HTTPS/CGI command. 9655 also support SNMP (MIB). Please check page #36 to check and enable the function. 5.1 CGI HTTP Commands CGI Commands allow you to easily integrate the 9655 with other systems and programs. Please read the instructions carefully on how to use the Http:// Commands To use http:// Commands open up a web browser and type in the command that you would like to use.
  • Page 50 2.3 To get the status of power on/ off： getpower http://192.168.1.18/set.cmd?user=admin+pass=12345678+cmd=getpower Output：P61=1 2.4 Reboot http://192.168.1.18/set.cmd?user=admin+pass=12345678+cmd=reboot Output：Reboot OK 2.5 To get the current value： getcurrent http://192.168.1.18/set.cmd?user=admin+pass=12345678+cmd=getcurrent Output：Current value : 0.00A 2.6 To get the temperature value： gettemperature or gettemp http://192.168.1.18/set.cmd?user=admin+pass=12345678+cmd=gettemperature Output：Temperature value : 27.7C/81.9F - 50 - bticomputer.com...
  • Page 51 5.2 Telnet Control Please enable the telnet function in “Network “ → “ Setup ” Or Check page #36 to check and enable the function. Command: help - 51 - bticomputer.com...
  • Page 52 command:setpower command:getpower command:getcurrent command:gettemp command:network command:date command:ver * Reboot : The " reboot " command gives you to reboot the IP Power - 52 - bticomputer.com...
  • Page 53 6. FAQ : Q1: Why can't I see the 9655`s IP address in IPEDIT.exe? Ans.: Please check the PC you use is under same LAN/ network / segment as 9655. Please turn off some Anti-Virus / online chatting software. If there are more than 1 network card, include dynamic network card, please disable one and make sure the one you selected is under the same segment with IP9655.
