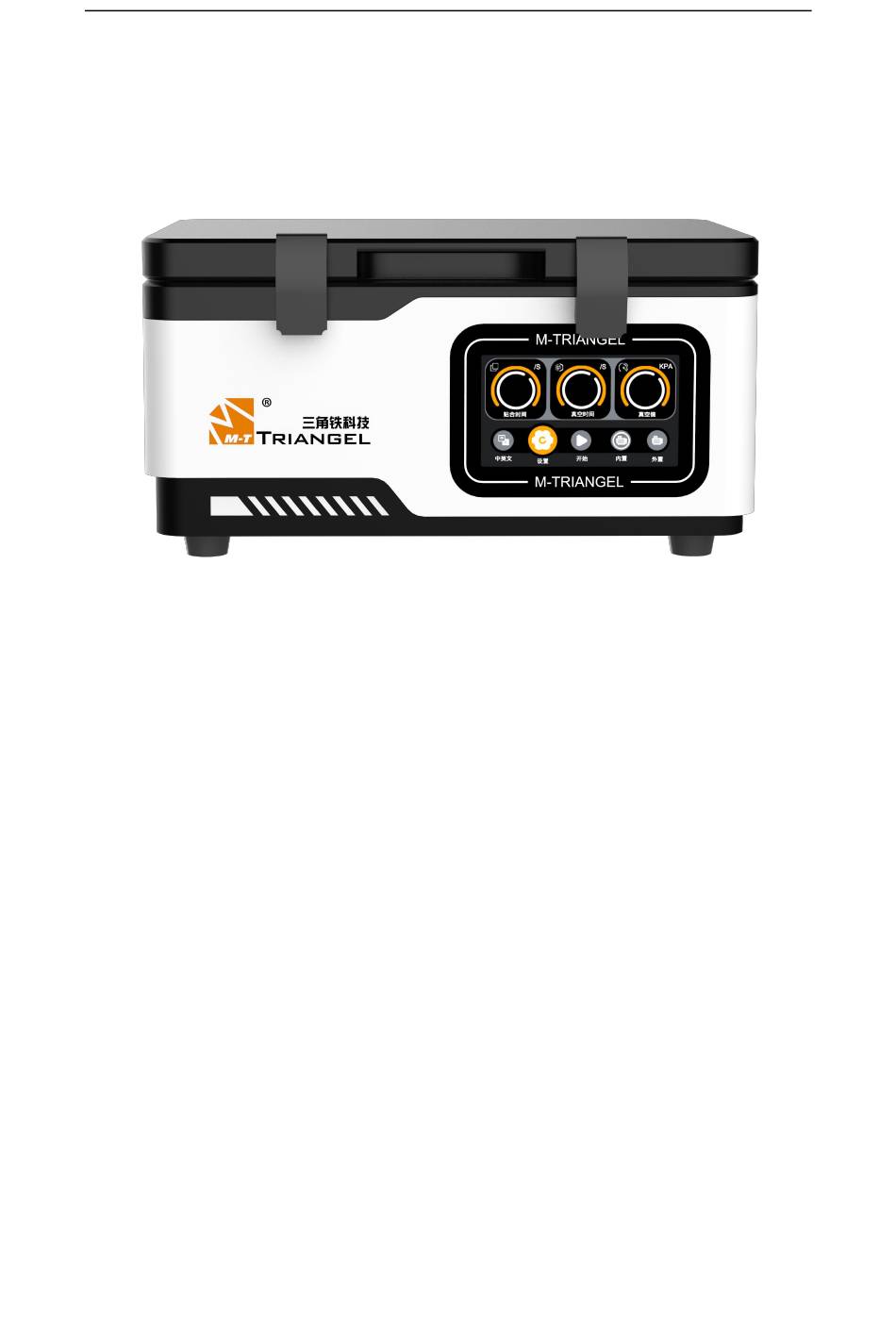

- Page 1 MT-13 Airbag all-in-one Laminating Machine User Manual 1.safety rules--------------------------------- 2.Specifications------------------------------- 3.Steps for usage ---------------------------- 4.devices care--------------------------------...
-
Page 2: Safety Rules
1. Safety Rules For your personal safety, read this manual carefully. Familiar with the application and limitations of the machine, as well as the potential hazards associated with the machine. A. Please read the instructions carefully before using the device. B. - Page 3 1. After turning on the machine, set Chinese and English settings, and press the Chinese and English keys to switch. 2. Press Parameter Setting to set device parameters.
- Page 4 3. The factory default parameters are vacuum time: 45 seconds and bonding time: 45 seconds. *No special requirements, please do not adjust the parameters without authorization, if you need to change the parameters, please contact the manufacturer after sales. (2).Pressure screen and matters needing attention...
- Page 5 1. Use the screen positioning mold to carry out preliminary positioning and bonding of the liquid crystal and the cover plate. *Note that after the cover and the LCD are closed, do not squeeze or press. Usually there will be a hollow in the middle of the bottom of the mold. Just press and hold the middle of the cover with your fingers, and then tap the LCD in the middle of the bottom of the mold to make the middle stick That's right, this is extremely important!
- Page 6 sponge pad, so as to completely avoid the cable. Pressure leads to waste screen. (If you have other questions that you don’t understand, you can contact the after- sales technicians to answer them for you. 3. Select built-in or external, press the start button to start the automatic screen pressing.
-
Page 7: Working Mode
⑸Usually, the air in the cabin can be sucked out within 30 seconds of vacuum time, and then the airbag rises slowly, and the bonding time is 45 seconds. ⑹ After the screen is pasted, a screen measurement is required 3. - Page 8 Connect the vacuum pump power plug and vacuum pump tube. Press the start button, the device can start to work, the machine starts to vacuum, runs to the set lamination time, the vacuum value jumps, at this time the equipment starts lamination, when the set lamination time is reached, the equipment starts to deflate, and the vacuum value returns to zero , the fit is complete.
- Page 9 devices care Maintenance item Precautions for maintenance Cavity Check whether there are sundries, and if so, please clean them up in time. Equipment life When the machine is not in use, the power must be turned off to make the equipment last longer Cooling net Regularly clean, keep clean, strictly prohibit blockage...
