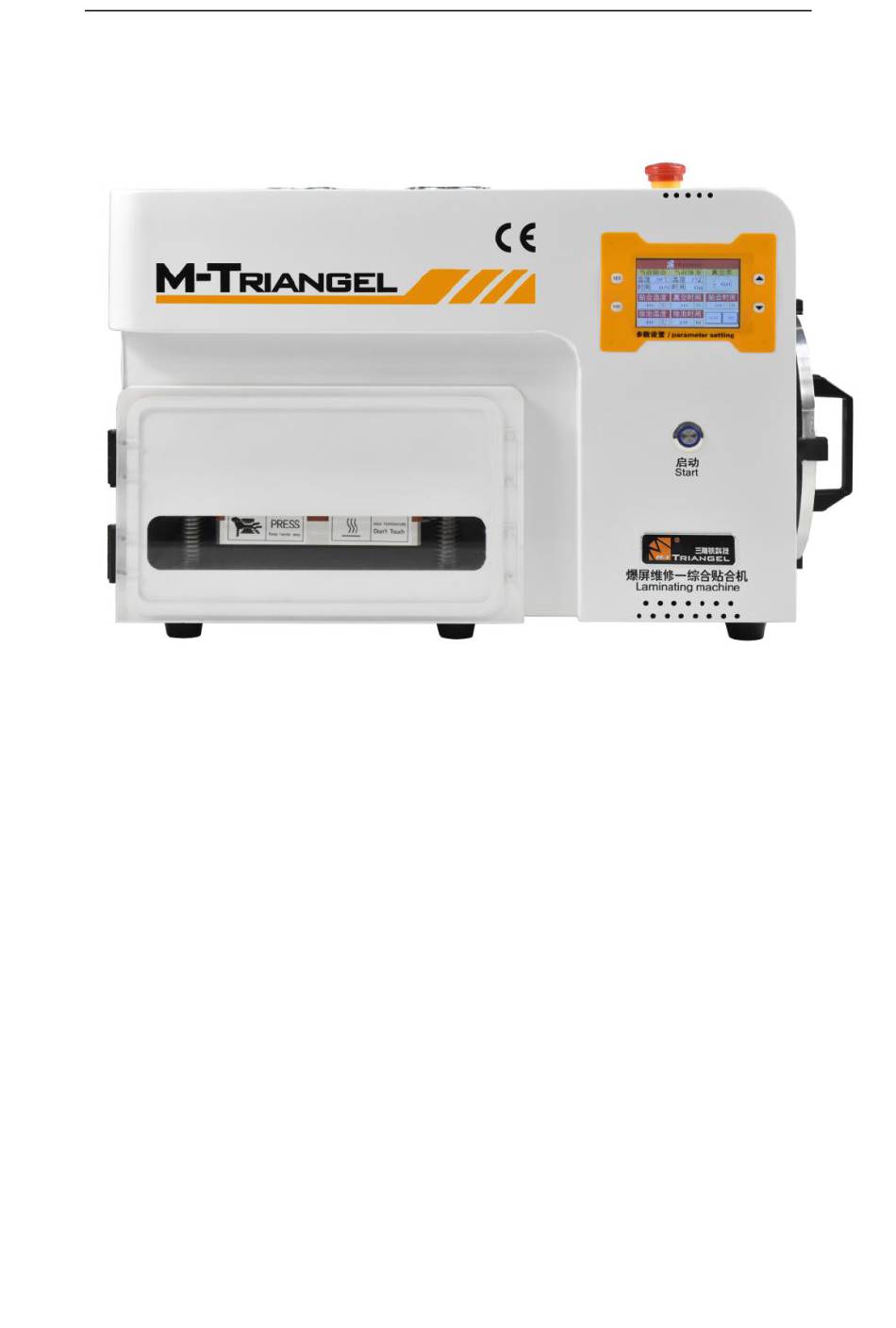

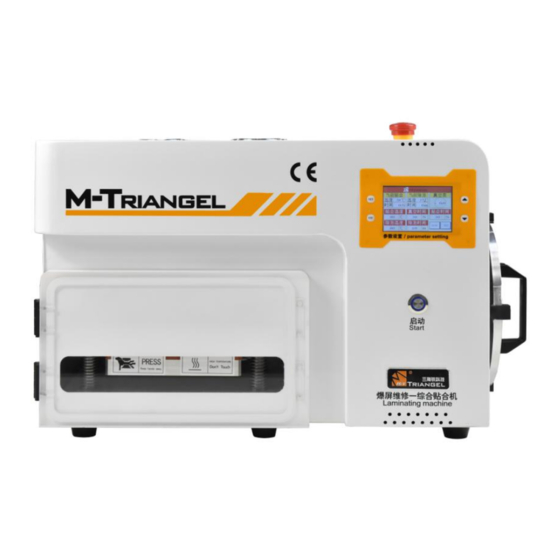

2017 New MT Laminator with Debubbler
Operating Instruction
1.Safety Rule -------------------------------------
2.Specification -----------------------------------
3.Operation --------------------------------------
4.Maintenance -----------------------------------
Advertisement
Related Manuals for M-Triangel MT-102
Summary of Contents for M-Triangel MT-102
- Page 1 2017 New MT Laminator with Debubbler Operating Instruction 1.Safety Rule ------------------------------------- 2.Specification ----------------------------------- 3.Operation -------------------------------------- 4.Maintenance -----------------------------------...
-
Page 2: Specification
1.Safety Rule For your own safety, please read this manual carefully. Please familiar with the application and limitation of the machine, as well as the relevant potential risk. A. please read this manual carefully before using the machine. B. Please keep the grounding good, bad grounding may result in equipment damage or endanger personal safety. -
Page 3: Operation
*Attention: Please check the filter every half month, to make sure there is no water inside. If not, click start button and then click the bottom of the glass jar to discharge water. 3.Operation 1) Before Working: Step1: Plug in and open the power switch, clockwise rotate the red emergency stop button half-circle until it automatic pop-up. - Page 4 2) Laminating: Step 1: Aligning the LCD and the new glass by alignment mold. *Attention: Don’t press after aligning, just touch the middle of the screen lightly and take it from the hollow of mold. This is extremely important. Step 2: Put the screen on the plate, and put them into the machine. Close the door.
- Page 5 Step 3: Click Start button for full automatic laminating. *Attention: Make sure the red emergency stop button was pop-up. *After starting, it’s normal that the vacuum data on the right of screen will up. If not, please contact technician for help. * Effect of vacuum released will be changed by altitude, the data above -88 is normal.
- Page 6 3) Defoaming: Step 1: Use spanner to open the defoaming door. *Attention: Before open the defoaming door each time, please make sure there is no gas inside the cylinder. Check ways: the pressure goes to zero. Step 2: Put screen inside the cylinder and close the door by spanner.
- Page 7 *Attention: Each time can put more screens. Don’t close the door too tight by spanner or it will lowering the life of screws. Screw them by normal strength, watch the pressure during defoaming, no air leakage. Step 3: Click start button to defoaming, and wait until it automatic release the air to finish defoaming.
- Page 8 (*Attention: Before open the defoaming door each time, please make sure there is no gas inside the cylinder. Check ways: the pressure goes to zero.) 4.设备保养 Items Notes Cylinder Keep clean, no clutter inside. Life of machine For keep it long use, turn off the power when not in use.
