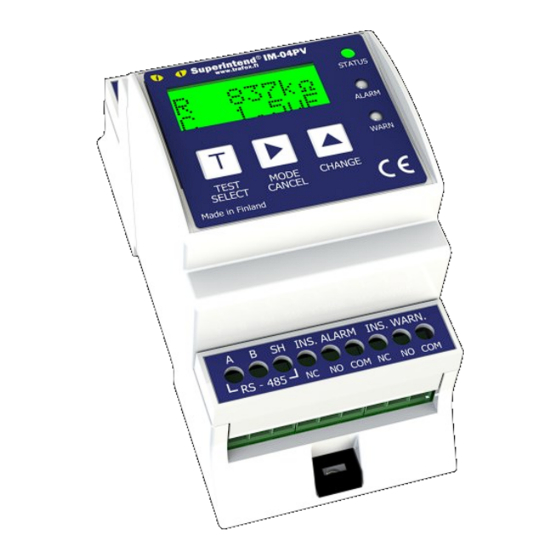

SUPERINTEND IM-04PV
IMD Insulation Monitoring device for non-grounded (IT) electrical
networks for photovoltaic applications
Instructions for installation and use v10.571
AC/DC
PV
Superintend IM-04PV Manual v10.571 English
Rights to modify the content reserved
© Copyright Muuntosähkö Oy - Trafox 3.2.2022
Advertisement
Table of Contents
Related Manuals for Trafox SUPERINTEND IM-04PV
Summary of Contents for Trafox SUPERINTEND IM-04PV
- Page 1 SUPERINTEND IM-04PV IMD Insulation Monitoring device for non-grounded (IT) electrical networks for photovoltaic applications Instructions for installation and use v10.571 AC/DC Superintend IM-04PV Manual v10.571 English Rights to modify the content reserved © Copyright Muuntosähkö Oy - Trafox 3.2.2022...
-
Page 2: Table Of Contents
ERRORS ...................... 16 MODBUS RTU REMOTE CONTROL ..............16 TECHNICAL SPECIFICATIONS ................19 IM-04PV UNIT ....................19 HVC-15.100 UNIT .................... 19 HVC-15.1000 UNIT ..................20 HVC-15.2000 UNIT ..................20 MECHANICAL DIMENSIONS ................21 © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... -
Page 3: Instructions
Such sections are marked with the symbol shown below. A symbol indicating possible danger. A description of the symbol may be placed on the device or provided in the instructions for use. Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... -
Page 4: System Description
The IM-04PV unit comes with the connections shown in the following table. The shaded parts are optional and are installed as needed, while installing the other parts is mandatory. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... - Page 5 Protective earth, to be connected to the earthing circuit connector Connection 1 to IM-04PV Connection 2 to IM-04PV Connection 1 of the network to be monitored; Max 1081VAC/1500VDC Connection 2 of the network to be monitored; Max 1081VAC/1500VDC Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi...
- Page 6 Figure 1. System connection. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
-
Page 7: Rs-485 Network Connection
When needed, set the Modbus address (SETUP→MB Addr). • If needed, enable the automatic alarm acknowledgement (SETUP→AutoRst). A more detailed description of the configuration is provided in the Manual section “SETUP menu”. Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... -
Page 8: Use
PE conductor. These generate a low current that travels through the insulation resistance and capacitance to be measured. The insulation resistance and capacitance are calculated by FFT analysing the current and then measuring the amplitude and phase. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... -
Page 9: Menu Structure
• The Monitor menu mainly has one level. All information to be displayed can be viewed by browsing the menu with the button. Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... - Page 10 On the edit level, approves the changes made. Pressing the button in the first three items of the Monitor menu and approving the start of the test begins the system test. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
-
Page 11: Monitor Menu
Test OK; otherwise the text shown in Test FAILED, and an insulation fault alarm is given to indicate that the insulation resistance can no longer be measured. The Monitor menu functions as follows: Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... -
Page 12: Alarm Menu
All fixed faults can also be acknowledged on one go by means of the Alarm reset function in the Monitor menu. If the automatic alarm acknowledgement has been enabled (SETUP→AutoRst), the faults are acknowledged automatically as soon as they are fixed. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... - Page 13 The insulation fault alarm is active. The smallest insulation resistance measured during the fault is 850 kΩ and the alarm limit is 900 kΩ. The insulation fault alarm has been deactivated but not acknowledged. Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi...
-
Page 14: Setup Menu
The password is “123”. All information on the settings of the device alarm limits and the system are saved in the internal EEPROM memory of the IM-04PV unit. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... - Page 15 TIME: The time and date of the real time clock. • START-UP DELAY: The delay after powering on the unit during which the alarms will not be generated. The setup range is 0…60 s. Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi...
-
Page 16: Errors
RS-485 bus. The unit's Modbus RTU slave functionality is now ready for use. The unit’s Modbus RTU register map is provided below. The Modbus functions to be used are Read Holding Registers (0x03) and Write Multiple Registers (0x10). © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... - Page 17 The resolution (jog) of the limit uint16 parameter of the insulation resistance pre-alarm Start-up delay, the lowest uint16 allowed value of the device parameter Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi...
- Page 18 0x0010 = fault in the TG or MG wire deactivated the statuses will activate when the corresponding active alarm has been deactivated and remain active until the cause has been acknowledged © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
-
Page 19: Technical Specifications
4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 • Other standards: IEC61557-8, IEC61010-1:2010-3 HVC-15.100 UNIT Voltage ranges • Maximum voltage at the measurement connectors L1 and L2 [U ]: 1500VDC or 1081VAC • Maximum leakage capacitance: 100 uF Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... -
Page 20: Hvc-15.1000 Unit
Connector tightening torque: 0.5…0.6 Nm • Weight: 201 g HVC-15.2000 UNIT Voltage ranges • Maximum voltage at the measurement connectors L1 and L2 [U ]: 1500VDC or 1081VAC • Maximum leakage capacitance: 2000 uF © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... -
Page 21: Mechanical Dimensions
IP class (front panel): IP40 • IP class (other casing): IP20 • Connector tightening torque: 0.5…0.6 Nm • Weight: 800 g MECHANICAL DIMENSIONS 53,5 mm 62 mm 110 mm 62 mm 53,5 mm 110 mm Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... - Page 22 160 mm 62 mm 110 mm 160 mm 98 mm 110 mm © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
