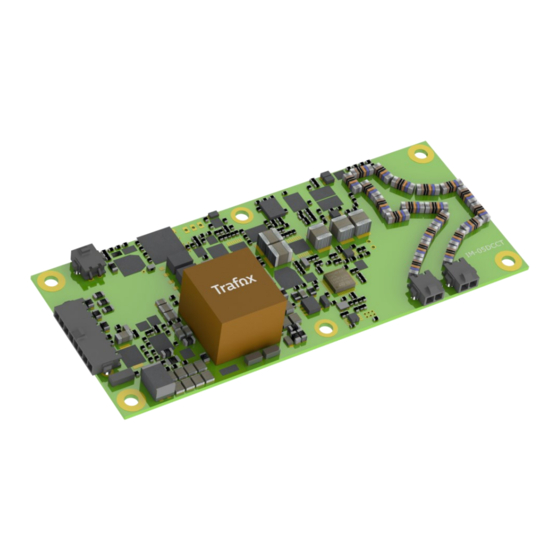

SUPERINTEND IM-05DCCT
IMD Insulation Monitoring device for non-grounded (IT) electrical
networks of electric vehicles, charging stations or DC drives
Instructions for installation and use v1.1
AC/DC
Superintend IM-05DCCT Manual v1.1 English
Rights to modify the content reserved
© Copyright Muuntosähkö Oy - Trafox 5.9.2022
Advertisement
Table of Contents
Related Manuals for Trafox SUPERINTEND IM-05DCCT
Summary of Contents for Trafox SUPERINTEND IM-05DCCT
- Page 1 IMD Insulation Monitoring device for non-grounded (IT) electrical networks of electric vehicles, charging stations or DC drives Instructions for installation and use v1.1 AC/DC Superintend IM-05DCCT Manual v1.1 English Rights to modify the content reserved © Copyright Muuntosähkö Oy - Trafox 5.9.2022...
-
Page 2: Table Of Contents
USE ........................7 IM-05DCCT UNIT ....................7 STATUS OUTPUT .................... 7 PWM OUTPUT ....................7 CAN BUS REMOTE CONTROL ................9 TECHNICAL SPECIFICATIONS ................11 IM-05DCCT UNIT ..................... 11 MECHANICAL DIMENSIONS ................12 © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... -
Page 3: Instructions
Such sections are marked with the symbol shown below. A symbol indicating possible danger. A description of the symbol may be placed on the device or provided in the instructions for use. Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... -
Page 4: System Description
PWM output (low side) Pin 7 not connected Pin 8 Status output (high side) PCB connector type TE Connectivity Micro MATE-N-LOK 2-1445088- Crimp contacts 2 x TE Connectivity Micro MATE-N-LOK 1- © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi... - Page 5 PCB connector type TE Connectivity Micro MATE-N-LOK 2-1445088- Crimp contacts 2 x TE Connectivity Micro MATE-N-LOK 1- 794606-1 Housing for crimp contacts TE Connectivity Micro MATE-N-LOK 1445022-2 Pin 1 CAN_L Pin 2 CAN_H Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi...
- Page 6 Figure 1. System connection. © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
-
Page 7: Use
PWM OUTPUT Under normal conditions, the PWM output signalises the measured insulation resistance. Under special conditions, the PWM output signalises some information about the condition. The PWM output has two possible configurations: Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... - Page 8 PWM duty cycle is set according to the accurate measurement result. 40 Hz • System fault PWM duty cycle 47,5…52,5 % 50 Hz • Earth wire disconnected PWM duty cycle 47,5…52,5 % © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
-
Page 9: Can Bus Remote Control
0=pass, 1=fail Device condition 0=ok, 1=fault Ground wire connection 0=ok, 1=fault status Insulation alarm status 0=inactive, 1=active Insulation warning status 0=inactive, 1=active Network voltage status 0=ok, 1=undervoltage Calibration activity 0=inactive, 1=active Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... - Page 10 256 * A + B (16 bit unsigned integer), level 100…1000 0x03 8 bit unsigned integer, 1…10 Averaging factor 0x04 256 * A + B (16 bit unsigned integer), Undervoltage 0…500 (0 = undervoltage detection level inactive) © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
-
Page 11: Technical Specifications
High side (external pull-down resistor required) High = system ok, insulation resistance above alarm level Low = alarm situation (insulation resistance below alarm level, system fault, earth wire disconnected, system undervoltage or supply voltage disconnected) Superintend IMD © Copyright Muuntosähkö Oy - Trafox http://www.trafox.fi... -
Page 12: Mechanical Dimensions
Road vehicles — Environmental conditions and ISO 16750-1, ISO 16750-2, ISO 16750-3 testing for electrical and electronic equipment Environmental tests IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2- 30, IEC 60068-2-38, IEC 60068-2-64 MECHANICAL DIMENSIONS © Copyright Muuntosähkö Oy – Trafox Superintend IMD http://www.trafox.fi...
