- Page 1 TB-H1-3.74 TB-H1-7.48 TB-H1-11.23 TB-H1-14.97 TB-H1-18.7...
- Page 3 2.1 General Safety The Turbo H1 Series batterv is for residential and works with a photovoltaic system. lt is a high voltage Li-ion battery storage system, with the control module on itself. lt could be operated in on-grid, off-grid and backup modes with compatible inverters.
- Page 4 Risk of injury due to weight of the battery module. •lnjuries may result if the battery module is lifted incorrectly or droppedwhile The Turbo H1 series battery can be integrated with high voltage hybrid inverter for PV energy storage system. being transported or installed.

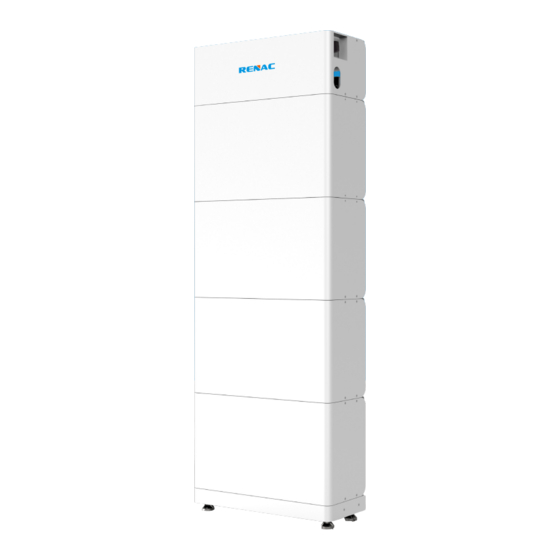

- Page 5 RBS view Note: The Turbo H1 series battery consists of a battery master controller and rechargeable battery stacks. BMC model name is BMC600.RBS model name is B9639-S. Battery Capacity Description The battery supports power and capacity expansion.One BMC supports a maximum of five RBS expansion modules.
-
Page 6: Warranty
[2]The recommended charging and discharging current is 20/20A. Rechargeable Battery Stack(RBS) [3] Ambient temperature : Charging (0 ... +40℃), Discharging (-10 ... +50℃). [4]Conditions apply. Refer to Renac Power Battery Warranty Policy. 5. Installation 5.1 Unpacking Check the delivery for completeness. Contact your dealer at once if anything is missing. - Page 7 Open the package and pick the product, check that if there is any distortion or impaired during the transportation. Meanwhile, check 5.5 Preparation that if the relating accessories and the materials are here, you can see the accessories list in the table. The following tools shall be prepared before installation The instruction manual is an integral part of the unit and should therefore be read and kept carefully.
- Page 8 5.6 Installation steps 1.Take the BMC and base out of the package 2.Loose the two screws with screwdriver. 3.Take the BMC from the base. 4.Put the installed base and feet alona the wall, and keep the distance of 20 mm between the wall and the base. 11.Secure the RBSs each other and BMC with RBS using M5 screws.
- Page 9 5.7.2 External Electrical Connection of the Battery 5.7.2.2 Battery Communication Connection 5.7.2.1 Battery Power Cable Connection The communication interface between battery and inverter is CAN with a RJ45 connector, The Pins definition is as below 1.Prepare the tin-plated cables with a conductor cross section of 4 to 6 mm²(AWG 10). 2.Strip 15mm off the conductor.
- Page 10 5.8 External protective cover installation After electrical connections are complete, check all the wirina are correctly and securely connected,install the external protective cover, and secure it using M4 screws. 5.9 Overview for All Battery sets Connectionst 5.9.1 Cables Connection BAT INV BMS-CAN BAT+ RS485...
-
Page 11: Maintenance And Warranty
BMC DC switch on Green blinking (1 times per second) RENAC protects this product under warranty when it is installed and used as listed in this manual. Violation of Push black start button or hybrid inverter awake Green and red blinking (1 times per second)
