- Page 1 Turbo H1 Series User Manual TB-H1-3.74 TB-H1-7.48 TB-H1-11.23 TB-H1-14.97 TB-H1-18.7...
-
Page 2: Table Of Contents
Content 1. About This Manual 1.1 Applicability 1.2 Target group 1.3 Symbols used 1.4 Designation in the Document 2. Safety 2.1 General Safety 2.2 Important safety instructions 2.3 Explanation of symbols 3. Introduction 3.1 Product Overview 3.2 Terminals 4. Technical data 5. -
Page 3: About This Manual

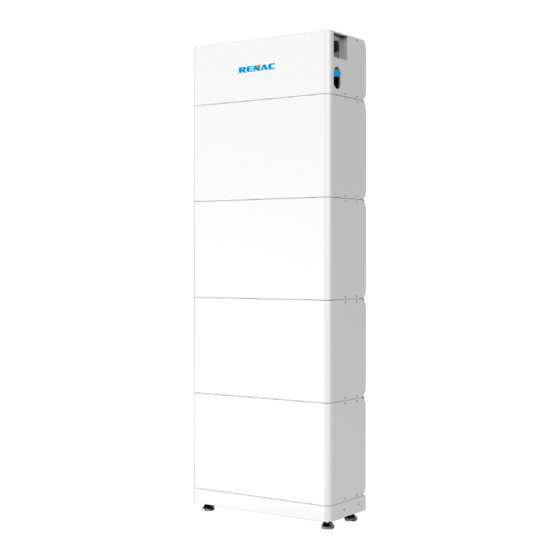

2.1 General Safety The Turbo H1 Series battery is for residential and works with a photovoltaic system. It is a high voltage Li-ion battery storage system, with the control module on itself. It could be operated in on-grid, off-grid and backup modes with compatible inverters. -
Page 4: Explanation Of Symbols
◆Risk of injury due to weight of the battery module Injuries may result if the battery module is lifted incorrectly or dropped The Turbo H1 series battery can be integrated with high voltage hybrid inverter for PV energy storage system while being transported or installed. -
Page 5: Terminals
Turbo H1 Series User Manual RBS view Note: The Turbo H1 series battery consists of a battery master controller and rechargeable battery stacks. BMC model name is BMC600. RBS model name is B9639-S. Battery Capacity Description The battery supports power and capacity expansion. One BMC supports a maximum of five RBS expansion modules. -
Page 6: Installation
Rechargeable Battery Stack(RBS) [2] The recommended charging and discharging current is 20/20A [3] Ambient temperature : Charging(0 ... +45℃),Discharging(-10 ... +55℃) [4] Conditions apply. Refer to Renac Power Battery Warranty Policy. 5. Installation 5.1 Unpacking Check the delivery for completeness. Contact your dealer at once if anything is missing. -
Page 7: Check For Transport Damage
Turbo H1 Series User Manual Turbo H1 Series User Manual Open the package and pick the product, check that if there is any distortion or impaired during the transportation. Meanwhile, check 5.5 Preparation that if the relating accessories and the materials are here, you can see the accessories list in the table. -
Page 8: Installation Steps
Turbo H1 Series User Manual Turbo H1 Series User Manual 5.6 Installation steps 1.Take the BMC and base out of the package 2.Loose the two screws with screwdriver. 3.Take the BMC from the base. 4.Put the installed base and feet along the wall, and keep the distance of 20 mm between the wall and the base. -
Page 9: Battery Communication Connection
Turbo H1 Series User Manual Turbo H1 Series User Manual 5.7.2 External Electrical Connection of the Battery 5.7.2.2 Battery Communication Connection 5.7.2.1 Battery Power Cable Connection The communication interface between battery and inverter is CAN with a RJ45 connector. The Pins definition is as below. -
Page 10: Commissioning
Turbo H1 Series User Manual Turbo H1 Series User Manual External protective cover installation After electrical connections are complete, check all the wiring are correctly and securely connected,install the external protective cover, and secure it using M4 screws. 6 Commissioning 6.1 Switch on the Battery System... -
Page 11: Packaging
• Avoid exposing the batteries to high temperatures or direct sunlight. • Avoid exposing the batteries to high humidity or corrosive atmospheres. • For more information, please contact Renac. SMART ENERGY FOR BETTER LIFE R E N A C P O W E R T E C H N O L O G Y C O . , LT D .
