Summary of Contents for Telecor TMS-MA
- Page 1 TMS-MA Telecor Media Source Model A Installation Manual Telecor Inc. 6205 Kestrel Road Intended for use with Mississauga, Ontario TMS-MA Telecor Media Source Canada; L5T 2A1 Model A Tel: (905) 564-0801 April 2023 Fax: (905) 564-0806 Rev. 0.0 PRELIMINARY www.telecor.com...
- Page 3 For details on Telecor’s Return Policy, see our Published Merchandise Return Policy. E:\G-69\G-M69-B\G-M69-B_TMS-MA_Installation_Manual.docx/TH © Copyright 2023 by Telecor Incorporated. All rights reserved. No part of this publication may be reproduced in any form, or by any means, without the prior written permission of Telecor Incorporated.
- Page 4 • Consult the dealer or an experienced radio/TV technician for help. FCC Warning: Changes or modifications not expressly approved by Telecor could void the user’s authority to operate the equipment. Radiation Exposure Statement: This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled...
- Page 5 4134A-TMSMA THIS PRODUCT HAS BEEN TESTED TO COMPLY WITH RF (RSS-247 Issue2 February 2017) IC RULES: The Telecor Media Source Model A complies with Industry Canada ICES-003: CAN ICES-003 (B)/NMB-003(B). Warning: This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development (ISED) Canada’s license-exempt RSS(s).
-
Page 7: Table Of Contents
Table of Contents A. Introduction ............................. 9 B. Installation ............................. 11 Unpacking ............................11 Installing TMS-MA in Equipment Rack ..................12 Connecting the TMS-MA Cables ....................13 C. Overview ..............................15 Front Panel ............................. 15 Remote ............................16 D. Operations ............................. 17 D.1.1... -
Page 9: Introduction
The rear side of the device provides a stereo output and a jack for an FM antenna (provided by customer) for improved FM reception. The TMS-MA is designed to be installed in a 19” equipment rack. If the TMS-MA is purchased with an equipment rack, all required cables and mounting hardware for the TMS-MA will be pre- installed in the rack. -
Page 11: Installation
B. Installation Once you have unpacked and inspected your TMS-MA, your next step is to install the unit in a standard 19” equipment rack and then connect the power, audio cable harness, and optional (provided by customer) antenna. B.1 Unpacking The following equipment is included with your TMS-MA: •... -
Page 12: Installing Tms-Ma In Equipment Rack
Use the four plastic washers to protect the finish of the front panel. Installing TMS-MA into the Equipment Rack Purchased in bags of 50 or will be included if the TMS-MA is ordered with a rack. Installation... -
Page 13: Connecting The Tms-Ma Cables
B.3 Connecting the TMS-MA Cables Once you have mounted the TMS-MA unit into the rack, you can then connect the power, audio cable harness, and optional (provided by customer) antenna. The CHAP-TMS-MA audio cable harness connects the TMS-MA to the Telecor II’s ATBU-2 or Telecor XL’s ATP-AX2. -

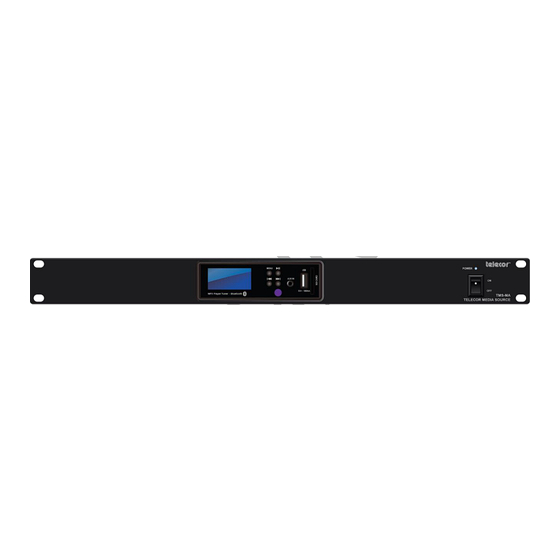

Page 15: Overview
4. USB Connection Port: Used to connect a USB drive. 5. SD/MMC Card Slot: Used to insert an SD/MMC card. 6. Power Switch: Supplies power to the TMS-MA. The Power LED illuminates when power is supplied. TMS-MA Telecor Media Source Model A Installation Manual... -
Page 16: Remote
C.2 Remote The TMS-MA includes a remote which can be used to access its functions. Remote for Telecor Media Source Model A : Powers the TMS-MA on/off. : Toggles through operational modes/menus. : Mutes/unmutes audio. : Play/pause audio. Context sensitive confirmation. -
Page 17: Operations
Press Play/Pause on the front of the TMS-MA or the remote. Selecting Music (USB Drive/SD/MMC Card) When the TMS-MA is set to play audio from a USB drive/SD/MMC card, the LCD display on the front of the TMS-MA will display the following:... - Page 18 5 and the Play/Pause to play the fifth audio file. To rewind or fast forward through an audio file: Press and hold Left or Right on the front of the TMS-MA or the remote. Release when the desired position in the audio file has been reached.
-
Page 19: Playing Bluetooth Audio
On your Bluetooth device, search for other Bluetooth devices. Select MPLAYER C when it is detected. When the TMS-MA is set to play audio from a Bluetooth, the LCD display on the front of the TMS-MA will display the following:... -
Page 20: Playing Aux Audio
Press Play/Pause on the front of the TMS-MA or the remote. Selecting AUX Input Audio When the TMS-MA is set to play audio from AUX input, the LCD display on the front of the TMS-MA will display the following: TMS-MA Playing AUX Input Audio To play or pause audio: Press Play/Pause on the front of the TMS-MA or the remote. - Page 21 When the TMS-MA is set to play audio from radio, the LCD display on the front of the TMS-MA will display the following: TMS-MA Playing Radio Audio To scan for radio stations and save them to memory: Press and hold Play/Pause. When the TMS-MA is scanning for radio stations, it will show a progress bar on the LCD display.
-
Page 23: Appendix 1. Specifications
19.0” x 1.7” x 4.3” (483 x 44 x 110 mm) Dimensions (W x H x D): Color: Black Net Weight: 3.8 lbs (1.76 kg) Operating temperature range: 10-40ºC (50-104ºF), 0-90% relative humidity, non-condensing TMS-MA Telecor Media Source Model A Installation Manual...
