Assembly — Hanging the Fan (continued)
7
Making the electrical connections
WARNING:
Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
CAUTION:
Do not use with a wall light dimmer switch.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.

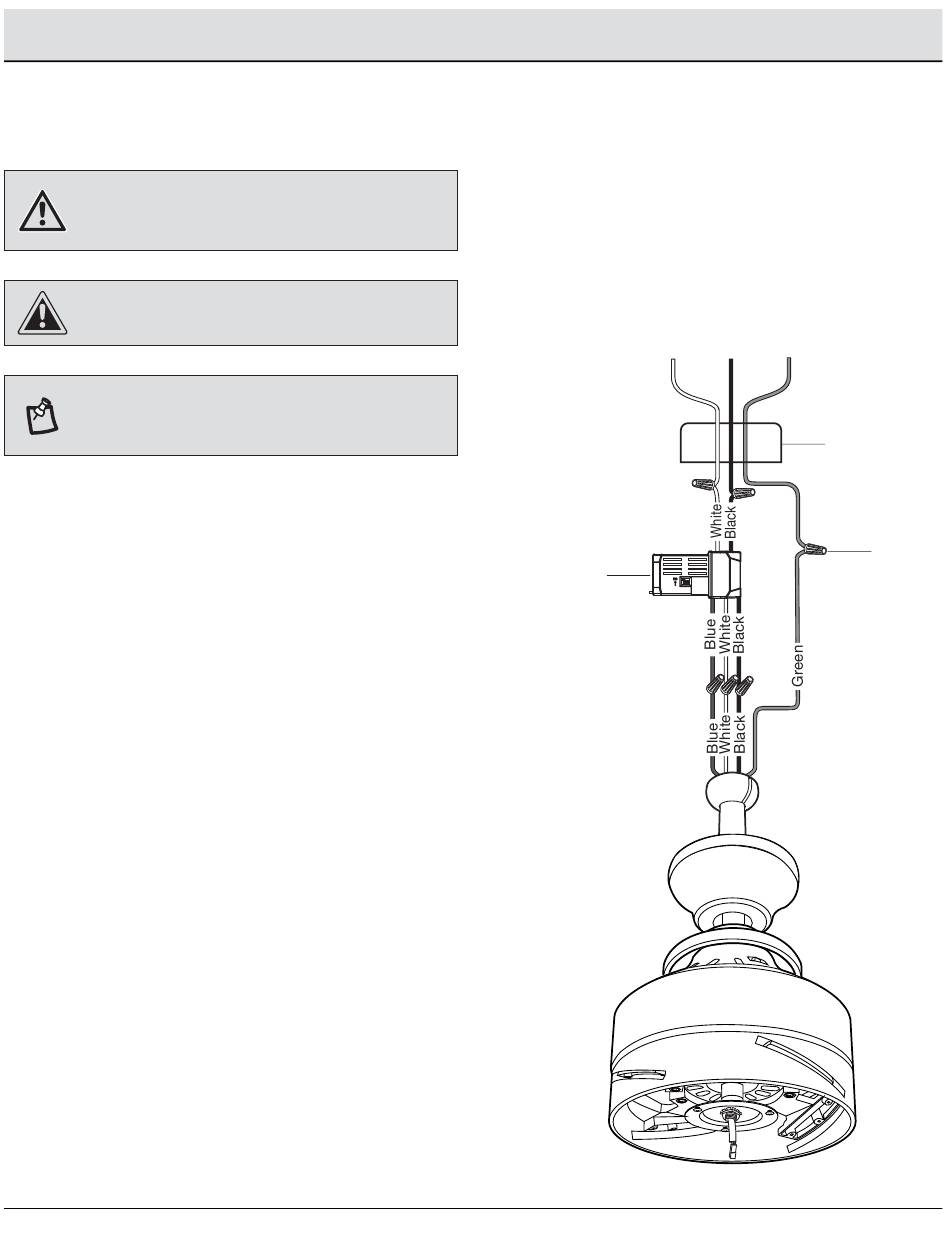

Motor to receiver electrical connections:
□
Connect the black wire from the fan to the black wire
marked "TO MOTOR L" from the receiver (M).
□
Connect the white wire from the fan to the white wire
marked "TO MOTOR N" from the receiver (M).
□
Connect the blue wire from the fan to the blue
wire marked "For Light" from the receiver (M).
Receiver to house supply wires electrical connections:
□ Connect the black (hot) wire from the ceiling to
the black wire marked "AC in L" from the receiver
(M).
□
Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N" from the
receiver (M).
□
Connect the ground conductor of the 120V supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
□
Secure each wire connection with a plastic wire nut
provided with the electrical hardware.
□
After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (QQ) and the black and blue wires are on
the other side. Carefully tuck the wire connections up
into the outlet box (QQ).
M
13
Please contact 1-800-986-3460 for further assistance.
Ground
White Black conductor
QQ
