Instruction booklet
TUMBLE DRYER
GB
English

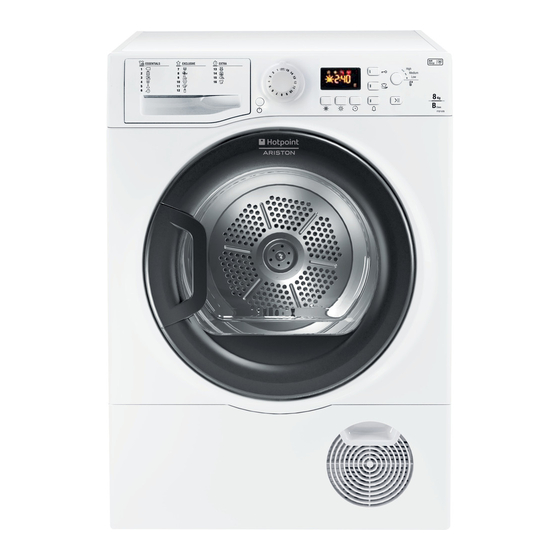

TCEL 87B Experience
www.hotpoint.eu
!
This symbol reminds you to read this
instruction manual.
!
Keep this manual at hand for immediate reference whenever
necessary. Always store this manual close to the tumble dryer and
remember to pass it on to any new owners when selling or tran-
sferring the appliance, so they may familiarise with the warnings
and suggestions herein contained.
!
Read these instructions carefully: the following pages contain
important information on installation and useful suggestions for
operating the appliance.
Contents
Installation, 2
Warnings, 4
The Controls
Laundry, 13
Troubleshooting, 14
Service, 15
Recycling and Disposal
GB
1
Advertisement
Table of Contents
Related Manuals for Hotpoint TCEL 87B Experience
Summary of Contents for Hotpoint TCEL 87B Experience
-
Page 1: Table Of Contents
Checking the drum after each cycle Emptying the water container after each cycle Cleaning the condenser unit Cleaning the tumble dryer Control panel, 8 TCEL 87B Experience Start and Programmes, 9 Choosing a programme The Controls Laundry, 13 Sorting laundry... -
Page 2: Installation
Installation Where to install the tumble dryer • Install the dryer far from gas ranges, stoves, radiators or hobs, as flames may damage it. If the dryer is installed below a worktop, 15 mm 15 mm ensure there are 10 mm between the upper panel of the Picture B... - Page 3 Maximum load sizes : 8 kg Product Data - Regulation 392/2012. Brand Hotpoint Model TCEL 87B 6A (UK) Rated capacity of cotton laundry for the "standard cotton programme" at full load - kg This household tumble drier is a Condenser...
-
Page 4: Warnings
Warnings Warnings ! This appliance has been designed and built • Do not turn off the dryer when there are still according to international safety standards. warm items inside. These warnings are given for safety reasons • Clean the filter after each use (see and must be followed carefully. - Page 5 acetone, denatured alcohol, kerosene, spot removers, turpentine, waxes and wax removers. Ensure these items have been washed in hot water with an extra amount of detergent before being dried in the tumble dryer. • Do not tumble dry items containing foam rubber (also known as latex foam), or similarly textured rubber like materials.
-
Page 6: Care And Maintenance
Care and maintenance Disconnecting the power supply Emptying the water container after each cycle ! Disconnect the dryer when not in use or Remove the water container and during cleaning and maintenance operations. empty it into a sink or other Cleaning the filter after each suitable drain outlet, then replace it correctly. - Page 7 Quick Tips • The external metal, plastic and rubber parts can be clea- ned with a damp cloth. !Remember to clean your filter and • Clean the front air intake grille regularly (every 6 months) Condenser unit after each load. with a vacuum cleaner to remove any lint, fluff or dust ! Remember to empty your water deposits.
-
Page 8: Control Panel
Control panel DRYING LEVELS Clean Filter Knob Light TIMER Empty Water DRYING Light Knob PROGRAMMES Clean Condenser Indicator Knob Light ON/OFF Progress or Delay START/PAUSE Button Lights Button & Light OPTION Buttons & Lights The ON/OFF button : If the dryer is running and this The Progress or Delay lights show you the status button is pressed and held for more that 3 seconds the of the programme, or the delay time when they flash. -
Page 9: Start And Programmes
Start and Programmes Dryness Sensing Levels After selecting a programme that has a Sensor Dry option, turn the selection knob to the required dryness sensing level. If the sensing option is not available with your selected programme, the buzzer will beep three times. ! Some sensing programmes do not have all seven dryness level options available. - Page 10 Cycle n° Programme Description of program duration • This is a programme for cotton items. • The Standard Cotton programme to EU Regulation 392/2012 is Programme 1 selection with High Heat Standard and Dryness Level Cupboard Dry (the standard/default starting configuration). It is the most efficient Cotton programme in terms of energy consumption (to EU.392/2012).
- Page 11 Cycle n° Programme Description of program duration • This is a programme for drying your delicate clothes ie. Acrylics. • Loads dried using this programme are usually ready to use, but on some garments the edges may be slightly damp. If this is the case, try opening them out or turn items inside out and running the Delicates programme again for a short period..
- Page 12 Start and Programmes High Heat The Controls Press this button and a high heat setting is selected and the light next to the button comes on. If the light alongside the button is on then pressing the button selects a low heat setting •...
-
Page 13: Laundry
Laundry Sorting laundry Drying times • Check the symbols on the care labels of the various gar- Drying times are approximate and may vary depending on ments to verify whether the garments can be safely tumble the following: dried. • Sort laundry according to the type of fabric. •... -
Page 14: Troubleshooting
Troubleshooting One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions: Problem: Possible causes / Solution: The tumble dryer won’t start. • The plug is not plugged into the socket, or not making contact. •... -
Page 15: Service
For local repair engineers - 03448 111 606 ROI - 0818 313 413 UK standard local rate applies ROI local Irish rate applies For Parts and Accessories visit: parts.hotpoint.co.uk/shop Please remember to register your appliance at www.hotpointservice.co.uk to activate your 10 year parts guarantee. - Page 16 05/2016 - Xerox Fabriano...
