Summary of Contents for Synology NAS DS3622xs+

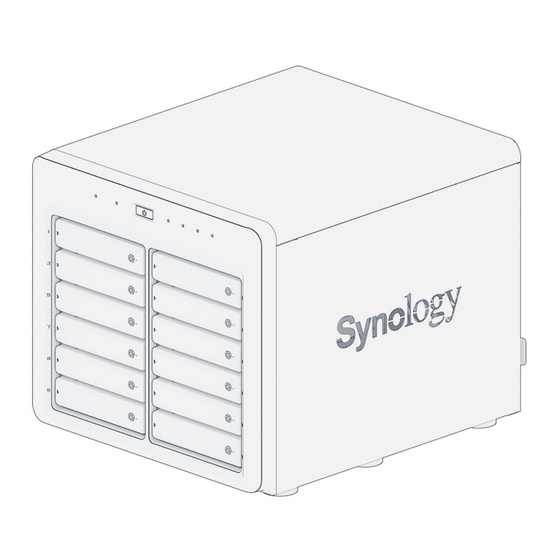

- Page 1 Synology NAS DS3622xs+ Hardware Installation Guide...
-
Page 2: Table Of Contents
Optional Accessories Safety Instructions Chapter 2: Hardware Setup Tools and Parts for Component Installation Install Drives Add a Memory Module to Synology NAS Install PCle Add-in Cards Start up Your Synology NAS Chapter 3: System Maintenance Replace System Fan Chapter 4: Install DSM on Synology NAS... -
Page 3: Package Contents
Chapter Before You Start Thank you for purchasing this Synology product! Before setting up your new Synology NAS, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your Synology NAS. -
Page 4: Synology Ds3622Xs+ At A Glance
"Other LED Indicators". 1. Press to power on your Synology NAS. Power Button 2. To power off your Synology NAS, press and hold until you hear a beep sound and the Power LED starts blinking. Front Displays the status of the network connection. For more LAN Indicator information, see "Other LED Indicators". - Page 5 This port is used for out-of-band management only. 1GbE RJ-45 Port Connect RJ-45 network cable here. 10GbE RJ-45 Port Connect RJ-45 network cable here. For more information about Synology Expansion Unit supported by your Synology NAS, please visit www.synology.com 5 Chapter 1: Before You Start...
-
Page 6: System Modes And Led Indicators
System Modes and LED Indicators System Modes and Definitions There are 7 system modes in Synology NAS. The system modes and their definitions are as below: System mode Definition Synology NAS is powering on and performing hardware initialization, such as Powering on hardware reset or BIOS initialization. - Page 7 • Enter hibernation then wake up from hibernation: DSM is ready for use > Hibernation > DSM is ready for use • Shutdown Synology NAS: DSM is ready for use > Shutting down > Powered off • Power failure with UPS attached: DSM is ready for use >...
-
Page 8: Other Led Indicators
No network Note: 1 Please try to restart your Synology NAS or re-insert the drives, then run the HDD/SSD manufacturer's diagnostic tool to check the health status of the drives. If you can sign in to DSM, please run the built-in S.M.A.R.T. -
Page 9: Hardware Specification
• Basic • JBOD • RAID 0 • RAID 1 Supported RAID Type • RAID 5 • RAID 6 • RAID 10 • Synology RAID F1 • FCC Class B • CE Class B • UKCA • BSMI Class B Agency Certification •... -
Page 10: Spare Parts
PCS Installed In Frame PSU 550W_1 SFX PSU 550W Optional Accessories With Synology accessories, you can customize your Synology NAS to fit different business environments without worrying about compatibility and stability. Visit www.synology.com/compatibility for more information. 10 Chapter 1: Before You Start... -
Page 11: Safety Instructions
Safety Instructions Keep away from direct sunlight and away from chemicals. Ensure a stable environment with no abrupt changes in temperature or humidity. Place the unit right side up at all times. Keep the unit away from liquids. Before cleaning, unplug the power cord. Do not use chemical or aerosol cleaners. Wipe with damp paper towels. -
Page 12: Chapter 2: Hardware Setup
Chapter Hardware Setup Tools and Parts for Component Installation Please prepare below tools and parts before setting up your Synology NAS: • A screwdriver (only for 2.5" drives) • At least one 3.5" or 2.5" SATA drive (please visit www.synology.com/compatibility... - Page 13 3 Install drives: • For 3.5" drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive tray. Then insert the fastening panels to secure the drive in place. • For 2.5" drives: Remove the fastening panels from the sides of the drive tray and store them in a safe place.
- Page 14 7 Repeat the steps above to install the other drives you have prepared. 8 Drives are numbered as shown below. Note: If you plan to create a RAID volume, we recommend installing drives of identical size to make the best use of drive capacity.
-
Page 15: Add A Memory Module To Synology Nas
Add a Memory Module to Synology NAS Optional Synology memory modules are designed to expand the memory of your Synology NAS. Follow the steps below to install, check, or remove a memory module on your Synology NAS. The following table shows the memory configuration for best practice:... - Page 16 To remove the RAM Module 1 Follow step 1 to 3 of the "To install the RAM module" section to shut down your Synology NAS, disconnect the cables, and then remove the side cover.
-
Page 17: Install Pcle Add-In Cards
Install PCle Add-in Cards Your Synology NAS has a PCI Express expansion slot which allows you to install 10GbE or Gigabit network interface card for LAN port expansion . You need to replace the long bracket (suited for PC) of your network interface card with a short bracket before installing the card into your Synology NAS.. - Page 18 3 Remove the PCIe expansion shield: a Reposition your Synology NAS so that the top will be facing your body, with drive trays on the right side. b Pull the clip above the PCIe expansion slot shield in the direction as illustrated below.
- Page 19 c Push back the clip to secure the newly inserted card. Note: Confirm that the connector is fully inserted. Otherwise, the network interface card might not be able to function properly. 5 Replace the top cover, then replace and tighten the 2 screws you removed in Step 2. 19 Chapter 2: Hardware Setup...
-
Page 20: Start Up Your Synology Nas
1 Use the LAN cable to connect the Synology NAS to your switch, router, or hub. 2 Connect one end of the AC power cord to the power port of your Synology NAS. Connect the other end to a power outlet. -
Page 21: Chapter 3: System Maintenance
System Maintenance Replace System Fan If the cooling fan located on the back of the Synology NAS malfunctions, please follow the steps below to remove the malfunctioning fan and replace it with a new one. 1 Power off your Synology NAS and remove the power cord. - Page 22 Make sure that all 6 push pins on the new module are pulled outwards before the module is placed into your Synology NAS, and then press the push pins back into place to secure the fan module. 22 Chapter 3: System Maintenance...
-
Page 23: Chapter 4: Install Dsm On Synology Nas
3 Enter either of the following into the address bar of your browser: find.synology.com synologynas:5000 4 Web Assistant will be launched in your web browser. It will search for and find the Synology NAS within the local network. The status of your DS3622xs+ should be Installed. - Page 24 Section 5. License Limitations. The license set forth in Sections 1, 2 and 3 applies only to the extent that you have ordered and paid for the Product and states the entirety of your rights with respect to the Software. Synology reserves all rights not expressly granted to you in this EULA.
- Page 25 Arbitration Law and related enforcement rules of the country in which Synology Inc. was organized. In such cases, the arbitration will be limited solely to the dispute between you and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis.
- Page 26 Section 3. Limited Warranty and Remedies 3.1 Limited Warranty. Subject to Section 3.2, Synology warrants to the Customer that each Product (a) will be free of material defects in workmanship and (b) under normal use will perform substantially in accordance with Synology's published specifications for the Product during the Warranty Period.
- Page 27 Section 4. Limitations of Liability 4.1 Force Majeure. Synology will not be liable for, or be considered to be in breach of or default under this Warranty on account of, any delay or failure to perform as required by this Warranty as a result of any cause or condition beyond its reasonable control (including, without limitation, any act or failure to act by Customer).
- Page 28 Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between Customer and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington, U.S.A.
- Page 29 5.9 Entire Agreement. This Warranty constitutes the entire agreement, and supersedes any and all prior agreements, between Synology and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.
- Page 30 FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 31 この装置は、クラス B 機器です。この装置は、住宅環境で使用することを 目的 としていますが、この装置がラジオやテレビジョン受信機に近接して使 用され ると、受信障害を引き起こすことがあります。 取扱説明書に従って正しい取り扱いをして下さい。 VCCI 一 B...
