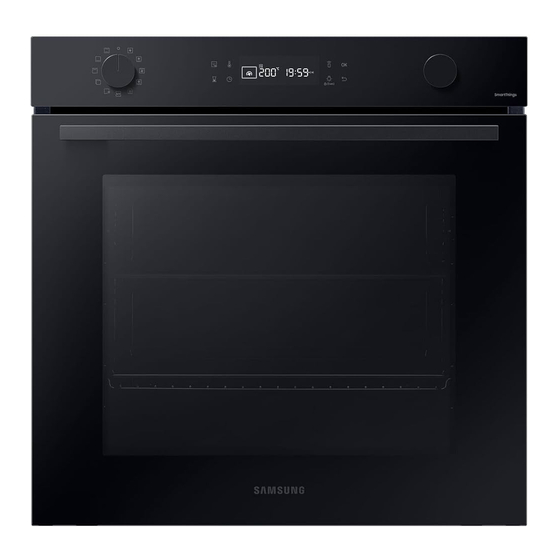

Samsung NV7B412 Series User & Installation Manual
Hide thumbs
Also See for NV7B412 Series:
- User & installation manual (352 pages) ,
- User & installation manual (44 pages) ,
- User & installation manual (308 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Samsung NV7B412 Series
Summary of Contents for Samsung NV7B412 Series
- Page 1 Built-in Oven User & Installation manual NV7B411**** / NV7B412**** / NV7B413**** / NV7B414**** / NV7B415**** / NV7B411**C* / NV7B412**C* / NV7B414**C* FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 1 FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 1 2022-04-19 오후 3:02:24 2022-04-19 오후 3:02:24...
-
Page 2: Table Of Contents
Contents Auto Cook Using this manual Cleaning The following symbols are used in this User Manual: Timer Sound On/Off Safety instructions Wi-Fi On/Off Important safety precautions Cooking smart Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Auto energy saving function Manual cooking Auto Cook programmes Installation... -
Page 3: Using This Manual
Using this manual Safety instructions Thank you for choosing SAMSUNG Built-In Oven. Installation of this oven must be performed only by a licensed electrician. The This User Manual contains important information on safety and instructions installer is responsible for connecting the appliance to the mains power supply in intended to assist you in the operation and maintenance of your appliance. - Page 4 Safety instructions The method of fixing stated is not to depend on the use of If this appliance has cleaning function, during cleaning conditions adhesives since they are not considered to be a reliable fixing the surfaces may get hotter than usual and children should be means.
- Page 5 If your oven needs repair, contact to the enamel surfaces and cause poor cooking results. a SAMSUNG Service center or your dealer. Fruit juices will leave stains, which can become permanent on the enamel surfaces Electrical leads and cables should not be allowed to touch the oven.
-
Page 6: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)
To prevent possible harm to the environment or human health from have a problem with the oven or accessories, contact a local Samsung customer uncontrolled waste disposal, please separate these items from centre or the retailer. -
Page 7: Power Connection
(earthgrounding), which must be longer than the others. If you use a plug-type socket, the plug must remain accessible after the oven is installed. Samsung is not responsible for accidents caused by missing or faulty NOTE earthgrounding. -
Page 8: Cabinet Mount
Min. 550 If installing the oven in a built-in cabinet, the cabinet must have its plastic surfaces and adhesive parts resistant up to 90 °C. Samsung is not responsible for damage to Min. 560 furniture from the oven’s heat emission. - Page 9 Installing with a hob Fit the oven into the cabinet and fix the oven firmly on both sides using 2 screws. To install a hob on top of the oven, check the installation guide of the hob for the installation space requirement ( ). After installation is complete, remove the protective film, tape, and other packing material, and take out the provided accessories from inside the oven.
-
Page 10: Before You Start
Before you start Initial settings New oven smell When you power on the oven for the first time, the default time of “12:00” appears Before using the oven for the first time, clean inside the oven to remove the new on the display where the hour element (“12”) blinks. -
Page 11: Soft Closing Door
Soft closing door (applicable models only) Accessories The Samsung Built-in Oven features a soft closing door that gently, safely, and For first time use, clean the accessories thoroughly with warm water, detergent silently closes. and a soft clean cloth. When closing the door, the specially designed hinges catch the door a few •... -
Page 12: Mechanical Lock
Before you start Mechanical lock (applicable models only) Basic use For better cooking experience, familiarise yourself with how to use each accessory. Installation Wire rack The wire rack is designed for grilling and roasting. Insert the wire rack into position with the protruding parts (stoppers on 1. -
Page 13: Operations
Operations Control panel 09 Oven light Press to turn the internal light on or off. The oven light (Child lock) turns on automatically when the door is open or when the The front panel comes in a wide range of materials and colours. For improved oven operation starts. -
Page 14: Common Settings
Operations Common settings Cooking time It is common to change the default temperature and/or cooking time across all 1. Turn the mode selector to choose a mode cooking modes. Follow the steps below to adjust the temperature and/or cooking or function. time for the selected cooking mode. - Page 15 End time Delay End Delay End is designed to make cooking more convenient. 1. Turn the mode selector to choose a mode or function. Case 1 Suppose you select a one-hour recipe at 2:00 PM and you want the oven to finish cooking at 6:00 PM.
- Page 16 Operations To clear the cooking time To clear the end time You can clear the cooking time. This is useful if you want to stop the oven You can clear the end time. This is useful if you want to stop the oven manually at manually at any time during the process.
-
Page 17: Cooking Modes (Except For Grill)
Cooking modes (except for Grill) Cooking modes (except for Grill) The cooking modes with an asterisk (*) are available for fast preheating and 1. Turn the mode selector to select an disabled for temperatures set at less than 100 °C. cooking mode. -
Page 18: Cooking Modes (Grill)
Operations Cooking modes (Grill) Mode Temperature range (°C) Suggested temperature (°C) 30-250 1. Turn the mode selector to select Eco Convection uses the optimized heating system to save energy while cooking. The cooking times slightly increases, but the cooking results remain the same. Note that this mode does not require preheating. - Page 19 Cooking with the meat probe (applicable models only) WARNING on acrylamide The meat probe measures the internal temperature of meat while it’s cooking. • To prevent damage, do not use the meat probe with the spit accessory. When the temperature reaches the target temperature, the oven stops and finishes •...
-
Page 20: To Stop Cooking
Operations To stop cooking Suggested Temperature Mode temperature Instructions range (°C) While cooking is in process, turn the mode (°C) selector to “ ”. The oven turns off in a Use this for warming dishes few seconds. This is because, to avoid Plate warm 30-80 or ovenware. -
Page 21: Natural Steam
Natural Steam (applicable models only) 6. Put the food in the oven on any rack and start cooking. With Natural Steam, you can bake bread that is crispy on the outside and moist inside. We recommended preheat the oven for the best results. 1. -
Page 22: Auto Cook
Operations Auto Cook Cleaning For inexperienced cooks, the oven offers a total of 20 auto cooking recipes. Take Two cleaning modes are available for you. This function saves you time by advantage of this feature to save you time or shorten your learning curve. The removing the need for regular manual cleaning. - Page 23 3. Turn the Value Dial to select C 1, and Pyrolytic then press OK. Pyrolytic features high temperature thermal cleaning. It burns off oily leftovers to Steam cleaning runs for 26 minutes. facilitate manual cleaning. NOTE The Pyrolytic function is available with applicable models only. 4.
-
Page 24: Timer
Operations Timer CAUTION • Do not touch the oven because the oven becomes very hot during the cycle. Timer helps you check the time or operating duration while cooking. • To avoid accidents, keep children away from the oven. 1. Press •... -
Page 25: Cooking Smart
Cooking smart Manual cooking Baking We recommend to preheat the oven for best results. WARNING on acrylamide Type of Time Food Accessory Level Temp. (°C) Acrylamide produced while baking starch-contained food such as potato chips, heating (min.) French fries, and bread may cause health problems. It is recommended to cook Wire rack, these foods at low temperatures and avoid overcooking, heavy crisping, or Sponge cake... - Page 26 Cooking smart Type of Time Type of Food Accessory Level Temp. (°C) Food Accessory Level Temp. (°C) Time (min.) heating (min.) heating Wire rack, Wire rack + Quiche 180-190 25-35 Duck breast 180-200 20-30 22-24 cm oven dish Universal tray Wire rack, Small turkey, Wire rack +...
- Page 27 Grilling Frozen ready-meal We recommend preheat the oven for 5-10 minutes using large grill mode. Turn Type of over after half of time. Food Accessory Level Temp. (°C) Time (min.) heating Type of Food Accessory Level Temp. (°C) Time (min.) Frozen pizza Wire rack 200-220...
-
Page 28: Auto Cook Programmes
Cooking smart Auto Cook programmes ECO convection This mode uses the optimized heating system so that you save the energy during The following table presents 20 auto programmes for cooking, roasting and cooking your dishes. The times of this category are suggested to not be preheated baking. - Page 29 Code Food Weight (kg) Accessory Level Code Food Weight (kg) Accessory Level 1.2-1.5 Wire rack 0.9-1.1 Wire rack + Universal tray Prepare quiche dough, put in a round quiche dish with 1.1-1.3 Quiche Lorraine 25 cm diameter. Start programme, after preheating beep A 11 Chicken, whole Rinse and clean chicken.
-
Page 30: Test Dishes
Cooking smart Test Dishes Code Food Weight (kg) Accessory Level According to standard EN 60350-1 0.3-0.5 Universal tray Frozen oven A 17 0.5-0.7 chips 1. Baking Distribute frozen oven chips evenly on tray. The recommendations for baking refer to a preheated oven. Do not use the fast 0.3-0.6 preheat function. -
Page 31: Collection Of Frequent Auto Cook Recipes
Collection of frequent Auto cook recipes 2. Grilling Preheat the empty oven for 5 minutes using Large Grill function. Potato gratin Type of Temp. Type of food Accessory Level Time (min.) heating (°C) Ingredients 800 g potatoes, 100 ml milk, 100 ml cream, 50 g beaten whole Wire rack White bread egg, 1 tbsp each of salt, pepper, nutmeg, 150 g grated cheese,... - Page 32 Cooking smart Lasagne Apple pie Ingredients 2 tbsp olive oil, 500 g minced beef, 500 ml tomato sauce, 100 Ingredients • Pastry: 275 g flour, tbsp salt, 125 g white castor sugar, 8 g ml beef stock, 150 g dried lasagne sheets, 1 onion (chopped), vanilla sugar, 175 g cold butter, 1 egg(beaten) 200 g grated cheese, 1 tsp each of dried parsley flakes, oregano, •...
- Page 33 Quiche Lorraine Homemade pizza Ingredients • Pastry: 200 g plain flour, 80 g butter, 1 egg Ingredients • Pizza dough: 300 g flour, 7 g dried yeast, 1 tbsp olive oil, 200 • Filling: 75 g cubed fatless bacon, 125 ml cream, 125 g crème ml warm water, 1 tbsp sugar and salt fraiche, 2 eggs, beaten, 100 g grated cheese from Switzerland, •...
-
Page 34: Maintenance
Cooking smart Maintenance Cleaning Rack of Pork rib Ingredients 2 racks pork spare ribs, 1 tbsp black peppercorns, 3 bay leaves, WARNING 1 onion (chopped), 3 garlic cloves (chopped), 85 g brown sugar, • Make sure the oven and accessories are cool before cleaning. 3 tbsp Worcestershire sauce, 2 tbsp Tomato puree, 2 tbsp olive •... - Page 35 Catalytic enamel surface (applicable models only) 4. When done, follow steps 1 to 2 above in the reverse order to reinstall the door. The removable parts are coated with dark grey catalytic enamel. They can be Make sure the clips are hinged on both soiled with oil and fat spattered by the circulating air during convection heating.
- Page 36 02 Support clip 2 If you encounter a water leak from the 03 Support clip 3 water collector, contact us at a local 01 Water collector Samsung service center. 36 English FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 36 FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 36 2022-04-19 오후 3:02:42 2022-04-19 오후 3:02:42...
-
Page 37: Replacement
• Use only 25-40 W/220-240 V, 300 °C heat-resistant bulbs. You can purchase 4. Clean both side runners. approved bulbs at a local Samsung service center. 5. When done, follow steps 1 to 2 above • Always use a dry cloth when handling a halogen bulb. This is to prevent the... -
Page 38: Troubleshooting
If you encounter a problem with the oven, first check the table below and try the The oven exterior • If the oven is installed • Keep the gaps specified suggestions. If the problem continues, contact a local Samsung service centre. is too hot during in a place without good in the product installation operation. - Page 39 Problem Cause Action Problem Cause Action The brightness • The brightness changes • Power output changes The oven does not • If the door is often • Do not frequently open inside the oven depending on power during cooking are not cook properly.
-
Page 40: Information Codes
Turn off the oven and try Occurs when a button is pressed and C-d0 again. If the problem continues, held for a period of time. contact a local Samsung service centre. 40 English FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 40 FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 40 2022-04-19 오후 3:02:44... -
Page 41: Technical Specifications
Technical specifcations Appendix SAMSUNG strives to improve its products at all times. Both the design Product data sheet specifications and these user instructions are thus subject to change without notice. SAMSUNG SAMSUNG Connection voltage 230-240 V ~ 50 Hz Model identification... -
Page 42: Open Source Announcement
The full text of the EU declaration of conformity and the UK declaration of conformtiy is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com. go to Support > Search Product Support and enter the model name. - Page 43 Memo FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 43 FULL_NV7000B_NV7B41307AS_U1_DG68-01414A-02.indb 43 2022-04-19 오후 3:02:44 2022-04-19 오후 3:02:44...
