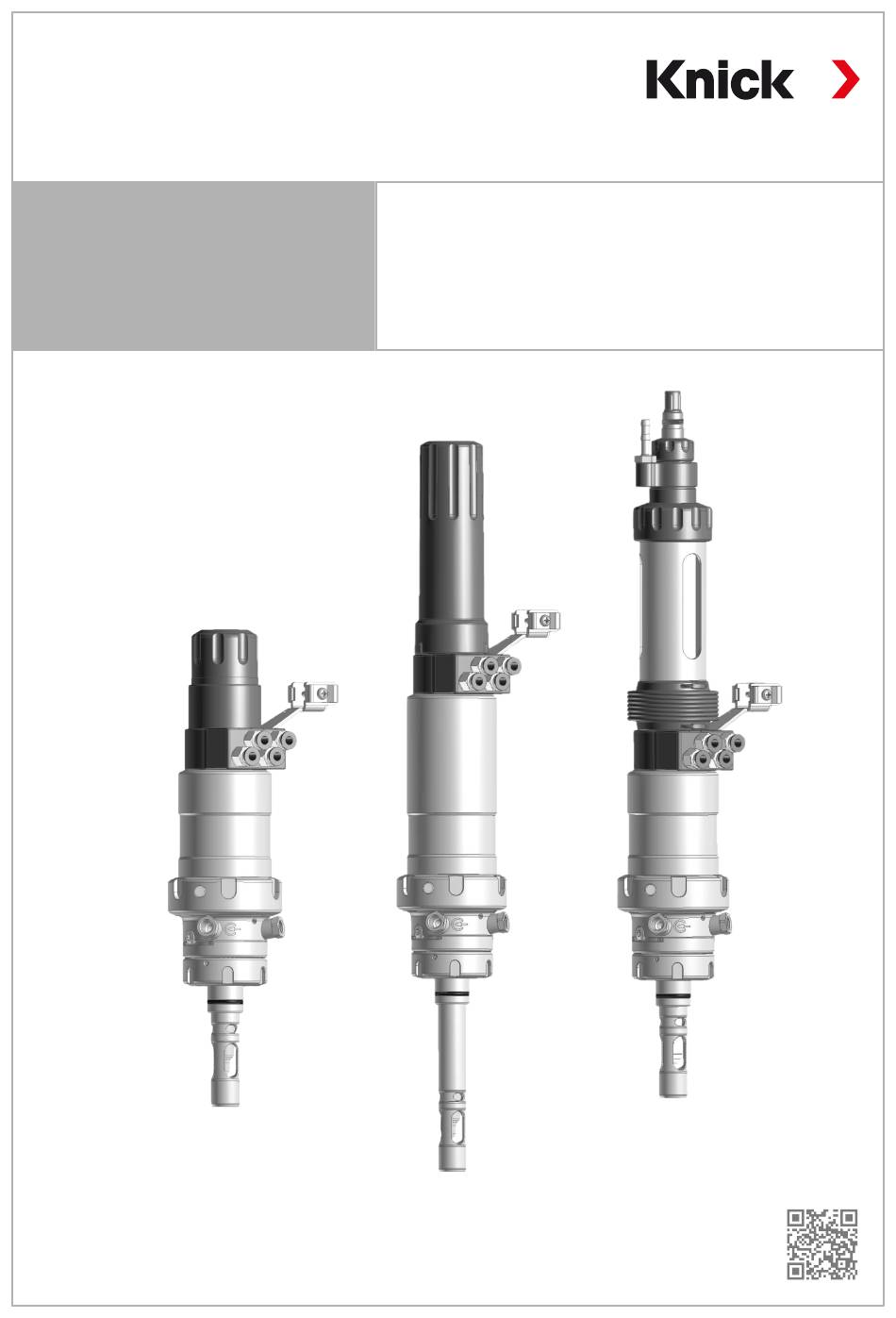

SensoGate WA131 User Manual Retractable Fitting Read before installation. www.knick.de Keep for future use.
Page 2
SensoGate WA131 Supplemental Directives READ AND SAVE THIS DOCUMENT FOR FUTURE REFERENCE. BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT, PLEASE ENSURE A COMPLETE UNDERSTANDING OF THE INSTRUCTIONS AND RISKS DESCRIBED HEREIN. ALWAYS OBSERVE ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS DOCUMENT COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
1.1 Intended Use The SensoGate WA131 is a retractable fitting for installation in boilers, tanks, and pipes. The product is used to mount a sensor for measuring process parameters. The sensor is immersed in the process medium by the SensoGate WA131.
The SensoGate WA131 is in the service position (SERVICE limit position). The SensoLock ring is set manually to “lock” and the SensoGate WA131 cannot be moved to the process position (PROCESS limit position). After installing the sensor, the SensoLock ring is set to “unlock”.
Inspection and Maintenance Intervals, p. 34 ➜ • Adhering and sticky process media can impact the functionality of SensoGate WA131 (e.g., by causing components to stick together). Adjust the inspection and maintenance intervals accord- ingly. Inspection and Maintenance Intervals, p. 34 ➜...
This serves to increase safety during operation of the retractable fitting. The retainer clamp wires connect the drive unit of the SensoGate WA131 to the coupling nut. The locking lugs on the retainer clamp engage in the grooves of the...
To avoid mechanically generated sparks, handle the SensoGate WA131-X with care and apply suitable measures, e.g., use covers and pads. The metallic parts of the SensoGate WA131-X must be connected to the plant’s equipotential bonding using the metallic process connection and the grounding connection provided for that purpose.
SensoGate WA131 Mechanically Generated Sparks Single impacts on metal parts or collisions between metal parts of the SensoGate WA131-X are not a potential ignition source only if the following conditions are met: • Possible impact velocity is less than 1 m/s.
• As applicable, supplementary datasheet for special versions 2.2 Product Identification The different versions of the SensoGate WA131 are encoded in a product code. The product code is stated on the nameplate, the delivery note, and the product packaging. Nameplates, p. 14 ➜...
SensoGate WA131 2.2.2 Product Code Basic unit WA131 – _ _ _ _ _ _ _ _ _ _ – _ _ _ ATEX Zone 0 – Explosion protection None – Sensor, Ø 12 mm with PG 13.5 – Sensor pH sensor Ø 12 mm with pressurization unit, –...
Page 13
Immersion lock for fitting without mounted sensor. – 0 0 W For the following materials only: 1.4571, Hastelloy, titanium, PEEK This version requires an adapter for connection to the sight glass fitting. The adapter is part of the Knick sight glass fitting.
SensoGate WA131 2.3 Nameplates The SensoGate WA131 is identified by nameplates on the drive unit and the process unit. The informa- tion provided on the nameplates varies according to the version of the SensoGate WA131. Nameplate, Version Without Ex Approval Note: The figure shows a nameplate for the SensoGate WA131-N version by way of example.
Page 15
SensoGate WA131 Nameplate, Version With Ex Approval Note: The figure shows a nameplate for the SensoGate WA131-X version by way of example. WA131 xxxxxxx / xxxx WA131 xxxxxxx / xxxx Drive unit nameplate 10 Serial number / year and week of production...
Permissible Changes, p. 19 ➜ The process connection is used to fasten the SensoGate WA131 to the process port. The pneumatically operated drive unit moves the SensoGate WA131 into the service position (SERVICE limit position) or the process position (PROCESS limit position).
SensoGate WA131 2.5.1 Retractable Fitting Note: The figure shows an example version of the SensoGate. Product Code, p. 12 ➜ Drive unit Outlet port Process unit Calibration chamber Sensor holder 10 Process connection Fixing bracket with grounding connection 11 Immersion tube...
SensoGate WA131 2.5.2 Drives and Sensor Holders Note: The figure shows a selection from the product line. Product Code, p. 12 ➜ Drive, short ID , solid-electrolyte sensor (225 mm) Drive, short ID , liquid-electrolyte sensor (250 mm) Drive, long ID , solid-electrolyte sensor (225 mm) 2.5.3 Process Connections...
In the event of a change to the version, the product must be identified accordingly. It is recommended that changes to the SensoGate WA131 be carried out by the Knick Repair Service. After making the necessary changes, a functional and pressure test is carried out and, if necessary, a modified nameplate is attached.
SensoGate WA131 2.7 SERVICE/PROCESS Limit Positions 2.7.1 Service and Process Position The SensoGate WA131 can assume two limit positions (service or process position). Service position (SERVICE limit position) • The sensor is not in contact with the process medium. • The sensor can be installed, removed, and, as necessary, cleaned while the process is running •...
SensoGate WA131 2.7.2 Limit Signals On versions of the SensoGate WA131 with pneumatic limit signal, a pneumatic signal is applied to the corresponding push-in connection when a limit position is reached. This signal can either be processed directly or converted into an electrical signal through use of a limit switch (ZU0859).
Dimension Drawings, p. 52 ➜ Note: The installation angle of the SensoGate WA131 depends on the sensor type. An installation angle of up to 10° above the horizontal plane is permissible for all sensor types. An installation angle of 360° (i.e., upside down, see view A) is only permitted if using sensors approved for upside-down operation.
Accessories, p. 47 ➜ Note: When using versions of SensoGate WA131 with inlet port, the sealing insert or the inlet hose must be installed at the inlet for safe operation. As delivered, the inlet port is sealed with a sealing insert.
SensoGate WA131 3.5 Pneumatic Control: Installation With the SensoGate WA131 retractable fitting, movements to the service position (SERVICE limit position) or the process position (PROCESS limit position) are pneumatically controlled. Installation without pneumatic limit signal Push the compressed air hose DN6 fully into the Service connector (1).
SensoGate WA131 4 Commissioning WARNING! Process medium may leak from the SensoGate WA131 in the event of damage or improper installation, and may contain hazardous substances. Follow the safety instructions. Safety, p. 5 ➜ Note: Upon request, Knick will provide safety briefings and product training during initial commis- sioning of the product.
CAUTION! Risk of crushing injuries to hands and fingers. When moving to the limit positions, the SensoGate WA131 with liquid-electrolyte sensor performs a stroke movement (approx. 43 mm). Do not touch the SensoGate WA131 while it is moving to the limit positions. Install the sensor. ...
Design and Function, p. 16 ➜ 5.3.2 Solid-Electrolyte Sensor, Short Immersion Depth: Installation Note: Prior to installing the sensor, the SensoGate WA131 must be in the service position (SERVICE limit position). Moving into the Process Position (PROCESS Limit Position), p. 26 ➜...
Note: Rinse the sensor prior to removal in order to prevent entrainment of chemically aggressive process medium in the area of the sensor holders. Move the SensoGate WA131 into the service position (SERVICE limit position) Moving into the Service Position (SERVICE Limit Position), p.
SensoGate WA131 5.3.4 Solid-Electrolyte Sensor, Long Immersion Depth: Installation Note: Prior to installing the sensor, the SensoGate WA131 must be in the service position (SERVICE limit position). Moving into the Process Position (PROCESS Limit Position), p. 26 ➜ Check outlet and leakage bores for escaping process medium. If process medium escapes, stop the process (depressurize if necessary) and perform troubleshooting.
➜ Optional: Set SensoLock to “unlock”. 5.3.5 Solid-Electrolyte Sensor, Long Immersion Depth: Removal Move the SensoGate WA131 into the service position (SERVICE limit position) Moving into the Service Position (SERVICE Limit Position), p. ➜ Check outlet and leakage bores for escaping process medium. If process medium escapes, stop the process (depressurize if necessary) and perform troubleshooting.
Note: In the case of inclined installation, turn the electrolyte filling hole towards the top to prevent electrolyte from flowing out during operation of the SensoGate WA131. Observe any deviating direc- tion of installation specified by the sensor manufacturer.
Page 32
During this process, the sensor cable loop must be long enough so that the sensor cable does not impede the stroke movement of the SensoGate WA131. On first-time installation: Connect the air pressure inlet for the pressure chamber to the connec- tion nozzle (9).
Note: Rinse the sensor prior to removal in order to prevent entrainment of chemically aggressive process medium in the area of the sensor holders. Move the SensoGate WA131 into the service position (SERVICE limit position) Moving into the Service Position (SERVICE Limit Position), p.
Further information can be found at www.knick.de. The stated intervals are general recommendations based on Knick’s experience. The actual intervals are dependent on the specific application for which the SensoGate WA131 is used. Following successful first inspection and confirmation of the suitability of all materials used, the interval may be...
SensoGate WA131 6.2 Preventive Maintenance 6.2.1 Approved Lubricants Application Pharma and food Chemicals and wastewater Lubricant Beruglide L Paraliq GTE 703 Syntheso Glep 1 (silicone-free) (containing silicone) (silicone-free) Elastomer seal materials FFKM EPDM FKM – FDA FFKM – FDA EPDM – FDA Note: Lubricant Paraliq GTE 703 contains silicone and has good lubricating properties even at ele- vated temperatures and with numerous travel movements.
Retractable Fitting: Removal, p. 43 ➜ As required, disconnect the outlet and inlet hoses Move the SensoGate WA131 into the service position (SERVICE limit position) Moving into the Service Position (SERVICE Limit Position), p. ➜ As necessary, remove the sensor (3). ...
SensoGate WA131 6.3.3 Drive Unit: Assembly Note: The radial installation position of the drive unit is determined by a coding pin in the calibration chamber and a hole in the drive unit. The coupling nut can be tightened only if the drive unit is cor- rectly inserted into the process unit.
SensoGate WA131 6.3.4 Immersion Tube: Removal Remove the drive unit (1). Drive Unit: Removal, p. 36 ➜ Move the drive unit to the process position (PROCESS limit position). The sensor must be installed first. Moving into the Process Position (PROCESS Limit Position), p. 26 ➜...
SensoGate WA131 6.3.5 Immersion Tube: Installation Install the sensor. Installing and Removing Sensors, p. 27 ➜ Move the drive unit to the process position (PROCESS limit position). Moving into the Process Position (PROCESS Limit Position), p. 26 ➜ Check the O‑ring (2)
SensoGate WA131 6.3.6 Calibration Chamber: Removal Note: ZU0754 service set or ZU0740 service set are required to remove the calibration chamber. Tools, p. 51 ➜ Remove the process unit from the drive unit. Drive Unit: Removal, p. 36 ➜ Remove the screws (1) with a screwdriver of type TX25.
TX25 . 6.3.8 Knick Repair Service The Knick Repair Service offers professional corrective maintenance for the product to the original quality. Upon request, a replacement unit can be obtained for the period of the repair. Further information can be found at www.knick.de.
Installing and Removing Sensors, p. 27 ➜ Safeguard “Immersion lock without Corrosion or clogging by penetrated Send the SensoGate WA131 to your mounted sensor” not working. process medium. local contact for repair. knick.de ➜...
Operation in Explosive Atmospheres, p. 9 ➜ WARNING! Process or rinse medium, possibly containing hazardous substances, can escape from the SensoGate WA131 or the process port. Follow the safety instructions. Safety, p. 5 ➜ Stop the process; depressurize or drain off the process medium if necessary.
SensoGate WA131 9 Spare Parts, Accessories, and Tools 9.1 Seal Kits The seal kits are available in different materials. The smaller seal kits (“Set X/1”) only contain O-rings for direct contact with the process medium. The extended seal kits (“Set X/2”) also include O-rings for contact with the rinse medium.
Page 45
SensoGate WA131 Seal kits for flange or dairy-pipe process connection Note: All dimensions are given in millimeters. Process-wetted Rinse-wetted O-rings O-rings Scraper ring 215.000-420 23x2 13x1.5 11.9x2.6 20x2.5 8x1.5 40x2.5 20x2.5 215,000-420 23x2 Seal kits for Ingold-socket process connection Note: All dimensions are given in millimeters.
SensoGate WA131 9.3 Accessories ZU0759 and ZU0759/1 Protective Cap The protective cap protects against the effects of weather exposure and prevents the ingress of external liquids or particles into the area of the sensor connections. ZU0759: suitable for versions with solid-electrolyte sensors...
Page 48
SensoGate WA131 Weld-in sockets with an HSD (Handling Safety Design) safety function feature spe- cial grooves on the sealing surface for the process connection O-ring. These grooves prevent the O-ring from sealing if the Ingold coupling nut loosens inad- vertently when process pressure is present. A minor leak means the loosening can be detected quickly and remedied before the Ingold coupling nut comes loose from the thread completely.
Page 49
This serves to in- crease safety during operation of the retractable fitting. The retainer clamp wires connect the drive unit of the SensoGate WA131 to the coupling nut. The locking lugs on the retainer clamp engage in the grooves of the coupling nut (form-fit) and secure the screw joint.
Page 50
ZU0713 Hose, 20 m (Extension for ZU0670) This assembly group maintains the defined gauge pressure in the sensor pressure chamber in versions of the SensoGate WA131 for liquid-electrolyte sensors. ZU0859 Limit Switch, Electrical The ZU0859 limit switch converts the pneumatic limit signals from the SensoGate WA131 into electrical output signals.
ZU0740 SensoGate Service Set, Maintenance, Repair, Modification This tool set contains all the tools required to carry out extensive maintenance and corrective maintenance, as well as to modify the product. SensoGate WA131 can be fully dismantled using this tool set.
SensoGate WA131 10 Dimension Drawings Retractable Fitting for Solid-Electrolyte Sensor, Short Immersion Depth Note: All dimensions are given in millimeters [inches].
Page 53
SensoGate WA131 Retractable Fitting for Solid-Electrolyte Sensor, Long Immersion Depth Note: All dimensions are given in millimeters [inches].
Page 54
SensoGate WA131 Retractable Fitting for Liquid-Electrolyte Sensor, Short and Long Immersion Depth Note: All dimensions are given in millimeters [inches]. Short immersion depth Long immersion depth...
Page 56
SensoGate WA131 G1″ male Short and long immersion depth (ID) G1 ½″ male Short and long immersion depth (ID) SW55 A/F [2.17] G1 1/2 G1 ¼″ male Short and long immersion depth (ID) SW49 A/F [1.93] G1 1/4...
Page 57
SensoGate WA131 Clamp 1.5″ and clamp 2″ Short and long immersion depth (ID) 1″ NPT male Short and long immersion depth (ID) A/F [1 11/16 NPT1...
SensoGate WA131 11 Specifications Permissible process pressure and temperature, general 1.4571/Hastelloy/titanium process 10 bar (at 0 … 140 °C) / 150 psi (at 32 … 284 °F) connection PEEK HD process connection 10 bar (at 0 … 140 °C) / 150 psi (at 32 … 284 °F) PVDF HD process connection 10 bar (0 … ...
Page 59
SensoGate WA131 Abbreviations Width across flats ATEX Atmosphères Explosibles (explosive atmospheres) Conformité Européenne (European conformity) Classification, labeling, and packaging Deutsches Institut für Normung (German Institute for Standardization) Nominal size European Union Immersion depth International Electrotechnical Commission International Protection / Ingress Protection...
Page 60
SensoGate WA131 Technical Terms CE Marking Manufacturer's declaration, in accordance with EU Regulation 765/2008, that the product is in conformity with the appli- cable requirements set out in the European Union harmonization legislation providing for its affixing. Corrective Maintenance Measures taken to return an item under review to an operational condition, with the exception of improvements.
Page 61
SensoGate WA131 Index Accessories First inspection Accessory tool Functional description, retractable fitting Accompanying slip, seal kit Ambient temperature Assembly Genuine spare parts ATEX certificate Hazard assessment Bellows Hazardous substances Highly efficient charge-generating mechanisms Calibration chamber Accessory tool, O-rings 51 Ignition sources Accessory tool, scraper ring 51...
Page 62
SensoGate WA131 Nameplate Safeguards Drive unit, with Ex approval 15 Overview 6 Drive unit, without Ex approval 14 Retrofit 19 Process unit, with Ex approval 15 Safety accessories Process unit, without Ex approval 14 Locking clamp 8 Notes on safety information Retainer clamp K8 8...
Page 64
Knick Elektronische Messgeräte GmbH & Co. KG Headquarters Beuckestraße 22 • 14163 Berlin Germany Phone: +49 30 80191-0 Fax: +49 30 80191-200 info@knick.de www.knick.de Local Contacts www.knick-international.com Translation of the original instructions Copyright 2022 • Subject to change Version 4 • This document was published on October 14, 2022.
