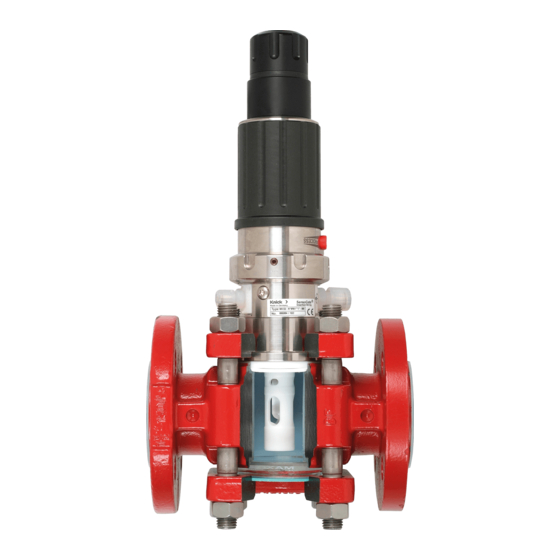

- Page 1 The Art of Measuring. SensoGate WA 132 User Manual Retractable Fitting with PTFE Process Adaptation Information: www.knick-international.com...
-
Page 2: Table Of Contents
Table of Contents SensoGate WA 132 Safety Instructions ........................... 3 Intended Use ............................. 5 Symbols and Markings .................................. 5 Rating Plates ..................................... 6 Package Contents ................................... 6 SensoGate WA 132 Product Coding ....................7 Function Description ........................8 Overview of Retractable Fitting ...................... 9 Modular Design: Drive Unit, Immersion Tube, Process Adaptation ................10 SensoLock ............................11 Media Connection ..........................12... -
Page 3: Safety Instructions
SensoGate WA 132 Prozess Process-Related Risks Knick Elektronische Messgeräte GmbH & Co. KG assumes no liability for damages caused by process-related risks known to the operator, which would in fact not permit the use of the retractable fitting. SensoGate ®... - Page 4 Exceeding the standard atmospheric conditions within the manufacturer’s specifications, such as ambient tem- perature, process pressure and temperature, does not impair the durability of the retractable fittings. Related certificates are included in the product’s scope of delivery and are available at www.knick.de in the cur- rent version.
-
Page 5: Intended Use
If you are not sure whether the retractable fitting can be safely used for your Type Type Made in Germany . 7 bar intended application, always contact Knick! 4 to 7 bar e in Germany 4 to 7 bar To ensure safe use of the equipment, you must observe the temperature and max. -
Page 6: Rating Plates
(inlet to calibration chamber) to prevent backflow of rinse or process medium or compressed air into the water pipe. Schilder Suitable check valves made from different materials are available from Knick. WA130-N*, WA130-X*, Rating Plates WA132-N*, WA132-X* SensoGate®... -
Page 7: Sensogate Wa 132 Product Coding
SensoGate WA 132 Product Coding SensoGate WA 132 WA 132- Explosion For ATEX Zone 0 protection Sensor Sensor, Ø 12 mm, with PG 13.5 pH sensor, Ø 12 mm, pressurized Gasket material EPDM EPDM - FDA FKM - FDA FFKM - FDA FFKM Process-wetted PTFE... -
Page 8: Function Description
Function Description SensoGate WA 132 The retractable fitting can be moved to two positions using compressed air: • PROCESS position: The sensor is located in the process medium. • SERVICE position: The sensor is located in the calibration chamber. In SERVICE position you can clean, maintain, calibrate or adjust the measuring system. Using compressed air, a control unit such as the Unical 9000 moves the sensor between SERVICE position and PROCESS position and leads the different calibration or cleaning liquids to the sensor when it is located in the calibration chamber. -
Page 9: Overview Of Retractable Fitting
Overview of Retractable Fitting SensoGate WA 132 The SensoGate retractable fitting has a modular design. This allows the drive unit, immersion tube and process adaptation to be exchanged. The retractable fitting consists of two main units: The drive unit performs the required movements to move the sensor into and out of the process. The process adaptation comprises the process-wetted part of the calibration chamber. -
Page 10: Modular Design: Drive Unit, Immersion Tube, Process Adaptation
Overview of Retractable Fitting SensoGate WA 132 Modular Design: Drive Unit, Immersion Tube, Process Adaptation Drive Units Short immersion depth Long immersion depth Short immersion depth Sensors with Sensors with Sensors with solid electrolyte solid electrolyte liquid electrolyte Immersion Tubes Immersion tube Material: PTFE Bayonet coupling... -
Page 11: Sensolock
SensoLock SensoGate WA 132 The SensoLock ring securely blocks the retractable fitting in SERVICE position. Twisting the SensoLock ring to the “lock“ position mechanically locks the internal lift piston and thus prevents the retractable fitting from moving to PROCESS position. The SensoLock ring can only be rotated when in SERVICE position. -
Page 12: Media Connection
Media Connection SensoGate WA 132 Installing the Media Connection Installing the media connection with multiplug and Unical 9000(X) electro-pneumatic controller 1) Screw the hose bracket (M) of the media con- nection to the fixing bracket (H) of the retract- able fitting (illustration: The 3 × 2 threaded holes on the fixing bracket allow different arrangements). -
Page 13: Service Position
SERVICE Position SensoGate WA 132 The following illustrations clearly show the SERVICE position: Short immersion depth Short immersion depth Long immersion depth Solid-electrolyte sensor Liquid-electrolyte sensor Solid-electrolyte sensor The SERVICE position is The SERVICE position The SERVICE position is indicated by the sensor is indicated by the indicated by the service head (J) protruding out... -
Page 14: Process Position
PROCESS Position SensoGate WA 132 The following illustrations clearly show the PROCESS position: Short immersion depth Short immersion depth Long immersion depth Solid-electrolyte sensor Liquid-electrolyte sensor Solid-electrolyte sensor The PROCESS position is The PROCESS position The PROCESS position is indicated by the sensor is indicated by the indicated by the sensor cap rubber bellows (B) being... -
Page 15: Installing And Removing A Sensor
Installing and Removing a Sensor SensoGate WA 132 NOTICE! Sensors shall only be installed or removed by personnel authorized by the operating company and trained in the handling of the retractable fitting. To replace the sensor, you must move the retractable fitting to the SERVICE position (see page 13) and secure it using SensoLock (see page 11). -
Page 16: Sensors With Solid Electrolyte
O-ring (D) are correctly positioned and not damaged. 4) Screw in the sensor head (J) (19 mm A/F, PG 13.5 thread) with a max. torque of 3 Nm (recom- mended tool: 19 mm mounting wrench, e.g., Knick ZU 0647). The sensor connector protrudes out of the drive unit. - Page 17 Sensors with Solid Electrolyte SensoGate WA 132 Short Immersion Depth 5) Connect the cable jack (G). Hold the cable in a loop and fix it using clamp (E). NOTICE! The cable loop must be long enough so that the cable does not impede the stroke movement of the fitting.
-
Page 18: Removing The Sensor
3) Before removing the sensor, check that there is no liquid leaking from the outlet (process sealing might be defective). 4) Remove the sensor (recommended tool: 19 mm mounting wrench, e.g., Knick ZU 0647). 5) Check whether the slide washer (C) or the O-ring (D) are damaged. NOTICE! -
Page 19: Long Immersion Depth
(19 mm A/F, PG 13.5 thread) with a max. torque of 3 Nm (recommended tool: 19 mm mounting wrench, e.g., Knick ZU 0647). 5) Thread the cable jack (G) through the extension (V). 6) Connect the cable jack (G) with the sensor plug... - Page 20 Sensors with Solid Electrolyte SensoGate WA 132 Long Immersion Depth Installing the Sensor (continued) NOTICE! The cable loop must be long enough so that the cable does not impede the stroke movement of the fitting. When the cable is installed for the first time, you must first pull off the split red service cap (L).
-
Page 21: Removing The Sensor
Sensors with Solid Electrolyte SensoGate WA 132 Long Immersion Depth Removing the Sensor Only remove the sensor when the retractable fitting is in SERVICE position: Move the SensoGate retractable fitting to SERVICE position and secure it with SensoLock (red service cap (L) is visible). - Page 22 4) Disconnect the cable jack (G) from the sensor. 5) Screw off the sensor head (J) (19 mm, PG 13.5), (recommended tool: 19 mm mounting wrench, e.g., Knick ZU 0647) and pull out the sensor. 6) Check whether slide washer (C) or O-ring (D) on ZU 0647 the sensor are damaged.
-
Page 23: Sensors With Liquid Electrolyte
Sensors with Liquid Electrolyte SensoGate WA 132 You can use sensors with a length of 250 mm and an electrode diameter of 12 mm, e.g., Knick SE 551. To ensure that the electrolyte flows from the reference electrode to the process medium, the air pressure in the sensor pressure chamber must be 0.5 to 1 bar above that of the process medium. -
Page 24: Removing The Sensor
Sensors with Liquid Electrolyte SensoGate WA 132 Removing the Sensor 1) Before removing the sensor, make sure that the retractable fitting is in SERVICE position and secured with SensoLock (the rubber bellows is expanded). 2) Remove the cable jack. 3) Before removing the sensor, check that there is no liquid leaking from the outlet (process sealing might be defective). -
Page 25: Drive Unit
Drive Unit SensoGate WA 132 Removing the Drive Unit NOTICE! Be sure to follow the steps below in the correct order. Take appropriate safety precautions against escaping process fluids. Disconnect all process media and process pressure! 1) Move the retractable fitting to the SERVICE position. 2) Make sure that no process fluid is leaking from the outlet (I). -
Page 26: Installing The Drive Unit
Drive Unit SensoGate WA 132 Installing the Drive Unit NOTICE! Be sure to follow the steps below in the correct order. 1) Insert the drive unit (in SERVICE position) into the process adaptation (P). The radial position of the drive unit is determined by a coding pin (O) in the calibration cham- ber and an opening (AJ) in the drive unit. -
Page 27: Immersion Tube
Immersion Tube SensoGate WA 132 The wetted part of the immersion tube is made of PTFE. The upper part of the immersion tube (T) is provided with a stainless steel endpiece with bayonet contour (U). This endpiece serves for connecting the immersion tube to the drive unit of the retractable fitting. The endpiece is aligned with the three windows (Q) in the immersion tube and non-rotatably con- nected to the tube body (see the centerline in the figure below). -
Page 28: Removing The Immersion Tube
Immersion Tube SensoGate WA 132 Removing the Immersion Tube WARNING! Warning! No process medium and no process pressure! To separate the retractable fitting safely from the process, make sure that it is disconnected from all process media and process pressure. NOTICE! Before working on the drive unit, make sure that the retractable fitting is in SERVICE position (see page 13). -
Page 29: Installing The Immersion Tube
Immersion Tube SensoGate WA 132 Installing the Immersion Tube Conditions: The retractable fitting must be in PROCESS position (see page 14). 1) Push the O-ring (D) (sensor gasket) onto the sensor (A) as shown. NOTICE! Make sure that there is no further O-ring in the immersion tube (T) (installed by mistake). -
Page 30: Calibration Chamber
Calibration Chamber SensoGate WA 132 Removing the Calibration Chamber 1) Remove the outlet connector (AM). Take off the loose flange if required. 2) Loosen and remove the two screws (AK) from the calibra- tion chamber (using screwdriver TX 25). 3) Pull the calibration chamber (K) vertically out of the process adaptation (P). -
Page 31: Installing The Calibration Chamber
Calibration Chamber SensoGate WA 132 Installing the Calibration Chamber 1) Align the guiding edges (AI) of the calibration chamber (K) and insert it in the process adaptation (P). 2) Always secure the calibration chamber with both screws (AK). 3) Install the loose flange (LF) if required. -
Page 32: Installation Dimensions
Installation Dimensions SensoGate WA 132 WA 132, Short Immersion Depth for Sensors with Solid Electrolyte PG 13,5 PG 13.5... - Page 33 Installation Dimensions SensoGate WA 132 WA 132 for Sensors with Liquid Electrolyte PG 13,5 PG 13.5...
- Page 34 Installation Dimensions SensoGate WA 132 WA 132, Long Immersion Depth for Sensors with Solid Electrolyte * approx. 635 mm clearance for * Freiraum ca. 635 mm für sensor cable loop or protective cap Sensorkabelbogen oder Schutzhaube PG 13,5 PG 13.5...
- Page 35 Installation Dimensions SensoGate WA 132 Process Adaptation Loose flange, DIN DN32 ... DN100 ANSI 316, 1½“ ... 3“ short and long immersion depth...
-
Page 36: Specifications
Specifications SensoGate WA 132 Permissible process pressure and 6 bar (at 0 ... 40 °C) temperature 6 bar (40 °C), falling linearly to 3 bar (100 °C) 3 bar (max. 1 hour) at 135 °C Ambient temperature -10 ... +70 °C Ingress protection IP 66 Housing material... -
Page 37: Maintenance
Maintenance SensoGate WA 132 Maintenance Intervals As the process conditions (pressure, temperature, chemically aggressive media etc.) depend on the specific application, we can only give recommendations for maintenance intervals. The following maintenance intervals are generally recommended: Maintenance interval Operations required First inspection Move the retractable fitting to the SERVICE position after a few days/weeks... -
Page 38: Servicing The Drive Unit
Maintenance SensoGate WA 132 Servicing the Drive Unit The drive unit must be removed, for example: • for general maintenance or inspection • to clean the calibration chamber, e.g., after a sensor has broken • to change the sensor / calibration-chamber gaskets •... -
Page 39: Sealing Kits For Maintenance And Servicing
Maintenance SensoGate WA 132 Sealing Kits for Maintenance and Servicing The sealing kits are available in different materials. The smaller sealing kits (“Set X/1”) only contain gaskets for direct contact with the process. The extended sealing kits (“Set X/2”) also include gaskets for contact with the rinse medium. NOTICE! Take account of the process adaptations. -
Page 40: Accessories / Spare Parts
Accessories / Spare Parts SensoGate WA 132 For ordering, use the part numbers beginning with ZU, e.g., ZU 0680. ZU 0680 SensoGate Service Set, Basic These tools are suitable for minor maintenance operations. They help separating the drive unit from the process adaptation and replacing the immersion tube including sensor gasket maintenance. - Page 41 Accessories / Spare Parts SensoGate WA 132 ZU 0733 Adapter for Free Hose Connection, with electrical limit switches, PP housing This adapter is used for operating the SensoGate WA 132 via multi- plug without the Unical 9000 (X) controller and the corresponding media connection.
-
Page 42: Declaration Of Contamination
I have answered the above questions to the best of my knowledge. Name: Company: Date: Signature: Knick Elektronische Messgeräte GmbH & Co. KG, Beuckestraße 22, 14163 Berlin, Germany Phone +49 (0) 30 801 91 - 0 / Fax +49 (0) 30 801 91-200 E-mail: knick@knick.de / Internet: www.knick.de... -
Page 43: Index
Index SensoGate WA 132 Installing the calibration chamber 31 Accessories 41, 42 Electrostatic charging 4 Installing the drive unit 26 Adapter for free hose Equipotential bonding cable 23 Installing the immersion tube 29 connection 40 EU Declaration of Conformity 42 Installing the media Air supply 40 Extension (V), sensor connection 12 Ambient temperature 5 installation 19... - Page 44 Index SensoGate WA 132 PROCESS position, illustrations 14 Sensor with solid electrolyte, Process pressure (Ex) 36 assembly (long immersion) 19 Unlocking the bayonet Process pressure ratings 36 Sensor with solid electrolyte, coupling 21 Process temperature (Ex) 36 assembly (short immersion) 16 Unlocking the travel movement 11 Product coding 7 Sensor with solid electrolyte, Unlock position 11 Protective cap 40...
- Page 45 Notes...
- Page 48 © 2020 Subject to change Knick Elektronische Messgeräte GmbH & Co. KG Beuckestr. 22 14163 Berlin Germany Phone: +49 30 80191-0 Fax: +49 30 80191-200 Email: knick@knick.de Web: www.knick.de 20200622 TA-215.500-KNEN02 097351...
