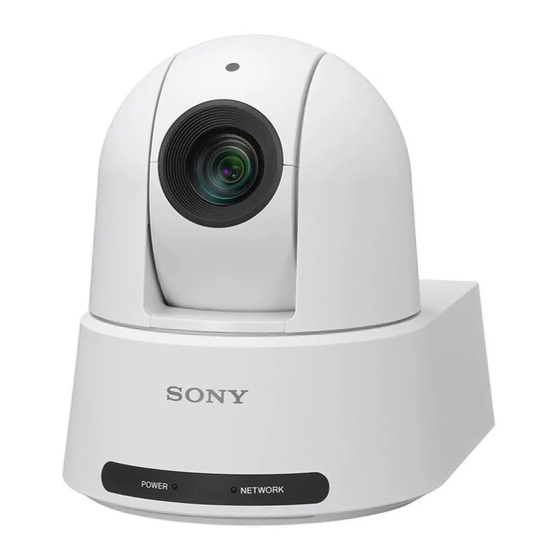

Sony SRG-A40 Manual

Srt introduction
Hide thumbs Also See for SRG-A40:
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Guide | SRG-A40/SRG-A12
SRT introduction
Version 1.0

Advertisement

Table of Contents
loading

Related Manuals for Sony SRG-A40

Summary of Contents for Sony SRG-A40

  • Page 1 Technical Guide | SRG-A40/SRG-A12 SRT introduction Version 1.0...

  • Page 2: Table Of Contents

    SRT introduction Technical Guide | SRG-A40/SRG-A12 C O N T E N T S CONTENTS ....................1 1. Overview ..................... 2 2. Flowchart .................... 3 3. Pre-configuration Settings ..............4 3.1. Set IP address by using the RM-IP Setup Tool ........4 3.2.

  • Page 3: Overview

    ・Services and software content are subject to change without notice. ・Separate registration and/or payment may be required. Please note that Sony Corporation is not responsible for any claim, from customers or third parties, arising from any use of services and software provided by other companies Sony Version 1.0...

  • Page 4: Flowchart

    SRT introduction Technical Guide | SRG-A40/SRG-A12 Flowchart The following flowchart shows an outline of the procedure for enabling the SRT connectivity function of the camera described in the next chapter. *Please refer to the manual of devices/apps to be connected.

  • Page 5: Pre-Configuration Settings

    SRT introduction Technical Guide | SRG-A40/SRG-A12 Pre-configuration Settings This chapter describes some pre-configuration settings you will need before activating the SRT function for the camera. 3.1. Set IP address by using the RM-IP Setup Tool For IP communication, appropriate IP address needs to be set to the camera. You can use RM-IP Setup Tool to assign IP address to the camera.

  • Page 6: Audio Setting

    SRT introduction Technical Guide | SRG-A40/SRG-A12 3.4. Audio setting Please configure audio setting in [Stream] > [Audio Stream] tab in Web App Menu accordingly. Sony Version 1.0...

  • Page 7: Srt Setting

    SRT introduction Technical Guide | SRG-A40/SRG-A12 3.5. SRT Setting Before starting SRT transmission, port number to be used and whether the camera is set to Caller mode or Listener mode needs to be determined. Caller means that the camera initiates the transmission, while Listener means that the camera waits for it.
  • Page 8 SRT introduction Technical Guide | SRG-A40/SRG-A12 destination device/app as the Caller. Some device might support either the Caller or the Listener only. In that case, set the camera’s mode properly to establish the connection. Please refer to the manual of a device or an app to be connected as well.
  • Page 9 SRT introduction Technical Guide | SRG-A40/SRG-A12 3.5.1. When setting camera as the Caller Open [Stream] > [Stream] tab of the Web App Menu, and select [SRT-Caller] in [Stream Setting] > [Setting]. Set the prefix letters of “srt://” followed by a destination IP address to connect to and [:] followed by the port number in [SRT] >...
  • Page 10 SRT introduction Technical Guide | SRG-A40/SRG-A12 3.5.2. When setting camera as the Listener Open [Stream] > [Stream] tab of the Web App Menu and select [SRT-Listener] in [Stream Setting] > [Setting]. Set the port number of the camera in [SRT] > [Port Number]. Press [OK] to complete the setting.
  • Page 11 SRT introduction Technical Guide | SRG-A40/SRG-A12 https://www.srtalliance.org/srt-deployment-guide/ Sony Version 1.0...
  • Page 12 SRT introduction Technical Guide | SRG-A40/SRG-A12 3.5.4. Encryption setting Encryption setting can be used when transmitted data needs to be encrypted by a passphrase. Select the key length of the encryption from [SRT] > [Encryption]. If encryption is not required, please select [Off].
  • Page 13 SRT introduction Technical Guide | SRG-A40/SRG-A12 3.5.5. Adaptive Rate Control (ARC) setting In order to enable the Adaptive Rate Control setting, go to [SRT] > [ARC], turn the slide switch to the right and press [OK] to complete the setting.

  • Page 14: Troubleshooting

    SRT introduction Technical Guide | SRG-A40/SRG-A12 Troubleshooting This chapter describes how to manage problems may occur for SRT function of the camera.  Unable to connect [Case 1] Check the network connection. [Case 2] Check the Caller/Listener mode. If the camera is the Caller, make sure the destination device/app as the Listener.

  • Page 15: Appendix

    SRT introduction Technical Guide | SRG-A40/SRG-A12 Appendix 5.1. How to start/stop SRT transmission when the camera is set as the Caller Starting/stopping the SRT transmission when the camera is set as the SRT-Caller can be controlled using Web App Live Operation Screen. Please perform the SRT-Listener mode setting in the destination device/app in advance.
  • Page 16 SRT introduction Technical Guide | SRG-A40/SRG-A12 If the transmission starts successfully, mark is displayed in the upper right side of the Live Operation Screen. If the transmission is not successful, the following error dialog is displayed. Press [OK] to confirm and then review the SRT configuration of both the camera and the destination device/app and network environment etc..
  • Page 17 SRT introduction Technical Guide | SRG-A40/SRG-A12 If the transmission is successfully stopped, mark in the upper right side of the Live Operation Screen will be dissappered. Sony Version 1.0...

  • Page 18: Revision History

    SRT introduction Technical Guide | SRG-A40/SRG-A12 Revision History Date Revision Description 2023/05/31 First release Sony Version 1.0...
  • Page 19 This document, in whole or in part, may not be reproduced or transferred for any purpose without prior written approval from Sony Corporation. Sony Corporation reserves the right to make any modification to this document or the information contained herein at any time without notice.
