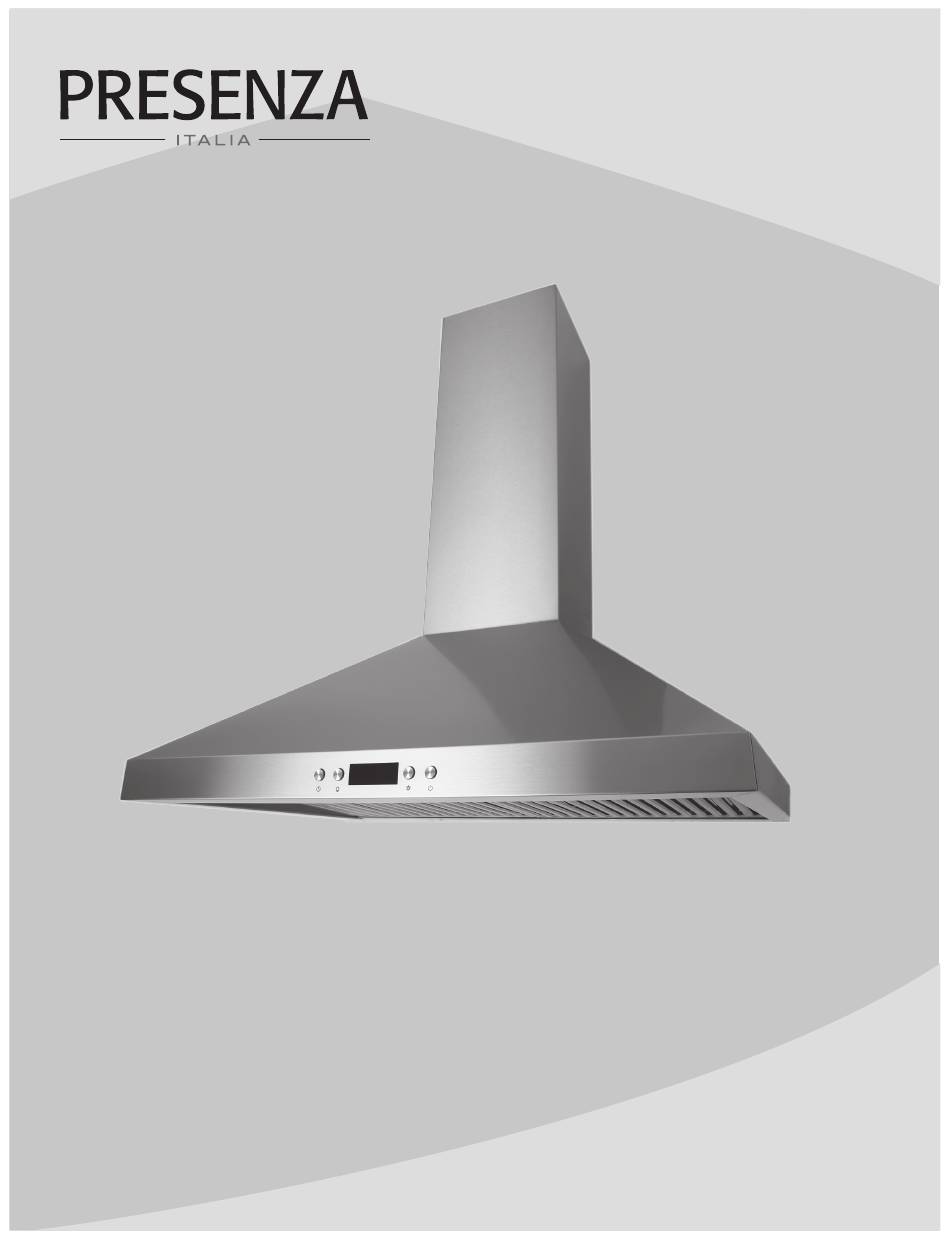

Presenza QR0312 Installation Manual And User's Manual

Chimney style range hood

Advertisement

Quick Links

CHIMNEY STYLE
RANGE HOOD
INSTALLATION GUIDE
AND USER MANUAL
Model No. QR0312

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QR0312 and is the answer not in the manual?

Questions and answers

Summary of Contents for Presenza QR0312

  • Page 1 CHIMNEY STYLE RANGE HOOD INSTALLATION GUIDE AND USER MANUAL Model No. QR0312...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ......2 Operation ....... . . 13 Safety Information .
  • Page 3 Safety Information Cooking Safety Information WARNING: To reduce the risk of fire, use only metal duct 1 . Never leave the range hood unattended when in use . work . Never use plastic duct work . 2 . Never cook over open flames under the range hood . WARNING: To reduce the risk of fire or electric shock, do 3 .
  • Page 4: Warranty

    Warranty ONE YEAR LIMITED WARRANTY A thorough inspection must be made before installation and any damage must be promptly reported . We will not be liable for failures or damage that could have been discovered or avoided by proper inspection and testing prior to installation . Conglom Kitchen &...
  • Page 5: Pre-Installation

    Pre-Installation TOOLS REQUIRED Measuring tape Level Utility knife Adjustable Marker or pencil Duct tape wrench Electric drill Flathead Phillips screwdriver or powered screwdriver screwdriver Safety goggles Safety gloves HARDWARE INCLUDED NOTE: Parts not shown to actual size. Part Description Quantity Toggle Bolt M5 x 16 mm Screw / Washer M4 x 8 mm Tapping Screws...
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Range hood (including pre-installed controls, lights, blower, filters and damper) Lower chimney Upper chimney Hood bracket Chimney support bracket...
  • Page 7: Planning Installation

    Pre-Installation (continued) PLANNING INSTALLATION WARNING: Always wear safety goggles and gloves Number of people required: 2 or more during installation . Carefully check the range hood for damage and for missing parts prior to installation . If there is any damage or if you are missing parts, NOTE: do not proceed with the installation .
  • Page 8 Pre-Installation (continued) 6 . Adjust old duct work or install new duct work, as necessary, by following these guidelines: - Your venting system must vent to the outdoors either horizontally through the back wall (4) or vertically through the roof (5) . - A straight, short duct run will allow the hood to perform most efficiently .
  • Page 9 Pre-Installation (continued) WIRING CONNECTION REQUIREMENTS DANGER: Risk of electrical shock . This range hood Installation work and electrical wiring must be done by a qualified must be properly grounded . person(s) in accordance with all applicable codes and standards, including fire-rated construction . DANGER: Turn off the power circuit breaker or the OBSERVE ALL GOVERNING CODES AND ORDINANCES WARNINGS power switch on the junction box before installing this...
  • Page 10: Installation

    Installation DRILLING THE PILOT HOLES Ceiling 0.8 in. (20 mm) - Draw a vertical line (1) on the supporting wall up to the ceiling, or as high as practical, at the center of the area in which the hood will be installed . 5.36 in.
  • Page 11 Installation (continued) INSTALLING THE DAMPER (IF NECESSARY) WARNING: Sharp edges . Wear safety gloves . CAUTION: Be very careful when installing the damper . Applying too much force or bending the damper too much may damage or break the damper hinge ends . The damper is pre-installed at the factory .
  • Page 12 Installation (continued) INSTALLING THE CHIMNEY WARNING: Sharp edges . Wear safety gloves . CAUTION: Minimize movement of the chimney extensions to avoid scratches . - Remove the plastic covering on the chimney extensions (B,C) and place them on the floor . - Lower the upper chimney (C) onto the lower chimney (B) .
  • Page 13: Operation

    Operation There are four buttons, ON/OFF, SPEED, LIGHT and CLOCK SETUP . The center screen will show the clock (12 hour) . TURNING ON/OFF THE UNIT DELAY SHUT OFF FUNCTION - Press (5) to turn on the power . - While the fan is working, press (5) once, the fan and lights When you turn the power on, the unit starts working in low will automatically turn off after 2 minutes .
  • Page 14: Maintenance

    Maintenance FILTERS DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance . When filters wear out, replace them with similar filters with stainless Touching circuitry inside the range hood while it is steel clips .
  • Page 15: Care And Cleaning

    Care and Cleaning RANGE HOOD WARNING: Failure to maintain basic standards of care and cleaning of the range hood will increase the risk of fire . The range hood should be cleaned (regularly internally and externally) to preserve its appearance and performance . Do Not: - Always clean in the direction of the grain (original - Do not use corrosive or abrasive detergents, steel...
  • Page 16: Troubleshooting

    Troubleshooting DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance . Touching circuitry inside the range hood while it is energized will result in death or serious injury . Problem Solution The range hood will not operate .
  • Page 17: Specifications

    LCD Screen 1.5A lock base light bulb 10.2 in. (260 mm) H QR0312 Lower Chimney 8.74 in. W x 8.82 in D x 24.02 in H (222 mm W x 224 mm D x 610 mm H) Upper Chimney 8.66 in. W x 8.74 in D x 24.02 in H (220 mm W x 222 mm D x 610 mm H)
  • Page 18: Service Parts

    Service Parts If you are missing parts or if you require replacement parts, please contact our customer service team at customer .service@conglomkb .com or 1-877-333-0098 (8:30 am – 5 pm, EST, Monday–Friday) . Identify the required part(s) and have the part number(s) ready . Part Description Code Quantity...
  • Page 19 Imported by: St-Laurent, Québec, H4S 2C3 1-877-333-0098 customer.service@conglomkb.com www.conglomkb.com Made in China Retain this manual for future use .
