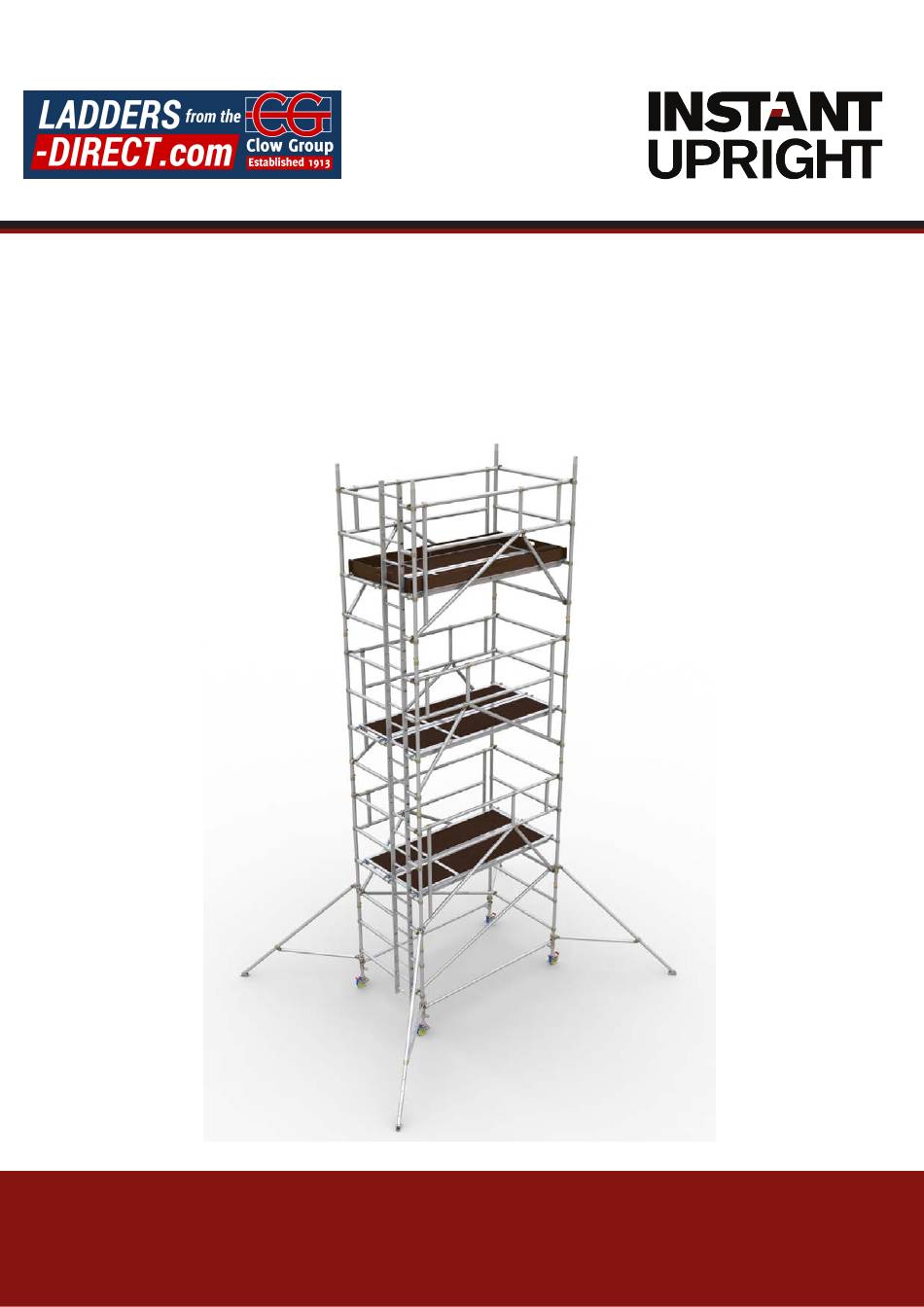

- Page 1 Span 500, 500B, 500X Advance Guard Rail System Instruction Manual DESIGNATION SPAN 500 AGR Double Width CEN designation of this instruction manual EN 1004 – 3 — 8/12 — XXXD EN 1298 — IM — en SPAN 500 AGR Single Width Rev-01 EN 1004 —...
-
Page 2: Assembly Process
WARNING NEVER STAND ON AN UNGUARDED PLATFORM SAFE WORKING LOADS AND WORKING HEIGHTS The safe working load at each level of platform is 275kg evenly distributed, regardless of whether one or two platforms are installed. Therefore, even if two platforms are installed side by side, total cumulative load shall not exceed 275kg distributed. -
Page 3: Usage Advice
• Lightly oil spring mechanism of the hooks. • For transport and storage, components are best stored vertically. • Damaged parts must be repaired or replaced; refer to the Instant Upright website for further advice or contact your equipment supplier for advice. - Page 4 MOVING AGR TOWERS To Move the tower to a new position, first prepare the tower. • Check that the wind speed does not exceed 29km/h (8.1m/s). • Ensure the tower is empty (material and personnel). • Check for overhead obstructions including electrical cables. •...
- Page 5 STABILISERS Stabilisers are to be used, when specified, to guarantee the structural stability of the tower. Fig 2 Fig 3 Fig 4 ALWAYS ENSURE STABILISER SIZE IS CORRECT AND ABLE TO SUPPORT TOWER Lightly tighten the upper clamps above the sixth rung on each corner post. Position the lower clamp above the bottom rung.
- Page 6 SPECIFIC PRODUCT INFORMATION Table of parts and quantities Span 500 AGR Double Width Towers - 2m, 2.5m and 3m lengths to EN1004 and WAHR Platform Height (m) Work Height (m) Tower Height (m) Tower Weight in kg (2m length) Tower Weight in kg (2.5m length)
- Page 7 DOUBLE-WIDTH TOWER 6m...
- Page 8 DOUBLE-WIDTH TOWER 6m...
- Page 9 SPECIFIC PRODUCT INFORMATION Table of parts and quantities Span 500 AGR Single Width Towers - 2m, 2.5m and 3m lengths to EN1004 and WAHR Platform Height (m) Work Height (m) Tower Height (m) Tower Weight in kg (2m length) Tower Weight in kg (2.5m length)
- Page 10 SINGLE-WIDTH TOWER 6m...
- Page 11 SINGLE-WIDTH TOWER 6m...
