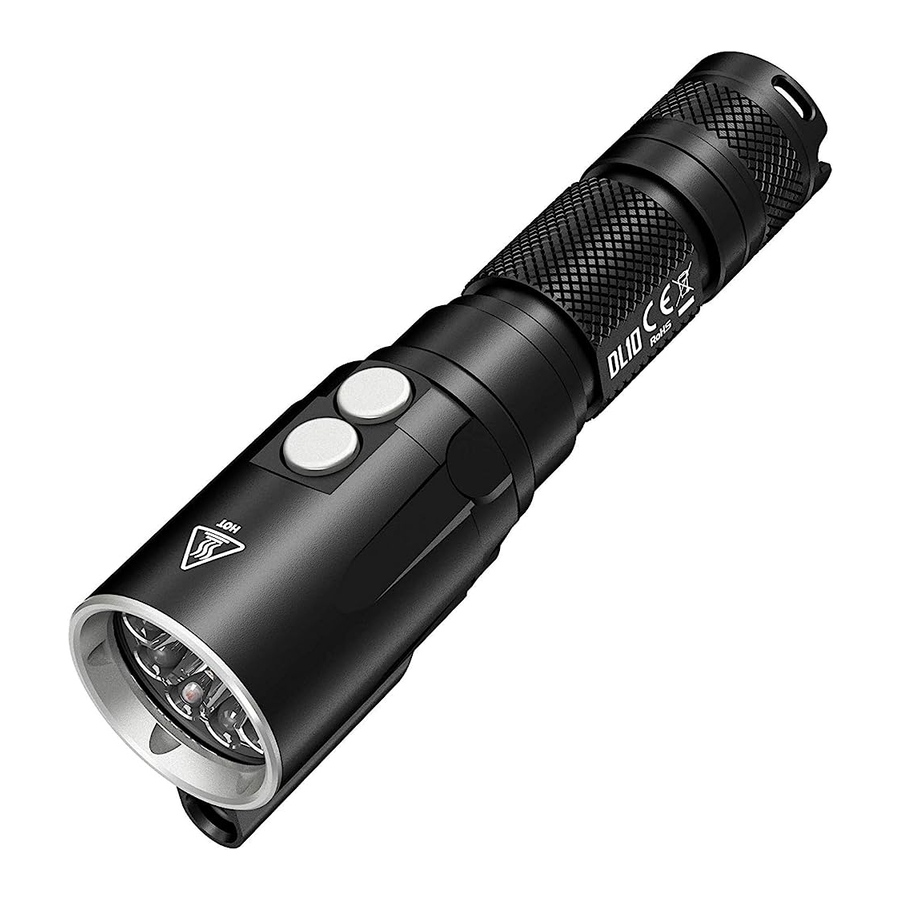

Nitecore DL10 - Diving Light Manual

Features

  • A diving light specially designed for underwater activities
  • Utilizes a CREE XP-L HI V3 LED to emit a max output of 1000 lumens
  • Integrated red light serves as an auxiliary light supplement for underwater photography
  • Crystal Coating Technology combined with "Precision Digital Optics Technology" for extreme reflector performance
  • Max beam intensity up to 12,400cd and beam distance up to 223 meters
  • High efficient constant current circuit board provides max runtime of 9 hours
  • Built-in threads for connecting the scuba diving pointer
  • Reverse polarity protection
  • Toughened ultra-clear mineral glass with anti-reflective coating
  • Constructed from aero grade aluminum alloy with HAIII military grade hard-anodized finish
  • In accordance with IPX8 and 30 meters submersible
  • Impact resistance up to 1 meter
  • Tail stand capability

Dimension

Length: 133.1mm (5.24")

Head Diameter: 34mm (1.34")

Tail Diameter: 25.4mm (1")

Diameter of the Pointer: 8mm (0.31")

Total Length: 300mm (11.81") (the scuba diving pointer included)

Weight: 143.1g (5.05oz) (battery excluded)

Accessories

Scuba Diving Pointer, Lanyard, Spare O Ring×5 (including 4 for the flashlight and 1 for the pointer)
Accessories

Battery Options

TYPE Nominal voltage Compatible
18650 Li-ion battery 18650 3.7V Y (Recommended)
Primary Lithium battery CR123 3V Y (Recommended)
Rechargeable Li-ion battery RCR123 3.7V Y (Recommended)

Output & Runtime

Output & Runtime

NOTE: The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1, using 1x18650 battery (3.7V 3400mAh) under laboratory conditions. The data may vary in real-world use due to different battery use or environmental conditions.

* The runtime for High Mode of White Light is the testing result before starting temperature regulation.

Operating Instructions

Battery Installation

Insert battery with the positive poles pointing forward as illustrated in the diagram.
Battery Installation

  1. Ensure batteries are inserted with the positive (+) end pointing to the head. The DL10 will not operate with incorrectly inserted batteries.
  2. Avoid direct eye exposure.
  3. When the DL10 is kept in a backpack or left unused for extended periods of time, Nitecore recommends to remove all batteries to prevent accidental activation of the flashlight or battery leakage.

ON/OFF

Turn on: Long press switch 1 to enter the high mode of the white light.
Long press switch 2 to turn on the red light. White light and red light can be turned on simultaneously.

Turn off: When the white light is on, long press switch 1 to turn the white light off; and when the red light is on, long press switch 2 to turn the red light off.

Brightness Levels

White Light: Two brightness levels selectable. When the white light is on, tapping the switch 1 to change the brightness.

Red Light: Two brightness levels selectable. When the red light is on, tap switch 2 to change the brightness.

Special Mode (White Light Strobe)

Whether the DL10 is on or off, long press switch 1 and switch 2 simultaneously to enter strobe mode. Tap any switch to exit and return to the previously used mode.

ATR (Advanced Temperature Regulation)

With Advanced Temperature Regulation module, the DL10 regulates its output and adapts to the ambient environment, maintaining optimal performance.

Replacing Battery

Batteries should be replaced when the following occurs: The white LED blinks quickly for 2 seconds and automatically lowers its output.

NOTE: Please ensure the surface of the light is dry before taking the battery out for replacement.
