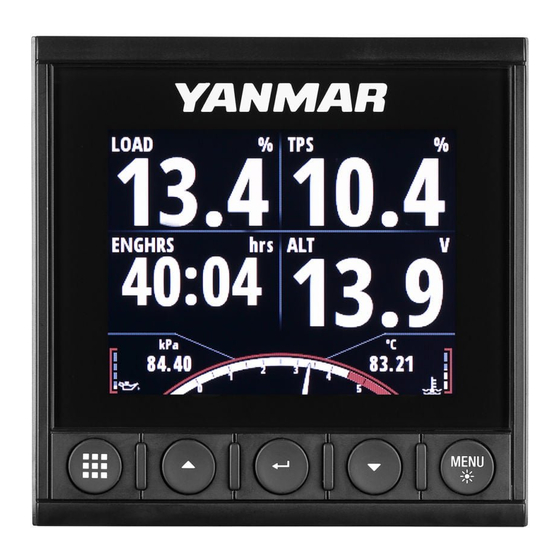

Yanmar YD42 Installation Manual
Hide thumbs
Also See for YD42:
- Operation manual (56 pages) ,
- Quick manual (4 pages) ,
- Quick manual (52 pages)
Advertisement
Quick Links

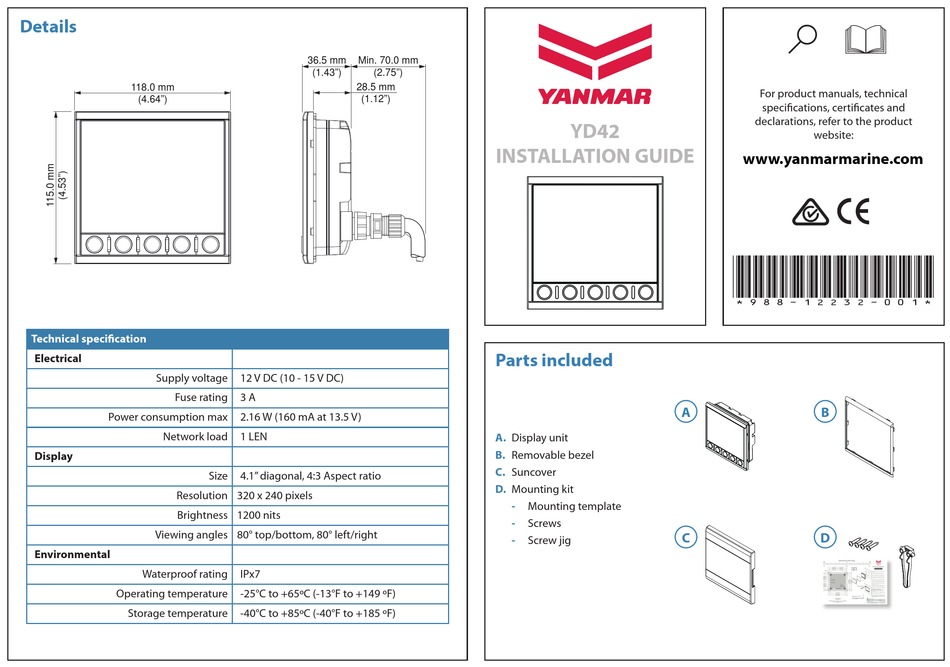

Details
118.0 mm
(4.64")
Technical specification
Electrical
Supply voltage
Fuse rating
Power consumption max
Network load
Display
Resolution 320 x 240 pixels
Brightness 1200 nits
Viewing angles 80° top/bottom, 80° left/right
Environmental
Waterproof rating
Operating temperature
Storage temperature
36.5 mm
Min. 70.0 mm
(1.43")
(2.75")
28.5 mm
(1.12")
12 V DC (10 - 15 V DC)
3 A
2.16 W (160 mA at 13.5 V)
1 LEN
Size
4.1" diagonal, 4:3 Aspect ratio
IPx7
-25°C to +65ºC (-13°F to +149 ºF)
-40°C to +85ºC (-40°F to +185 ºF)
YD42
INSTALLATION GUIDE
Parts included
A.
Display unit
B.
Removable bezel
C.
Suncover
D.
Mounting kit
-
Mounting template
-
Screws
-
Screw jig
For product manuals, technical
specifications, certificates and
declarations, refer to the product
website:
www.yanmarmarine.com
*988-12232-001*
A
B
C
D
