Summary of Contents for Yanmar YD25

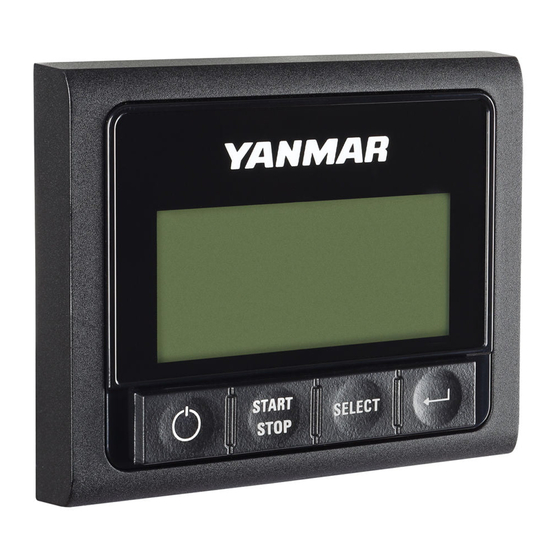

- Page 1 INSTALLATION MANUAL INSTRUMENT PANEL YD25 Dimensions Contents of box Contents Quantity Sun-cover Bezel YD25 panel Gasket Spinlock Nut Installation manual...
- Page 2 Remove the protective sheet from the gasket (D) and attach the gasket to the dashboard (X). After installing the gasket, insert the YD25 display (C) in the hole. Screw and fix the nut (E) from the backside with tightening torque 4 Nm (2.95 lbf ft).
- Page 3 Installation (Harness) Connect YD25 display with the harness as shown below: Next Helm Extension Harness Terminator 164000-22210 164000-29000 164000-22220 164000-22230 164000-22240 Connect YD25 Harness Fuse (3A) 164100-21030 Accessory Power 12VDC: 3A Max Mating Buzzer Connector: YD25 DT06-2S Panel (TE) Black...
- Page 4 Hole cutting template NOTE: Please check the dimensions before using the template 66.0mm (2.60”) Outline of the Panel...
