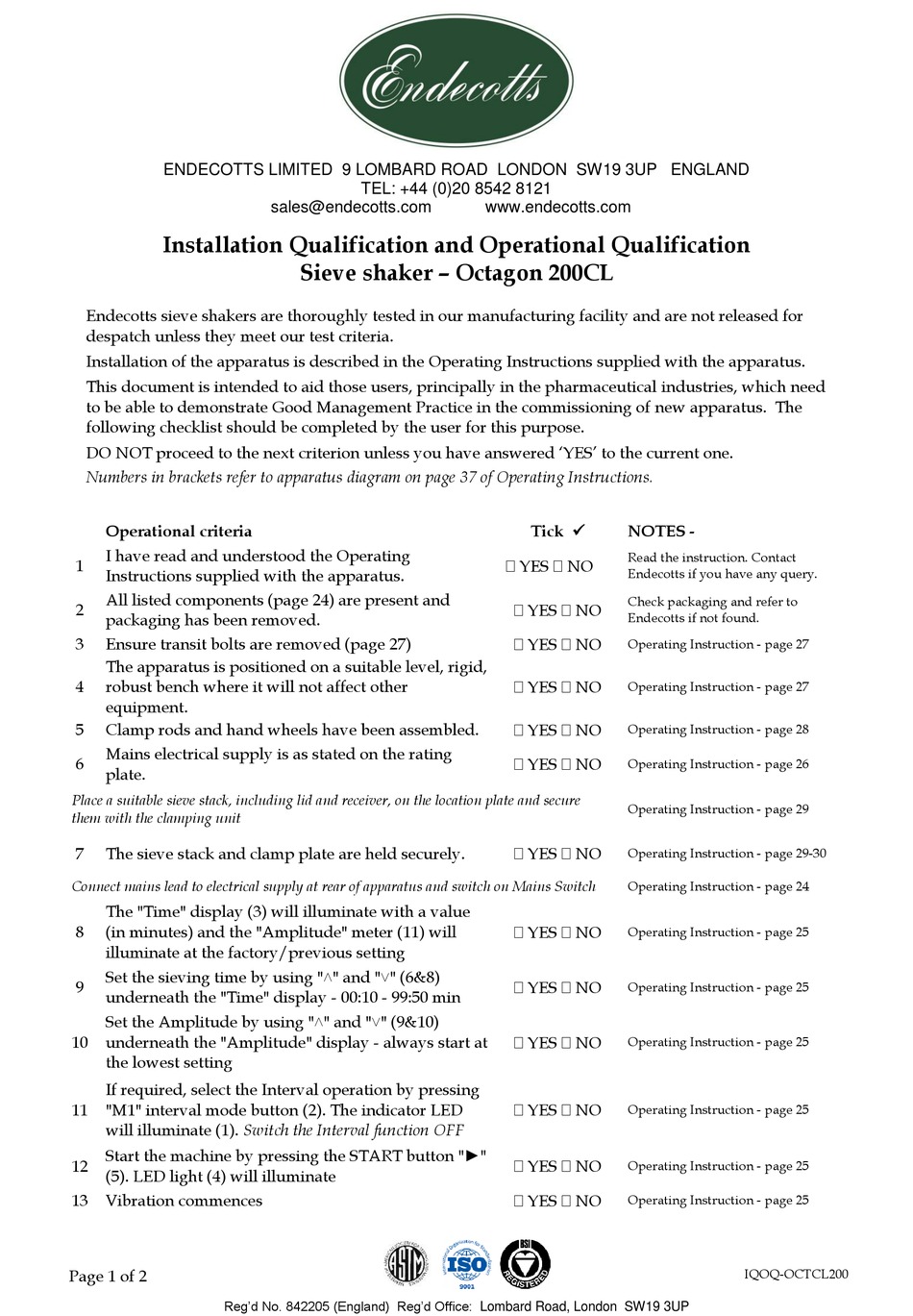

Installation Qualification and Operational Qualification
Endecotts sieve shakers are thoroughly tested in our manufacturing facility and are not released for
despatch unless they meet our test criteria.
Installation of the apparatus is described in the Operating Instructions supplied with the apparatus.
This document is intended to aid those users, principally in the pharmaceutical industries, which need
to be able to demonstrate Good Management Practice in the commissioning of new apparatus. The
following checklist should be completed by the user for this purpose.
DO NOT proceed to the next criterion unless you have answered 'YES' to the current one.
Numbers in brackets refer to apparatus diagram on page 37 of Operating Instructions.

Operational criteria

I have read and understood the Operating
1
Instructions supplied with the apparatus.
All listed components (page 24) are present and
2
packaging has been removed.
3 Ensure transit bolts are removed (page 27)
The apparatus is positioned on a suitable level, rigid,
4 robust bench where it will not affect other
equipment.
5 Clamp rods and hand wheels have been assembled.
Mains electrical supply is as stated on the rating
6
plate.
Place a suitable sieve stack, including lid and receiver, on the location plate and secure
them with the clamping unit
7 The sieve stack and clamp plate are held securely.
Connect mains lead to electrical supply at rear of apparatus and switch on Mains Switch
The "Time" display (3) will illuminate with a value
8 (in minutes) and the "Amplitude" meter (11) will
illuminate at the factory/previous setting
Set the sieving time by using "˄" and "˅" (6&8)
9
underneath the "Time" display - 00:10 - 99:50 min
Set the Amplitude by using "˄" and "˅" (9&10)
10 underneath the "Amplitude" display - always start at
the lowest setting
If required, select the Interval operation by pressing
11 "M1" interval mode button (2). The indicator LED
will illuminate (1). Switch the Interval function OFF
Start the machine by pressing the START button "►"
12
(5). LED light (4) will illuminate
13 Vibration commences
Page 1 of 2
Reg'd No. 842205 (England) Reg'd Office: Lombard Road, London SW19 3UP
TEL: +44 (0)20 8542 8121
sales@endecotts.com
Sieve shaker – Octagon 200CL
www.endecotts.com
Tick  NOTES -
Read the instruction. Contact
YES NO
Endecotts if you have any query.
Check packaging and refer to
YES NO
Endecotts if not found.
YES NO
Operating Instruction - page 27
YES NO
Operating Instruction - page 27
YES NO
Operating Instruction - page 28
YES NO
Operating Instruction - page 26
Operating Instruction - page 29
YES NO
Operating Instruction - page 29-30
Operating Instruction - page 24
YES NO
Operating Instruction - page 25
YES NO
Operating Instruction - page 25
YES NO
Operating Instruction - page 25
YES NO
Operating Instruction - page 25
YES NO
Operating Instruction - page 25
YES NO
Operating Instruction - page 25
