- Page 1 USER GUIDE M100...
-
Page 2: Table Of Contents
The M100 User Guide Test Sieve Shaker _______________________________________________ Contents Description Pages 1 - 2 Setting Up Unpacking Page 3 Electrical Connections Page 4 Clamping Arrangement Page 5 Sieve Stacking Page 5 Operations Instructions Pages 6-7 Position and Function of Controls... -
Page 3: Description Pages

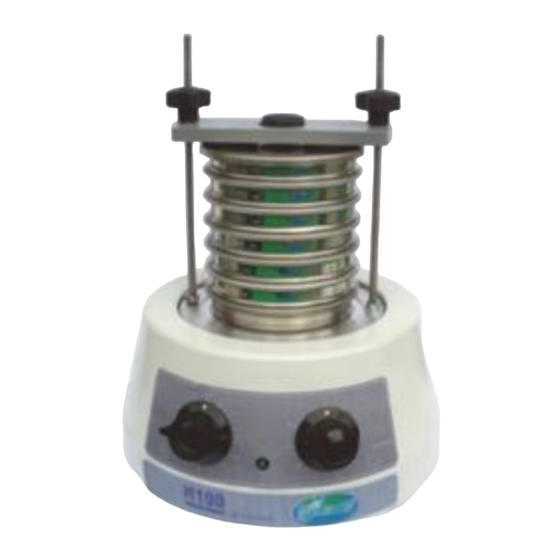

The M100 is a variable amplitude shaker, operated by a combined on/off switch, process timer providing a range of incremental periods or continuous running and an amplitude controller. - Page 4 Description CLAMP PLATE CLAMP RODS CLAMP KNOBS L.E.D (indicates mains power to instrument) SIEVE STACK PROCESS TIMER AMPLITUDE CONTROLLER...
-
Page 5: Setting Up Unpacking
The shaker should be set up according to the following procedure and the diagram on page 3. The following items should be removed from the case and checked before the M100 is operated: Take Care the shaker weighs 10 kg 1 off... -
Page 6: Electrical Connections
This equipment must be connected to mains earth The M100 sieve shaker is provided with a detachable 2 metre long mains cable, incorporating an IEC moulded connector and plug suitable for connecting to the local mains supply. Certain models may be supplied with a fused plug. In the event... -
Page 7: Clamping Arrangement
Setting Up Clamping Arrangement Fit one M6 nut and washer onto each clamp rod, then screw the pair of clamp rods into the location plate and tighten the locknuts Sieve Stacking Place the receiver centrally on the location plate in the appropriate recess. Stack the required sieves on top of the receiver. -
Page 8: Operations Instructions
Operation Instructions Position and Function of Controls Operators should be familiar with, and fully understand the controls and indicators before operating the machine. This should be done in conjunction with the diagram on page 8. 1. Mains Inlet - Mains inlet with integral line filter. Ensure the IEC connector on the mains lead is pushed fully into the mains inlet at the rear of the machine. -
Page 9: Process Timer
‘ ’, the shaker will continue running until the knob is returned to the Off position Turning timer knob allows the M100 to run for 1 min to 60 minutes clockwise Turning timer knob anti- clockwise allows the M100 to... -
Page 10: Maintenance
Maintenance The Endecotts M100 sieve shaker is maintenance free other than keeping external surfaces clean. Cleaning - The machine can be cleaned with a soft damp cloth using a solution of water and a mild liquid detergent. Do not use any solvents for cleaning Fuse - Should a fuse require replacement this must be of the identical type and rating as the original (see Page 7). -
Page 11: Spring Replacement
Maintenance Rubber Spring Replacement - If a problem develops with one of the springs it is recommended that all three are replaced. 1. Remove the clamp rods. 2. Stand the shaker upside down on the location plate. 3. Unscrew the three M8 cap screws to release the location plate and spring columns. -
Page 12: General Advice
General Advice Endecotts shakers are fully tested and factory checked before shipping to customers. No parts require lubrication or resetting unless disturbed. The sieve shaker has been constructed and factory tested to ensure correct operation when connected to the specified electricity supply indicated on the machine rating plate. -
Page 13: Specification
3 Full Height 3” The M100 has been designed to accommodate Diamond Industry Sieve Stacks. Dimensions: 24 cm (diameter) x 32cm (overall height) Weight: 10.5 Kg Endecotts policy is one of continuous development and we reserve the right to modify future models. - Page 14 ZM100-MAN1 ISSUE 09/12 ________________________________________________________________________________________________________________ Endecotts Limited, Lombard Road, London SW19 3TZ England Tel: + 44 (0) 20 8542 8121 Fax: + 44 (0) 20 8543 6629 E-mail: sales@endecotts.com web site http://www.endecotts.com...
