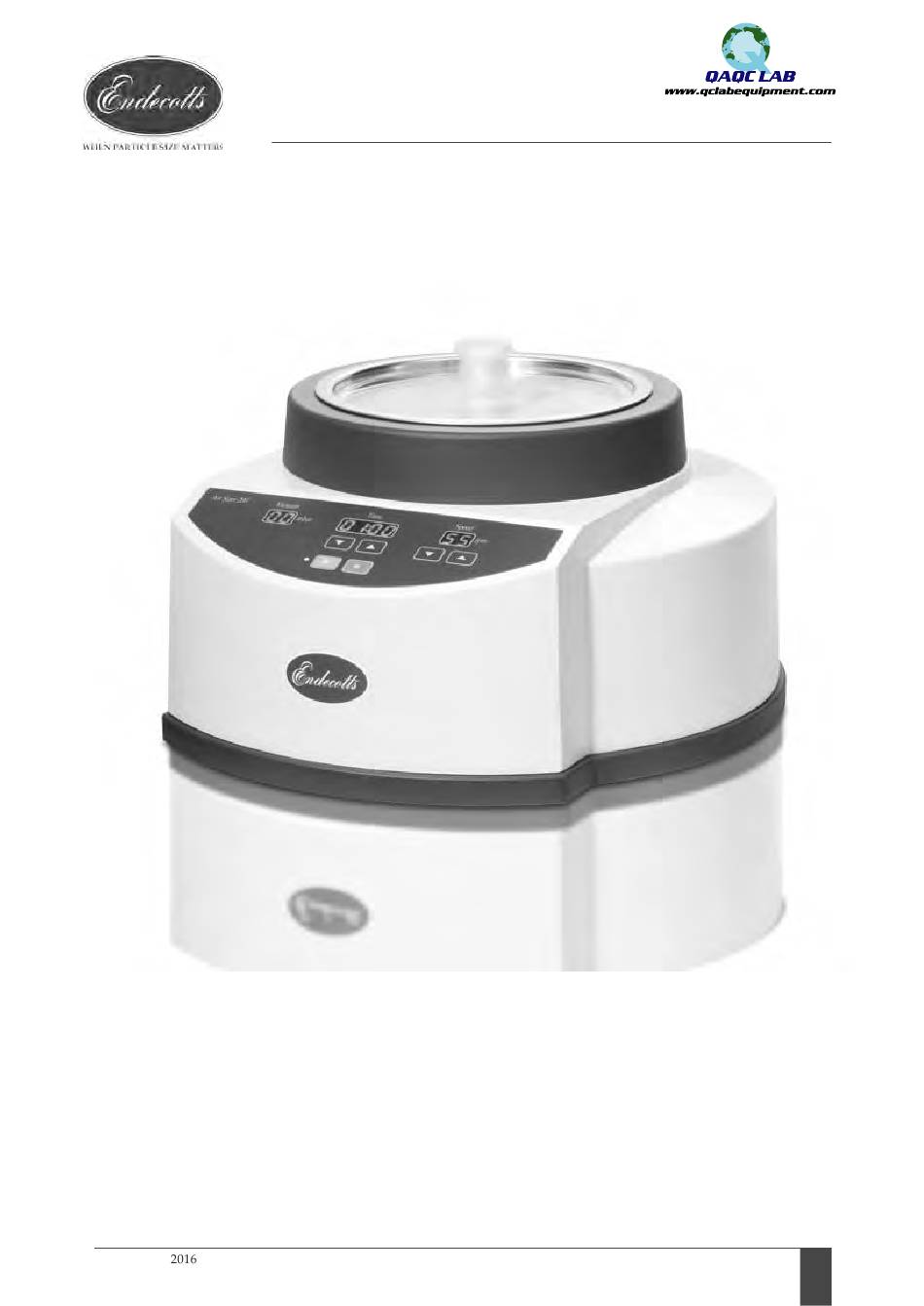

- Page 1 1. Technical specifications 1. Technical specifications 6. Operating instructions: Air Sizer 200 Copyright © by Endecotts Ltd. QAQC LAB 589 Rappahannock Drive White Stone Va 22578 TEL (804) 318-3686...
-
Page 2: Technical Specifications
General Information The Air Sizer 200 has an air nozzle, which is set rotating. The sieve with a Plexiglas lid is put on top of that. A vacuum unit generates a jet of air, which disperses the particles through the air nozzle on the sieve. -
Page 3: Specifications
100 - 240V 50/60 Hz Power connection 1-phase W x H x D 430 x 235 x 435 mm Net weight 14 kg Standards Copyright © by Endecotts Ltd. QAQC LAB 589 Rappahannock Drive White Stone Va 22578 TEL (804) 318-3686... -
Page 4: Mains Power Connection
CONNECTION PLEXIGLASS LID FOR AIR JET SIEVING TEST SIEVE Electrical Connection to vacuum cleaner AIR OUTLET CHANNEL NOZZLE COMPARTMENT CONTROL PANEL COVER BASE Copyright © by Endecotts Ltd. QAQC LAB 589 Rappahannock Drive White Stone Va 22578 TEL (804) 318-3686... - Page 5 8 & 9 “ “ and “ ” button reduces/increases the rpm, 5-55rpm, with digital display Display speed shows the speed of 5-55rpm Copyright © by Endecotts Ltd. QAQC LAB 589 Rappahannock Drive White Stone Va 22578 TEL (804) 318-3686...
-
Page 6: Electrical Connections
Setting Up Electrical connections Ensure that the voltage and frequency on the rating label, at the rear of the Air Sizer 200 correspond with the local electrical mains supply. Connect the Air Sizer 200 to the power supply using the connection cable provided. -
Page 7: Start-Up And Commissioning
Soft-Faced Mallet Test Sieving Manual. Position the Air Sizer 200 on a level, rigid and robust bench, suitable for the operation of the Air Sizer. Being placed on a level surface ensures symmetrical distribution of the sample over the sieve, during operation. -
Page 8: Switching On And Off
(f.e. before cleaning the device). Inserting the test sieve The Air Sizer 200 is intended for test sieves with a diameter of 203mm (8 inches). The range of mesh fineness extends from 10μm to approx. 4mm. Place the sieve in the nozzle compartment. - Page 9 Noise characteristics: The Air Sizer 200 itself is constructed in a manner that prevents any significant development of noise. The noise characteristics of the connected industrial vacuum cleaner depend on the set suction force and suction load. Copyright ©...
- Page 10 If compressed air is connected to one of the two air openings, the sieve lid and the sieve will be hurled out. This device may not be operated with compressed air. The Air Sizer 200 can be operated only with a suction extractor, such as for example a vacuum cleaner. Copyright ©...
-
Page 11: Operating Software
• Insert the type F IEC C14 connector on the vacuum cleaner into the IEC C13 panel-mounted outlet. The power for the industrial vacuum cleaner is supplied from the Air Sizer 200. Negative Pressure Display shows the neg. Pressure... (Range from 00 to 99 mbar) NOTE: If the neg. -
Page 12: Filter (Option)
Vacuum cleaner – changing the vacuum cleaner bag Change the vacuum cleaner bag or empty the dust container on your vacuum cleaner regularly as required. Copyright © by Endecotts Ltd. QAQC LAB 589 Rappahannock Drive White Stone Va 22578 TEL (804) 318-3686... - Page 13 DROP IN VACUUM Check whether • the sieve cover is attached; • the suction hose has been connected; • the vacuum cleaner bag is full. Copyright © by Endecotts Ltd. QAQC LAB 589 Rappahannock Drive White Stone Va 22578 TEL (804) 318-3686...
-
Page 14: Certificate Of Ce-Conformity
The CE-conformity of the Endecotts Analytical Sieve Shaker Type Air Sizer 200 is assured herewith. In case of a modification to the machine not previously agreed with us as well as the use of not licensed spare parts and accessories this certificate will lose its validity.
