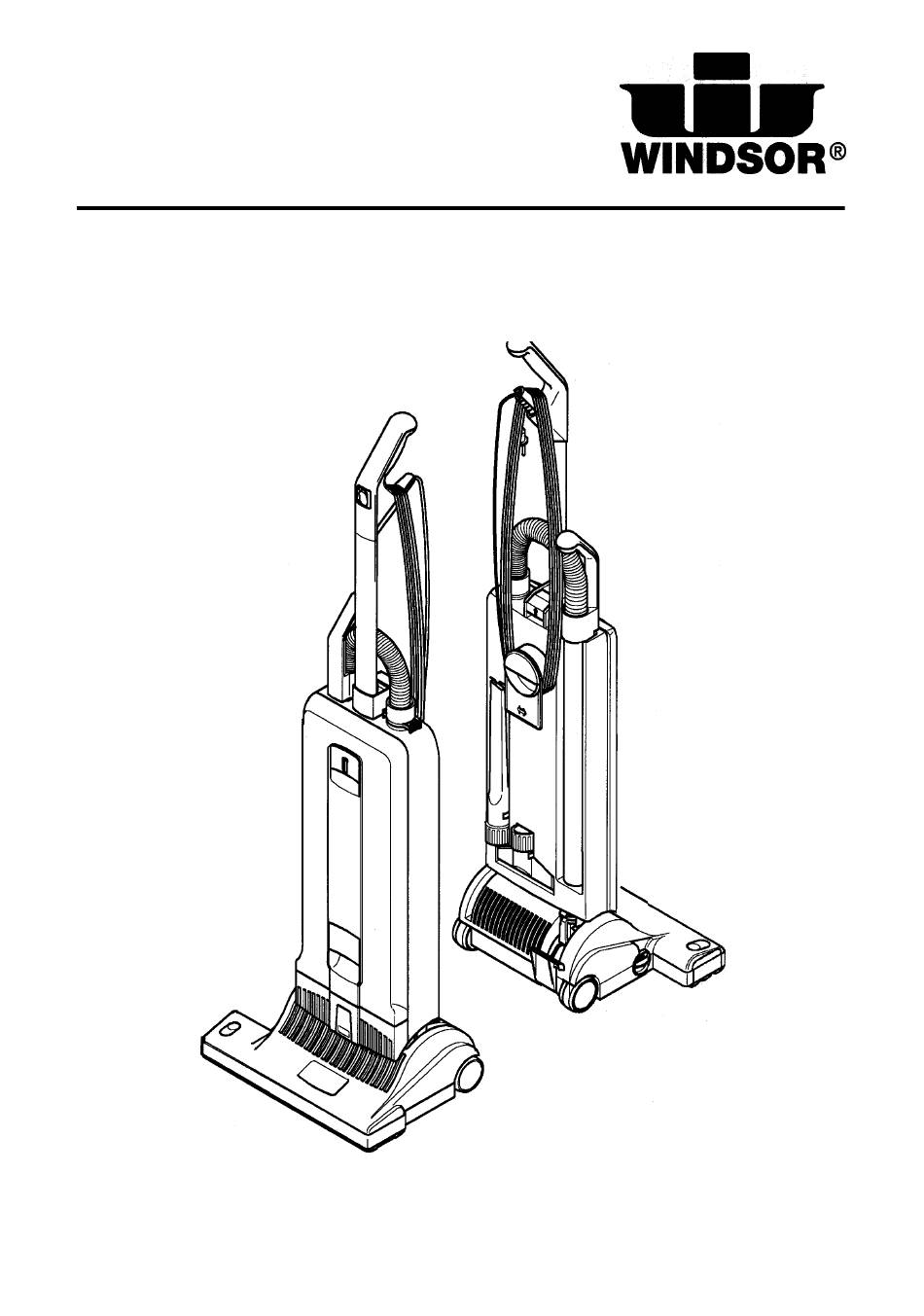

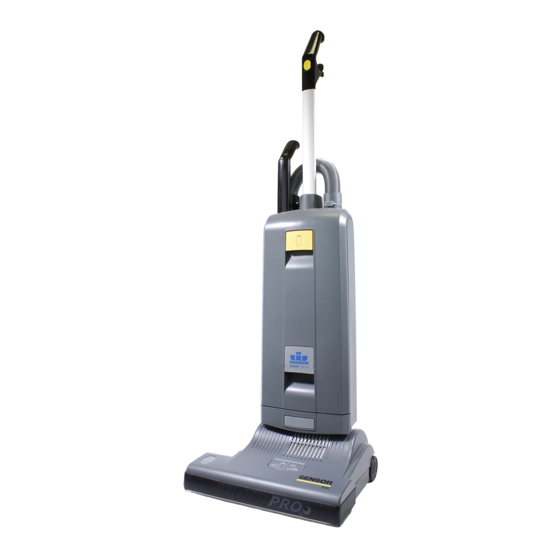

  • Page 1 SENSOR S15 980085 SENSOR S15 12/01/2002...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions must always be followed, including the following. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE WARN I NG : reduce the risk of fire, electric shock, or injury: Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. 2.

  • Page 3: Grounding Instructions

    This warranty is in lieu of all other warranties, expressed or implied, and releases WINDSOR from all other obligations and liabilities. It is applicable only in the U.S.A. and Canada, and is extended only to the original usedpurchaser of this product.

  • Page 4: Important Safeguards

    This vacuum cleaner is designed to be safe when used to perform cleaning functions. Should damage occur to electrical or mechanical parts, cleaner should be repaired by WINDSOR or competent service station before using in order to avoid further damage to machine or physical injury to user.
  • Page 5 1 Handle grip 2 On/Off switch 3 Handle assembly 4 Retaining ring Dust bag housing 7 Front cover 8 Housing release button 9 Base with brush 10 Cable 11 Attachment tube handle 12 Hose 13 Carrying handle 14 Cable hook 15 Attachment tube 16 Crevice nozzle Upholstery nozzle...
  • Page 6 Filter level indicator I N I l l The red warning light (A) indicates a blockage or a full bag, so check: a) Is the dust bag full? there a blockage in the hose or power head? If the red light is disregarded the machine will shut off and the light will flash.

  • Page 7: Maintenance

    (24) holding it upright with one hand blocking the top and switching on the machine. the end of the hose). The guarantee is invalidated if take out parts not approved by WINDSOR, eg. bags, filters, brush roller, etc., are fitted1...
  • Page 8 120 V GREY . Product- Description 5625 UL Handle with cable, cpl. 5296 EW Handle grip (incl. Pos. Grommet 2301 1 Power supply cord 0532 EW Switch, cpl. 5160 bl Switch cap, blue 5161 hg Switch cap holder 51 62 Cable clamp 01 03 Screw C 3,9x16 DIN 7981...
  • Page 9 120 V GREY Pos. Product- Description 2832 WI Power head cover S 15, cpl 2846 Exhaust filter 2820 BL Exhaust filter cover 2827 UL Swivel neck assembly 2886 Male contact holder 2494 Cable clamp 0102 Screw 3,9 x 13 DIN 7981 2835 Bypass valve 0869...

  • Page 10: Technical Details

    A Attachments 1 Upholstery Nozzle Crevice Nozzle B Optional Attachments 1 Extension Hose Straight Tube Dusting Brush Upholstery Nozzle, special Wall- and Floor Brush C ServicePatts Paper Bag Micro-Hygiene-Filter Exhaust Filter Brush Roller Electric shock could occur if used outdoors or on wet surfaces! Technical Details Wiring diagram ..
