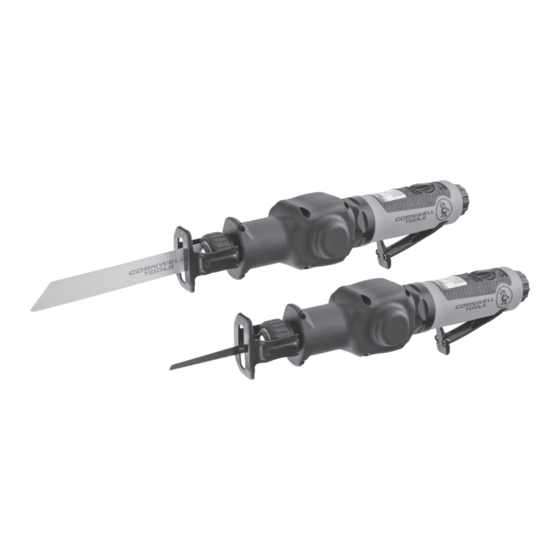

Reciprocating air saw

Advertisement

OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Strokes Per Minute . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 SPM
Rated Cutting Capacity . . . 1/4" (6.4mm) thick Steel/Steel Pipe
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 dBA
Vibration Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.8 m/s²
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 lbs
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.1" (230mm)
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 3.5 CFM
CAT750AS
WARNING INFORMATION
WARNING
SPECIFICATIONS
up to 3" (75mm) by 6" Reciprocating Saw
bluePOWER® Reciprocating Air Saw
PARTS LIST
Copyright © Professional Tool Products, 2022
WARNING
• MAXIMUM SPM OF 5,000
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
ALWAYS WEAR FACE
PROTECTION
ALWAYS WEAR HAND
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
All rights reserved
CAT750AS
07/22/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the bluePOWER CAT750AS and is the answer not in the manual?

Questions and answers

Summary of Contents for Cornwell Tools bluePOWER CAT750AS

  • Page 1 CAT750AS bluePOWER® Reciprocating Air Saw OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth WARNING defects or other reproductive harm. Some examples of these chemicals are: •...
  • Page 2 CAT750AS bluePOWER® Reciprocating Air Saw FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY • Tool shaft may continue to reciprocate briefly after throttle is THIS INSTRUCTION MANUAL CONTAINS IMPORTANT released. Avoid direct contact with accessories during and after SAFETY INFORMATION. use.
  • Page 3: Operation

    CAT750AS bluePOWER® Reciprocating Air Saw OPERATION Air Supply Whip Hose Do Not Install Filter OPERATION NOTE: Always shut off air supply, drain hose of air Quick Coupling Nipple Nipple Here pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs.
  • Page 4: Warranty Coverage

    CAT750AS bluePOWER® Reciprocating Air Saw WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
  • Page 5: Parts List

    CAT750AS bluePOWER® Reciprocating Air Saw PARTS LIST Item Part No Parts Name Item Part No Parts Name RS103001 REGULATOR SET RS47220 BEVEL GEAR (8T) RS288304 SNAP RING RS47221 CLAMP NUT RS103002 VALVE STEM SET RS2GR28 HOUSING CLAMP NUT RS47204 AIR INLET RS47223 GEAR HEAD HOUSING SET RS103003...
