Operating Instructions • Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out
microscopic particles.
SPECIFICATIONS
Strokes per Minute:. . . . . . . . . . . . . . . . . . . . . . . . . 10,000 SPM
Stroke length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8"
Air Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" nPT
Minimum hose Size: . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.d.
recommended Air Pressure: . . . . . . . . . . . . . . . . . . . . . 90 PSI
Air Consumption:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 CfM
Sound Pressure level . . . . . . . . . . . . . . . . . . . . . . . . . . .82 dBA
Sound Power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94 dBA
length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5/8"
net weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.4 lbs.
CAT450AS
• Parts Breakdown
CAT450AS

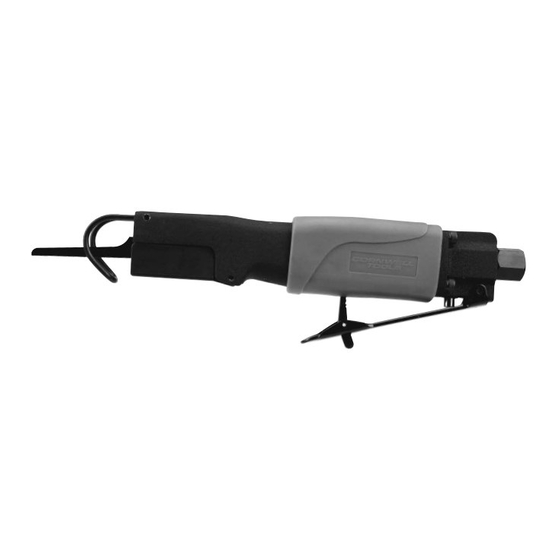

Heavy Duty Air Saw
Includes:
1 ..................................................................18 TPI Blade
1 ...................................................................24 TPI Blade
1 ...................................................................32 TPI Blade
1
AlwAyS reAd
InSTruCTIonS
Before uSIng
Power ToolS
AlwAyS weAr
SAfeTy
goggleS
weAr heArIng
ProTeCTIon
AvoId
Prolonged
exPoSure To
vIBrATIon
Rev. 12/01/09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT450AS
Summary of Contents for Cornwell Tools CAT450AS
- Page 1 Strokes per Minute:......10,000 SPM CAT450AS Stroke length ........3/8"...
- Page 2 CAT450AS Rev. 12/01/09...
- Page 3 PARTS BREAKDOWN - CAT450AS ref. # Item # deSCrIPTIon ref # Item# deSCrIPTIon rS305A11 valve Plug rS11026 Cylinder RS848012 O-Ring rS11028 rear Bumper RS305A09 O-Ring rS11029B Piston rS11004 Air regulator rS11030 front Bumper rS305A07 Spring rS11031w Comfort grip rS305A06 Throttle Pin...
- Page 4 This warranty gives you specific rights. You may also have other rights which vary from state to state. The foregoing obligation is Cornwell’s sole liability under this or any implied warranty and under no cir c um s tanc e s shall Cornwell be liable for any in c i d en t al or consequential dam a ges. note: Some states do not allow the exclusion or limitation of incidental or consequential dam a g e s, so the above limitation or exclusion may not apply to you CAT450AS Rev. 12/01/09...
