Owner's Manual
Wired Controller
KCTAQ-02
Thank you very much for purchasing our product,
Before using your unit , please read this manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kaysun KCTAQ-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Frigicoll Kaysun KCTAQ-02

Summary of Contents for Frigicoll Kaysun KCTAQ-02

  • Page 1 Owner's Manual Wired Controller KCTAQ-02 Thank you very much for purchasing our product, Before using your unit , please read this manual carefully and keep it for future reference.

  • Page 2: Table Of Contents

    This manual gives detailed description of the precautions that should be brought to your attention during operation. In order to ensure correct service of the wired controller please read this manual carefully before using the unit. For convenience of future reference, keep this manual after reading it. CONTENTS 1 GENERAL SAFETY PRECAUTIONS About the documentation...

  • Page 3: General Safety Precautions

    1 GENERAL SAFETY The appliance is not intended for use by persons, including children, with reduced physical, sensory or PRECAUTIONS mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a 1.1 About the documentation person responsible for their safety.

  • Page 4: Glance Of The User Interface

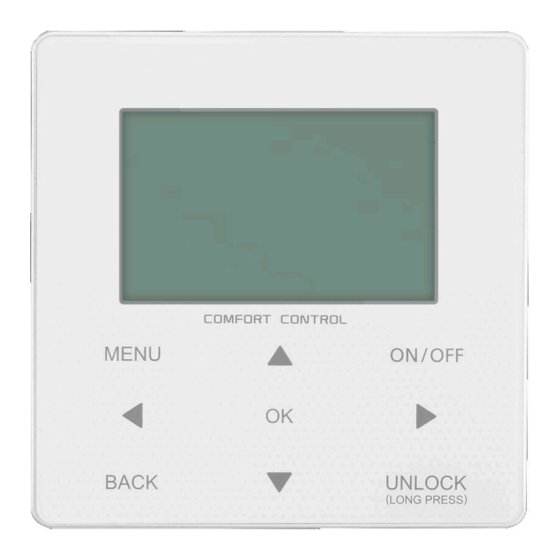

    2 A GLANCE OF THE USER INTERFACE 2.1 The appearance of the wired controller Turn on or off the space operation Enter the menu mode or DHW structure from mode turn on or the home page off the function in the menu structure Navigate the cursor on the...

  • Page 5: Using Home

    3 USING HOME PAGES When you turn on the wired controller, the system will enter the language selection page, You can choose your preferred language, then press OK to enter the home pages. If you don't press OK in 60 seconds, the system will enter in the currently selected language.
  • Page 6 home page3： If the DHW MODE is set NON (See ''FOR SERVICEMAN'' > ''DHW MODE SETTING '' in ''Installation and owner's manual '', and if ''WATER FLOW TEMP.'' is set YES, ''ROOM TEMP.'' is set YES,(See ''FOR SERVICEMAN'' > ''TEMP. TYPE SETTING '' in ''Installation and owner's manual '').

  • Page 7: Menu Structure

    4 MENU STRUCTURE The interface will be locked if there is no handing for a 4.1 About the menu structure long time(about 120 seconds:it can be set by the interface, see ''6.7 SERVICE INFORMATION''.) You can use the menu structure to read out and If the inerface is unlocked, long press "unlock", the configure settings that are NOT meant for daily usage.
  • Page 8 Use the room thermostat to turn on or off the unit for space heating or cooling. ① The room thermostat is not SET NON(see ''ROOM THERMOSTAT SETTING'' in ''Installation and owner's manual ''). The unit for space heating or cooling is turned on or off by the room thermostat，press ON/OFF on the interface, the following page will display: ON/OFF...

  • Page 9: Adjusting The Temperature

    5.3 Adjusting the temperature Use the interface to turn on or off the unit for DHW.Press ''►''、''▼''on home page, the black cursor will appear: Press ''◄ ''、 ''▲'' on home page, the black cursor will appear: 2） When the cursor is on the temperature of DHW mode.

  • Page 10: Adjusting Space Operation Mode

    The operation mode can not be changed. If you Then the space operation mode is… select… Always heating mode HEAT Always cooling mode COOL Automatically changed by the software based on the outdoor temperature (and depending on installer settings of the indoor temperature), and takes monthly restrictions into account.
  • Page 11 For example: Now time is 8:00 and temperature is PRESET TEMPERATURE 30°C. We set the PRESET TEMP as following table. The following page will appear: PRESET WEATHER TEMP. TEMP.SET MODE TIME TEMP. 00:00 25°C 00:00 25°C 00:00 25°C PRESET TEMPERATURE TIME TEMPER PRESET...
  • Page 12 If the weather TEMP.SET is actived,the desired PRESET TEMPERATURE temperature adjusted interface.Press the ''▼''、 ''▲'' to adjust the PRESET WEATHER temperature on home page. The following page will TEMP. TEMP.SET MODE appear: ZONE1 C-MODE LOW TEMP. ZONE1 H-MODE LOW TEMP. ZONE2 C-MODE LOW TEMP.

  • Page 13: Domestic Hot Water(Dhw)

    6.3 Domestic Hot Water(DHW) Use '◄ ''、 ''►''to scroll .Press ''OK'' to select. The following page will appear: DHW mode typically consists of the following : 1) DISINFECT PRESET TEMPERATURE 2) FAST DHW 3) TANK HEATER PRESET WEATHER 4) DHW PUMP TEMP.
  • Page 14 6.3.2 Fast DHW DOMESTIC HOT WATER（DHW） The FAST DHW function is used to force the system to operate in DHW mode. DIS- FAST TANK INFECT HEATER PUMP The heat pump and the booster heater or addition heater will operate for DHW mode together, and the DHW CURRENT STATE desired temperature will be changed to 60℃.

  • Page 15: Schedule

    6.4 Schedule DOMESTIC HOT WATER（DHW） DIS- FAST TANK SCHEDULE menu contents as follows: INFECT HEATER PUMP 1) TIMER 2) WEEKLY SCHEDULE START START 3) SCHEDULE CHECK 00:00 00:00 4) CANCEL TIMER 00:00 00:00 6.4.1 Timer 00:00 00:00 If the weekly schedule function is on, the timer is off, the later setting is effective.
  • Page 16 Example: First select the days of the week you wish to schedule. Use ''◄ ''、 ''►''to scroll, press ''OK'' to select on Six timer is set as following: unselect the day. “ ” means that the day is selected,“MON” means START MODE TEMP...

  • Page 17: Options

    6.4.3 Schedule check If TIMER or WEEKLY SCHEDULE is canceled, icon'' or '' '' will disappear on the home page. schedule check can only check the weekly schedule. Go to ''MENU'' > ''SCHEDULE'' >''SCHEDULE' CHECK''. Press''OK''. The following page will appear: SCHEDULE WEEKLY SCHEDULE...
  • Page 18 6.5.1 Silent Mode You can use ''▼''、 ''▲'' to select level 1 or level 2. Press ''OK''. The SILENT MODE is used to decrease the sound of the unit. However, it also decreases the heating/cooling If the silent TIMER is selected, Press “OK” to enter, the capacity of the system.
  • Page 19 Then you can do the following: OPTIONS 1) Configure the holiday away the following settings: 2) Activate the holiday mode. SILENT HOLIDAY HOLIDAY BACKUP Go to ''MENU'' > ''OPTIONS'' > ''HOLIDAY AWAY''. MODE AWAY HOME HEATER Press ''OK'' . Use ''ON/OFF'' to select ''OFF'' or ''ON'' and use ''◄ ''、 CURRENT STATE ''►...

  • Page 20: Child Lock

    The cool/heat mode can't turn on or off when the Use ''ON/OFF'' to select ''OFF'' or ''ON'' . COOL/HEAT MODE ON/OFF is locked.If you want to turn on or off the cool/heat mode when COOL/HEAT MODE INFORMATION ON/OFF is locked,the following page will appear: If the operation mode is auto mode in space heating or cooling side, the buckup heater function can not be selected.

  • Page 21: Operation Parameter

    The service call can show the service phone or mobile SERVICE INFORMATION nember.The installer can input the phone number.See ''FOR SERVICEMAN''. SERVICE ERROR PARAMETER DISPLAY CALL CODE SERVICE INFORMATION ROOM SET TEMP. 26℃ SERVICE ERROR MAIN SET TEMP. 55℃ PARAMETER DISPLAY CALL CODE...

  • Page 22: For Serviceman

    OPERATION PARAMETER OPERATION PARAMETER ONLINE UNITS NUMBER FAN SPEED 600R/MIN OPERATE MODE COOL IDU TARGET FREQUENCY 46Hz SV1 STATE FREQUENCY LIMITED TYPE SV2 STATE SUPPLY VOLTAGE 230V SV3 STATE DC GENERATRIX VOLTAGE 420V PUMP_I DC GENERATRIX CURRENT ADDRESS ADDRESS OPERATION PARAMETER OPERATION PARAMETER PUMP_O TW_O PLATE W-OUTLET TEMP.

  • Page 23: Network Configuration Guidelines

    The FOR SERVICEMAN is used for installer or service AP MODE engineer. It is NOT instended the home owener alters setting with this menu. Do you want to activate the It is for this reason password protection is requierd to WLAN network and exit? prevent unauthorised access to the service settings.
  • Page 24 2） Operate the wired controller according to APP prompts. ② Please research "Msmartlife" in APP STORE or GOOGLE PLAY to install the APP. (This APP is only applicable to Android 7.0 and IOS7, or newer operation systems.) (2) Sign in/Sign up Click the "+"...

  • Page 25: Sn View

    6.11 SN VIEW 4) After the appliance is successfully connected, the LCD icon“ ” of the wired controller is constantly on, and the air conditioner can be controlled through the APP. 5) If the network distribution process fails, or the mobile connection SN VIEW demands reconnection and replacement, operate “WLAN Factory Reset”...

  • Page 26: Menu Structure : Overview

    7 MENU STRUCTURE : OVERVIEW MENU OPERATION MODE HEAT OPERATION MODE COOL PRESET TEMPERATURE AUTO DOMESTIC HOT WATER(DHW) SCHEDULE PRESET TEMPERATURE OPTIONS PRESET TEMP. CHILD LOCK WEATHER TEMP. SET SERVICE INFORMATION ECO MODE OPERATION PARAMETER FOR SERVICEMAN WLAN SETTING DOMESTIC HOT WATER(DHW) SN VIEW DISINFECT DISINFECT...
  • Page 27 FOR SERVICEMAN 1 DHW MODE SETTING 1 DHW MODE SETTING 1.1 DHW MODE 2 COOL MODE SETTING 2 COOL MODE SETTING 1.2 DISINFECT 2.1 COOL MODE 3 HEAT MODE SETTING 1.3 DHW PRIORITY 2.2 t_T4_FRESH_C 4 AUTO MODE SETTING 1.4 DHW PUMP 2.3 T4CMAX 5 TEMP.
  • Page 28 Table1 The environment temperature curve of the low temperature setting for heating ≤ - 20 - 19 - 18 - 17 - 16 - 15 - 14 - 13 - 12 - 11 - 10 1- T1S 2- T1S 3- T1S 4- T1S 5- T1S 6- T1S...
  • Page 29 The automatic setting curve The automatic setting curve is the ninth curve,this is the calculation: T1S (T1S2) T1SETH 1 T1SETH 2 T4H 1 T4H 2 State:In the setting the wired controller, if T4H2<T4H1, then exchange their value; if T1SETH1<T1SETH2, then exchange their value.
  • Page 30 Table4 The environment temperature curve of the high temperature setting for cooling - 10≤ T4＜15 15≤ T4＜22 22≤ T4＜30 30≤ T4 1- T1S 2- T1S 3- T1S 4- T1S 5- T1S 6- T1S 7- T1S 8- T1S The automatic setting curve The automatic setting curve is the ninth curve,this is the calculation: T1S (T1S2) T1SETC 1...
