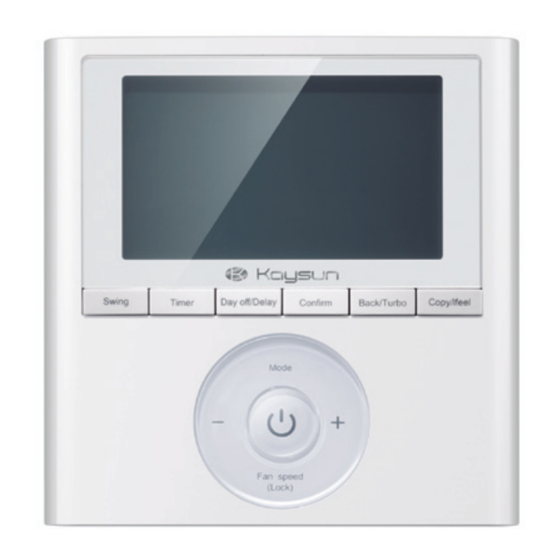

Frigicoll Kaysun KC-03.2 SPS Installation And Owner's Manual

Single wired controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND OWNER'S MANUAL
Single Wired Controller
KC-03.2 SPS
IMPORTANTE NOTE:
Read this manual carefully before installing or operating your wired remote controller.
Make sure to save this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kaysun KC-03.2 SPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigicoll Kaysun KC-03.2 SPS

Summary of Contents for Frigicoll Kaysun KC-03.2 SPS

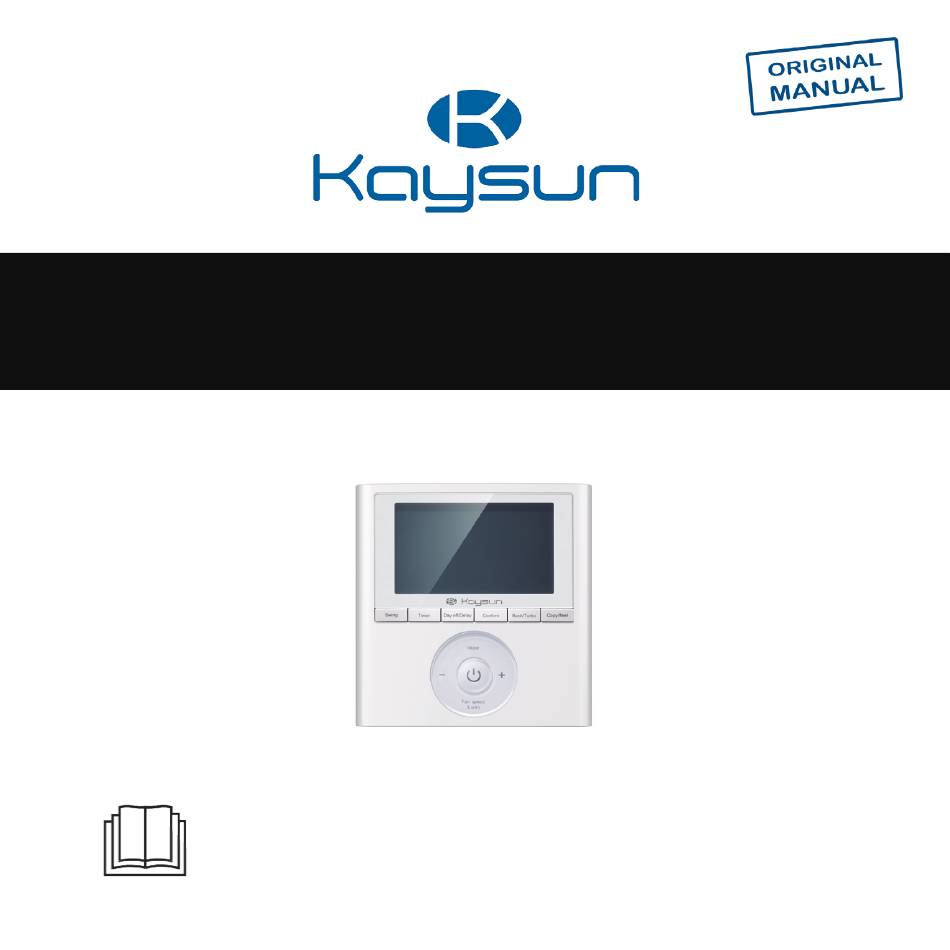

  • Page 1 INSTALLATION AND OWNER’S MANUAL Single Wired Controller KC-03.2 SPS IMPORTANTE NOTE: Read this manual carefully before installing or operating your wired remote controller. Make sure to save this manual for future reference.
  • Page 2 • This manual gives detailed description of the precautions that should be brought to your attention during operation. • To ensure the correct service of the wired controller, read this manual carefully before using the unit. • Keep this manual after reading for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTION ................5 2. INSTALLATION ACCESSORY ..............6 3. INSTALLATION METHOD ................8 4. APPENDIX INSTALL THE WIRE CONTROLLER KIT ......14 5. SPECIFICATION ..................20 6. WIRED CONTROLLER FEATURES AND FUNCTIONS ......21 7. WIRED CONTROLLER DISPLAY ............22 8.

  • Page 5: Safety Precaution

    1. SAFETY PRECAUTIONS • Read the safety precautions carefully before installing the unit. • Stated below are important safety issues that must be obeyed. Warning Means improper handling may lead to personal or severe injury. Caution Means improper handling may lead to personal injury or property loss. WARNING Please entrust the distributor or professionals to install the unit.

  • Page 6: Installation Accessory

    2. INSTALLATION ACCESSORY Select the installation location Do not install at the place where cover with heavy oil, vapor or sulfureted gas, otherwise, this product would be deformed that would lead to system malfunction. Preparation before installation 1. Please confirm that all the following parts you have been supply Name Qty.
  • Page 7 WIRED CONTROLLER INSTALLATION PRECAUTION: 1. This manual provides the wired controller installation method. Refer to this wiring diagram in this installation manual to wire the wired controller with the indoor unit. 2. The wired controller works in a low voltage loop circuit. Do not connect directly to 208/230V and 460V.

  • Page 8: Installation Method

    3. INSTALLATION METHOD 1. Wired Remote Controller Dimensions Fig 3-1 2. Wiring Connection Diagram Insert of the mainboard CN40 black black yellow yellow brown brown 4-Core Shield Cable, the length Wire controller Indoor unit mainboard is decided by installation Fig 3-2...
  • Page 9 3. Wiring figure Mainboard 4-core shielding wire The connection cable CN40 Fig 3-3 • Connect the female joint of the wires group from the mainboard with the male joint of the connective wires group. (See Fig 3.3). • Connect the other side of the connective wires group with the male joint of the wires group leads from the wire controller.
  • Page 10 4. Wire controller upper part Remove • Insert a flat screwdriver into the slots in the lower pat of the wire controller (2 places). • Remove the upper part of the wire controller (Fig 3-4). NOTE: The PCB is mounted in the upper part of the wired controller.
  • Page 11 • For switch box mounting, fasten the back plate on the switch box with 2 screws (M4X25) and fasten it on the wall with 1 screw (M4X20). (Fig 3-6) Back plate Switch box Screw (M4X20) Screws (M4X25) Fig 3-6 NOTE: Place on a flat surface. Be careful not to distort the wire controller's back pate by over-tightening the mounting screws.
  • Page 12 7. Wire the indoor unit There are three methods: from the rear; from the bottom; from the top; Notch the part of the wiring to pass through with a nipper tool.
  • Page 13 NOTE: DO NOT allow water to enter the remote control. Use the trap and putty to seal the wires Putty Trap Putty Putty Trap Trap Fig 3-8 8. Reattach the wire controller's upper part • While adjusting and mounting the upper case, avoid clamping the wiring during installation.

  • Page 14: Appendix Install The Wire Controller Kit

    4. APPENDIX INSTALL THE WIRE CONTROLLER KIT 1. Open the front panel. 2. Disconnect the wire from the main controller board.
  • Page 15 3. Identify the components. From left to right, the wired controller, convert board and the display board. 4. Identify connections on the Display Board. • CN201 is the display board connection to the main board wire (on the display board).
  • Page 16 • CN101 is the display board connection to the convert board wire (on the display board). 5. Uninstall the display board from the front panel. Keep the display board holder.
  • Page 17 6. Carefully bend and break off the rectangular section (upper left section with two diagonal holes) from the display board. NOTE: Break off the upper left hand rectangle (section with the two holes marked with a red rectangle). 7. Replace the old display board (for the New Display board provided) and secure with the clips.
  • Page 18 8. Before assembling mounting back on the Front Panel, remove the display board's screen cover. 9. Connect the Wires to the Adaptor Board. a. Connect the wire coming from the Display Board to the Convert Board (this connection consists of 5 wires).
  • Page 19 b. Connect the wire coming from the Wired Remote Controller to the Convert Board (this connection consists of 4 wires). 10. Once the ports are connected, install the cover. 11. Mount the new display board and convert board to the Front Panel. 12.

  • Page 20: Specification

    5. SPECIFICATION Input voltage DC 12V Ambient temperature 23~110ºF (-5~43ºC) Ambient humidity RH40%~RH90% Wiring specifications Wiring type Size Total length 0.029in - 0.74mm Shielded vinyl cord or cable (0.75 - 1.25mm...

  • Page 21: Wired Controller Features And Functions

    6. F E AT U R E A N D F U N C T I O N O F T H E W I R E D CONTROLLER Feature: • LCD display • Malfunction code display: displays the error code (helpful for servicing) •...

  • Page 22: Wired Controller Display

    7. WIRED CONTROLLER DISPLAY 1. Operation mode indicator 8. Turbo/Auxiliary Heat function 2. Fan speed indicator indicator 3. Left-right swing indicator 9. ºC/ºF indicator 4. Up-down swing indicator 10. Temperature display 5. Panel function indicator 11. Lock indicator 6. Main unit and secondary unit 12.

  • Page 23: Wired Controller Buttons

    8. WIRED CONTROLLER BUTTONS 1. Mode 6. Timer 2. Power 7. Day Off/Del 3. Adjust 8. Copy/Follow me 4. Fan speed 9. Back/Turbo 5. Swing 10. Confirm...

  • Page 24: Preparatory Operation

    9. PREPARATORY OPERATION Set the current day and time Press TIMER for 3s or more. The timer displays flashes. Press + or − to set the date. The selected date flashes. Date setting is complete and the time setting is ready after pressing TIMER or if nothing is pressed in 10 seconds.

  • Page 25: Operation

    10. OPERATION To start/stop operation Press the Power button. To set the operation mode Operation mode setting Press MODE to set the operation mode. (Heat function is invalid for cool only type unit) Room temperature setting Press + or − to set the room temperature. Indoor Setting Temperature Range: 62~8ºF (17~30ºC) / 62~88ºF (17~31ºC (depending on models)).
  • Page 26 Fan speed setting Press FAN SPEED to set the fan speed. NOTE: This function is unavailable in the AUTO or DRY modes. Room temperature sensor selection Press FOLLOW ME to select whether the room temperature is detected at the indoor unit or at the wired controller.
  • Page 27 Child lock function Press LOCK for 3 seconds to activate the CHILD LOCK feature and lock all buttons on the wired controller. Press again for 3 seconds to desactivate. NOTE: When the child lock function is activated, the lock image appears. Keypad tone setting Press SWING and TIMER simultaneously for 3 seconds to disable the keypad tone.
  • Page 28 Turbo/Auxiliary Heat function (on some models) • Press TURBO to activate/deactivate the Turbo/Auxiliary Heat function. The turbo function sets the unit to reach the user's present temperature in the shortest amount of time possible. • When the user presses TURBO in the COOL mode, the unit sets to the highest fan speed setting to jump-start the cooling process.
  • Page 29 Swing function (For the unit with left & right auto swing function only) 1 Up-Down swing Press the SWING button to start Up-Down swing function. Press it again to stop. When the Up-Down swing function is activated, the mark appears. 2 Left-Right swing Press the SWING button to start Left-Right swing function.
  • Page 30 Swing function (For the unit without left & right auto swing function only) Up-Down airflow direction and swing • Use SWING to adjust the up and down airflow direction. 1. Every time the user presses SWING, the louver swings six degrees. 2.

  • Page 31: Timer Functions

    11. TIMER FUNCTIONS WEEKLY timer Use to set the operating times for each day of the week. On timer Use to start the air conditioner operation. The timer operates and the air conditioner operation starts after the time has passed. Off timer Use to stop the air conditioner operation.
  • Page 32 To set the On or Off TIMER Press TIMER to select the Press CONFIRM and the Clock display flashes ex. Off timer set at PM 6:00 Press + or − to set the time. After the time is set, the timer starts or stops automatically.
  • Page 33 To set the On and Off TIMER Press TIMER to select the Press CONFIRM and the Clock display flashes. Press the button + or − to set the On timer and then press CONFIRM. Press + or − to set the Off timer. Press CONFIRM to finish the setting.

  • Page 34: Weekly Timer

    12. WEEKLY TIMER 1 Weekly timer setting Press TIMER to select the and press CONFIRM. 2 Day of the week setting Press + or − to select the day of the week and then press CONFIRM. 3 ON timer setting of timer setting 1 Press + or −...
  • Page 35 IMPORTANT: Up to 8 scheduled events can be set on one day. Various events can be scheduled in either MODE, TEMPERATURE and FAN speeds. ex. Tuesday time scale 1 4 Time setting Press + or − to set the time then press CONFIRM. 5 Operation mode setting Press + or −...
  • Page 36 7 Fan speed setting Press + or − to set the fan speed then press CONFIRM. NOTE: This setting is unavailable in the AUTO DRY or OFF modes. 8 Different scheduled events can be set by repeating steps 3 through 7 9 Additional days, in a one week period, can be set by repeating 3 through 8 NOTE: The weekly timer setting can be returned to the...
  • Page 37 WEEKLY timer operation To start Press TIMER to select the , and then the timer starts automatically. To cancel Press POWER to cancel the timer mode. The TIMER mode can also be canceled by changing the timer mode using Timer. To set the DAY OFF (for a holiday) After setting the weekly timer, press CONFIRM.
  • Page 38 Press DAY OFF to create an off day. mark is hidden ex. The DAY OFF is set for Wednesday Set the DAY OFF for other days by repeating the steps 2 and 3. Press BACK to revert to the weekly timer. •...
  • Page 39 Press COPY, the letters CY appear on the LCD. Press + or − to select the day to copy to. Press COPY to confirm. mark flashes quickly ex. Copy the setting of Monday to Wednesday Other days can be copied by repeating steps 4 and 5. Press CONFIRM to confirm the settings.
  • Page 40 Delete the time scale in one day During the weekly timer setting, press CONFIRM. Press + or − to select the day of the week and the press CONFIRM. Press + or − to select the setting time want to delete. The setting time, mode, temperature and fan speed appear on the LCD.

  • Page 41: Automatic Pressure Setting

    13. AUTOMATIC PRESSURE SETTING 1. Make sure the test run is done with a dry coil. If the coil is not dry, run the unit for 2 hours in FAN ONLY mode to dry the coil 2. Check that both power supply wiring and duct installation have been completed Check that any closing dampers are open.
  • Page 42 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. QSXUI-014AEN 16117100A05335 20170724...
