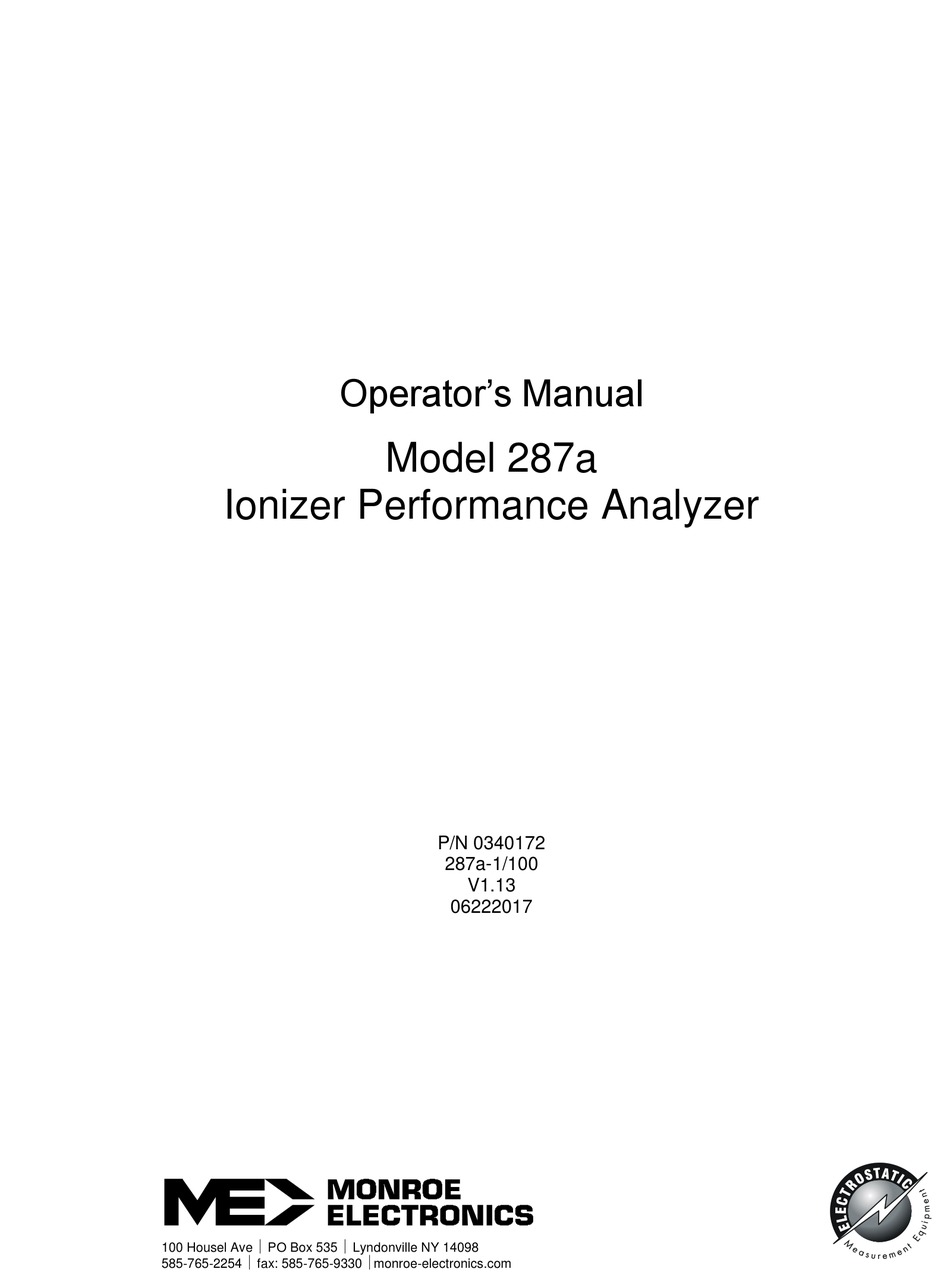

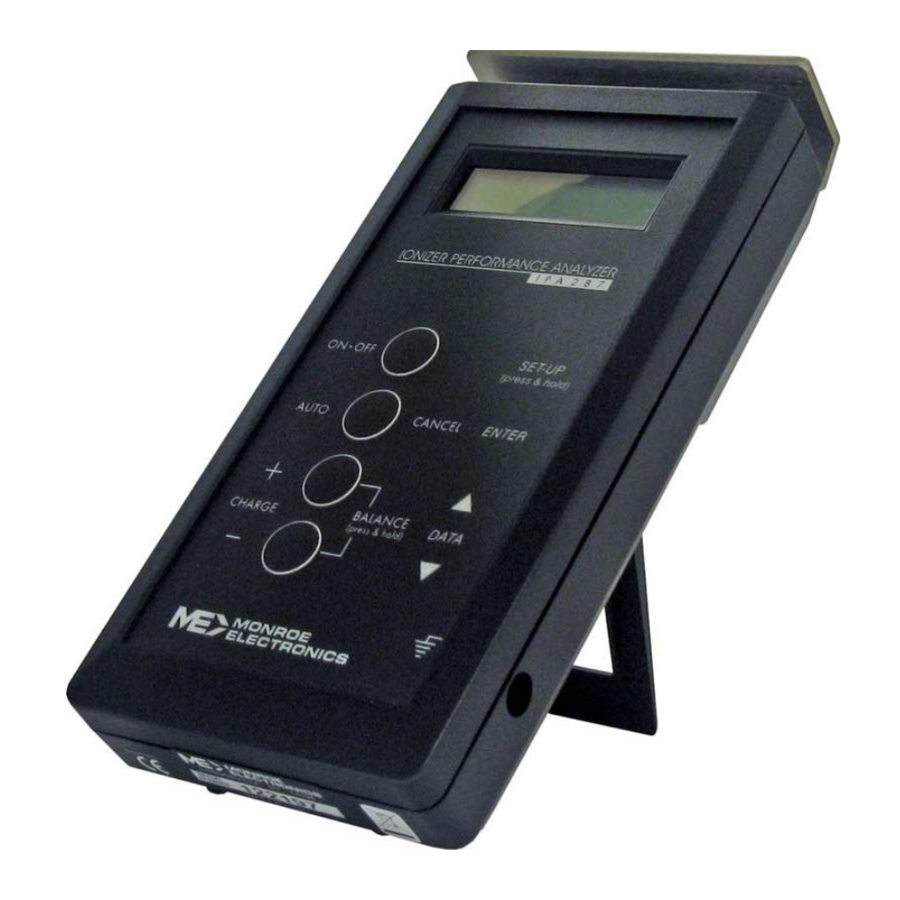

- Page 1 Operator’s Manual Model 287a Ionizer Performance Analyzer P/N 0340172 287a-1/100 V1.13 06222017 100 Housel Ave PO Box 535 Lyndonville NY 14098 585-765-2254 fax: 585-765-9330 monroe-electronics.com...
-
Page 2: Table Of Contents
Calibration ............... Page 7 Glossary ...... Section 5 ......Page 8 References ....Section 6 ......Page 9 Warranty and Repair Information ....Back Cover Copyright© 1999 Monroe Electronics, Inc. Printed in USA Specifications and procedures subject to change without notice. -
Page 3: Specifications
This manual and a manual supplement What this instrument does — Model 287a IPA meets and far exceeds the basic requirements of ESD Association (Draft) Standard Practice 3.3 for the Protection of Electrostatic Discharge Susceptible Items – Periodic Verification of Air Ionizers. -
Page 4: General Information
Memory is non-volatile. Setup and data are retained during battery replacement. The specifics of usage of the Model 287a for periodic verification of air ionizers are given in detail in ESD Association (Draft) Standard Practice 3.3 for the Protection of Electrostatic... -
Page 5: Operation
If you received this instrument directly from the factory, a battery was included but not installed, memory was cleared and default settings are effective. The following will familiarize you with your new Ionizer Performance Analyzer Model IPA 287a: 1) Install battery a) Remove the two crosspoint screws from the battery compartment cover. -
Page 6: Further Familiarization
Set up the ionizer. Ground the IPA 287a. A ground jack is provided on the side of the instrument case. Access the main menu. The display should show 0% values for Automatic and Manual memory usage. -
Page 7: Test Results
iii) The test results are displayed at the end of the test. The results are displayed in three windows which may be scrolled with either the or button. The first window shows the positive and negative decay times (from 1000 volts to 100 volts) for tests number 1 and 2 in the sequence. -
Page 8: The Set-Up Menu
‘ENTER’ when you are done to return to the main menu. The Set-up Menu — The Set-up menu allows the user to modify several functions of the IPA 287a. You have already accessed the Set-up menu above to review your data. To enter the Set-up menu from the main menu, press and hold the ‘SETUP’... -
Page 9: Maintenance
Calibration — Calibration is not a user function and is beyond the scope of this manual. Calibration information is available from the factory. Monroe Electronics recommends annual calibration and/or when the instrument is damaged or repaired or where called for more... -
Page 10: Glossary
Section 5 GLOSSARY Blank voltage (Main Menu Startup screen) or Polarity indicator (positive or negative voltage) or Scroll up or down list Refers to Automatic test Adjust Displays while plate voltage is being adjusted to 1050 volts Auto Seq See The Set-up Menu (Page 6) AutoShtDwn... -
Page 11: References
ESD Association Advisory – ESD ADV – 3.2 – Selection and Acceptance of Air Ionizers ESD Association Advisory – ESD ADV – 1.0 – Glossary ESD Association Advisory – ESD ADV – 2.0 – Handbook Monroe Electronics, Inc. does not supply copies of standards or advisories. - Page 12 Monroe Electronics unless in writing signed by a duly authorized representative of Monroe Electronics. In the event of a breach of the foregoing warranty, the liability of Monroe Electronics shall be limited to repairing or replacing the non-conforming goods and/or defective work, and in accor- dance with the foregoing, Monroe Electronics shall not be liable for any other damages, either direct or consequential.
- Page 13 untestable at our repair facility. We will reserve the right to deny service to any modified equipment returned to the factory for repair regardless of the warranty status of the equipment.
