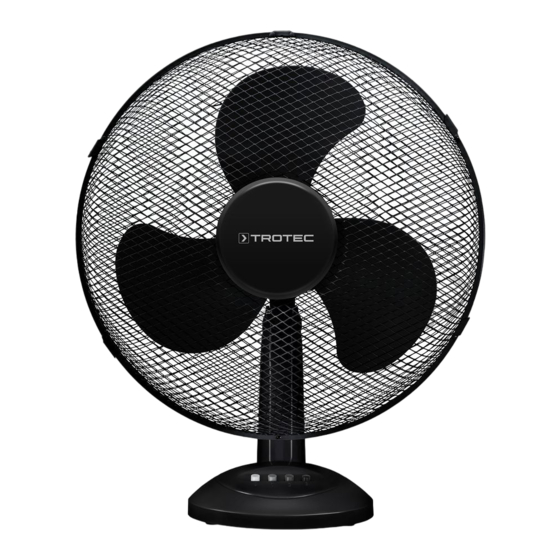

- Page 1 TVE 14 / TVE 18 ORIGINAL INSTRUCTIONS TABLE FAN...
-
Page 2: Table Of Contents
• Do not use the device with wet or damp hands. • Do not expose the device to directly squirting water. • Never insert any objects or limbs into the device. table fan TVE 14 / TVE 18... - Page 3 In such an event the device. device switches off automatically. Intended use Only use the devices TVE 14 / TVE 18 as table fans for the ventilation of interior spaces whilst adhering to the technical data. table fan TVE 14 / TVE 18...
-
Page 4: Information About The Device
• If required, use a cover to protect the device from invasive dust. • Place no further devices or objects on top of the device to prevent it from being damaged. Designation Protective grid Control panel Foot Stand Motor Oscillation pin Transport handle table fan TVE 14 / TVE 18... -
Page 5: Assembly And Start-Up
Fastening the impeller on the motor spindle 1. Fit the impeller (12) on the motor spindle (9). 2. Fasten the impeller (12) using the impeller retaining cap (13). table fan TVE 14 / TVE 18... - Page 6 2. Make sure that the two parts are fixed by the fastening clips (15). 3. Use the fastening screw (16) at the bottom of the protective grid to fasten the two grid parts. table fan TVE 14 / TVE 18...
-
Page 7: Operation
• Make sure that extension cables are completely unrolled. • Make sure that no curtains or other objects interfere with the air flow. Connecting the power cable • Insert the mains plug into a properly fused mains socket. table fan TVE 14 / TVE 18... -
Page 8: Errors And Faults
2. Pull the oscillation pin (6) up to switch the oscillation function back off. ð The oscillation function is deactivated. ð The device stops oscillation at the desired position and continues to run in the selected fan stage. table fan TVE 14 / TVE 18... -
Page 9: Maintenance
(A): 30 cm the cloth. rear (B): 30 cm sides (C): 30 cm front (D): 30 cm • Other than that, the device does not require maintenance. table fan TVE 14 / TVE 18... -
Page 10: Disposal
Only for United Kingdom According to Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. table fan TVE 14 / TVE 18... - Page 11 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
