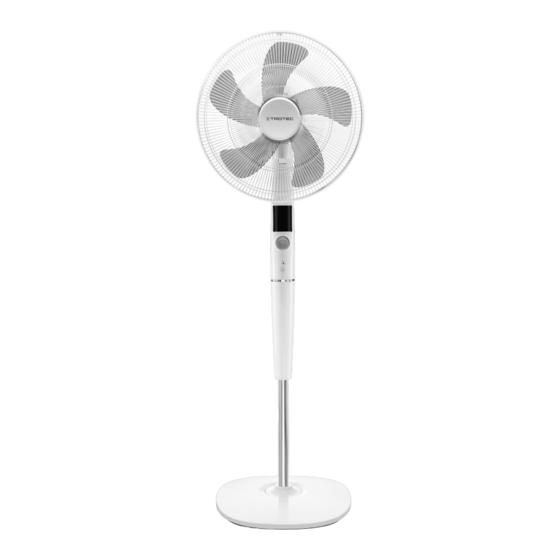

- Page 1 TVE 26 S OPERATING MANUAL PEDESTAL FAN...
-
Page 2: Table Of Contents
Do not leave the device unattended during operation. • Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts. pedestal fan TVE 26 S... - Page 3 Observe the personnel qualifications! • Remove the batteries from the remote control if you will not be using the device for a longer period of time. pedestal fan TVE 26 S...
-
Page 4: Information About The Device
• 26 speed levels • Adjustable timer function up to 12 hours • Inclination angle of the fan head vertically adjustable by up to 20° • On-demand 85° oscillation Designation Protective grid Control panel Foot Motor Pillar Remote control pedestal fan TVE 26 S... -
Page 5: Transport And Storage
1. Open the cardboard box and take the device out. 2. Completely remove the packaging. 3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding. pedestal fan TVE 26 S... - Page 6 1. Fit the rear part of the protective grid (13) on the motor the protective grid. spindle (14). 2. Fasten both elements with the retaining ring (15). 2. Make sure that the two parts are fixed by the fastening clip (18). pedestal fan TVE 26 S...
- Page 7 Risk of injury due to incorrect start-up! There is a risk of injury if the protective grid is not installed correctly around the impeller. The protective grid must be installed correctly before the device is switched on. pedestal fan TVE 26 S...
-
Page 8: Operation
Timer = automatic switch-on and • Insert the mains plug into a properly fused mains socket. switch-off • The symbols on the control panel display light up briefly. The device is now in standby mode. pedestal fan TVE 26 S... - Page 9 • After an operating time of 30 minutes, the fan automatically switches to fan stage 4 in night mode. • After an operating time of one hour, the fan automatically switches to fan stage 2 in night mode and keeps running at this stage. pedestal fan TVE 26 S...
- Page 10 ð The oscillation function is deactivated. Night mode ð The device stops oscillation at the desired position and Comfort mode continues to run in the selected operating mode. whisper mode Oscillation button Activating and deactivating the oscillation function pedestal fan TVE 26 S...
-
Page 11: Errors And Faults
The device still does not operate correctly after these checks: Please contact the customer service. If necessary, bring the device to an authorised specialist electrical company or to Trotec for repair. • Other than that, the device does not require maintenance. pedestal fan TVE 26 S... -
Page 12: Technical Annex
According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113) and the Waste Batteries and Accumulators Regulations 2009 (2009/890), devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. pedestal fan TVE 26 S... - Page 13 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
