Summary of Contents for Trotec TVE 25 S

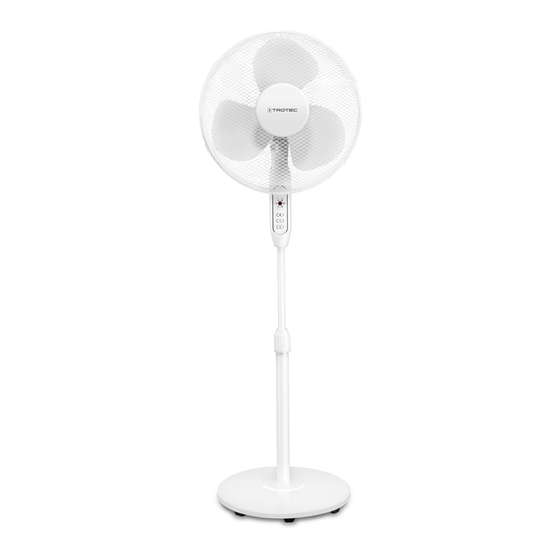

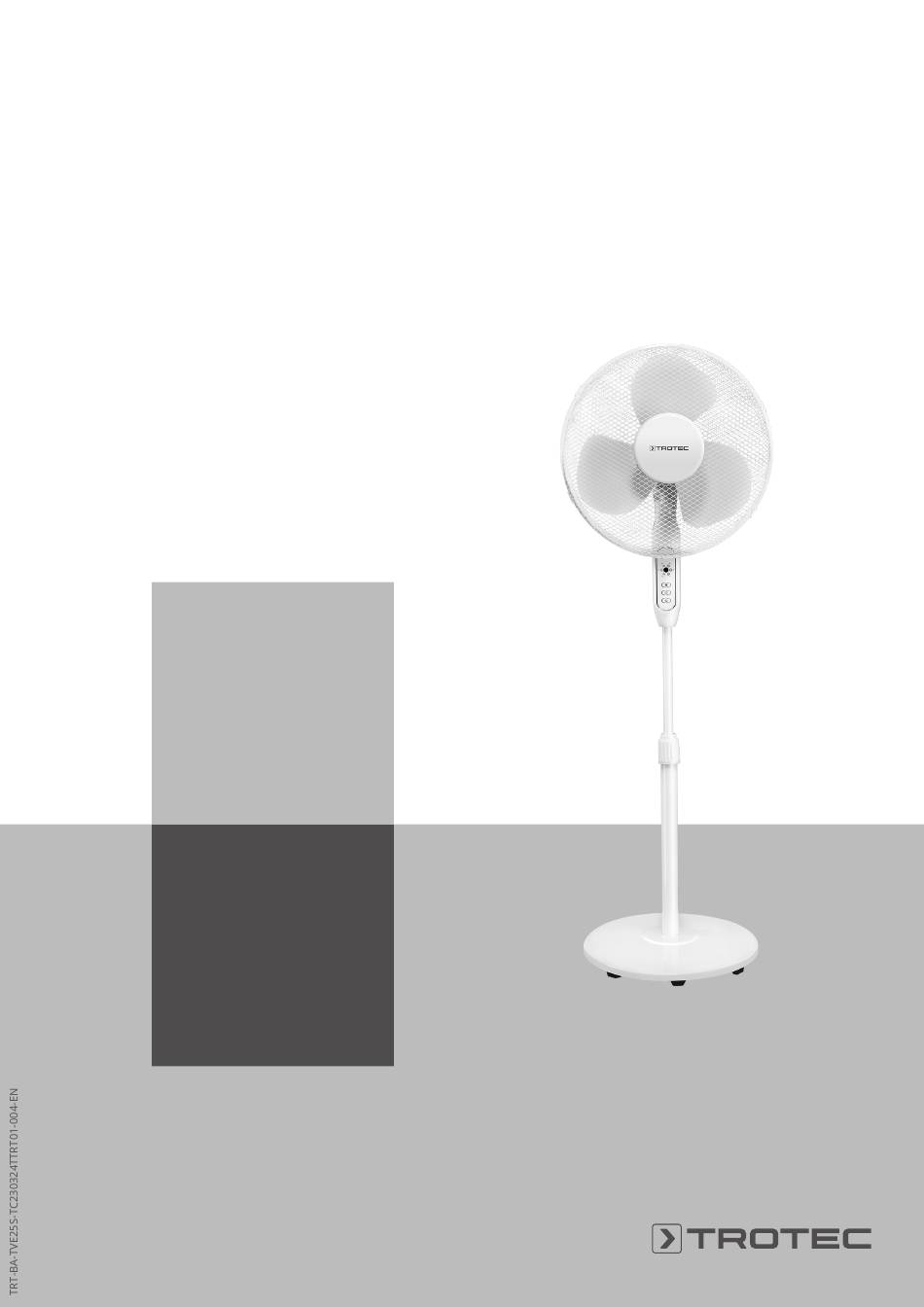

- Page 1 TVE 25 S ORIGINAL INSTRUCTIONS PEDESTAL FAN...
-
Page 2: Table Of Contents
Follow the manual • Do not sit on the device. Information marked with this symbol indicates that the • This appliance is not a toy. Keep away from children and instructions must be observed. animals. pedestal fan TVE 25 S... - Page 3 • Use batteries of type AAA. • Do not insert rechargeable batteries into the remote control. • Never charge batteries that cannot be recharged. • Different types of batteries and new and used batteries must not be used together. pedestal fan TVE 25 S...
-
Page 4: Information About The Device
1. Switch the device off. 2. Disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. pedestal fan TVE 25 S... -
Page 5: Transport And Storage
1. Open the cardboard box and take the device out. 2. Completely remove the packaging. 3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding. pedestal fan TVE 25 S... - Page 6 1. Fit the impeller (14) on the motor spindle (13). Connecting the operating element and pillar 2. Fasten the impeller (14) using the impeller retaining Connect the control panel (2) and the pillar (5) and fasten the cap (15). connection screw (10) at the rear of the control panel. pedestal fan TVE 25 S...
- Page 7 2. Make sure that the two parts are fixed by all four fastening angle. ð The fan's inclination angle has been set and the air will clips (17). flow out at the selected inclination angle. pedestal fan TVE 25 S...
- Page 8 AAA batteries (1.5 V). Connecting the power cable • Insert the mains plug into a properly fused mains socket. • The symbols on the control panel display light up briefly. The device is now in standby mode. pedestal fan TVE 25 S...
-
Page 9: Operation
Switching the timer on or off ON/OFF button Switching the device on and off Fan stage Fan speed indication: indication: Stage 1 = low Stage 2 = medium Stage 3 = high ð The oscillation function is activated. pedestal fan TVE 25 S... -
Page 10: Errors And Faults
• Hold onto the mains plug while pulling the power cable out of the mains socket. • Clean the device according to the Maintenance chapter. • Store the device according to the Transport and storage chapter. pedestal fan TVE 25 S... -
Page 11: Maintenance
(A): 30 cm solvents, alcohol-based or abrasive cleaners to dampen rear (B): 30 cm the cloth. sides (C): 30 cm front (D): 30 cm • Other than that, the device does not require maintenance. pedestal fan TVE 25 S... -
Page 12: Disposal
According to Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. pedestal fan TVE 25 S... - Page 13 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
