Summary of Contents for IMG STAGELINE DSM-26LAN

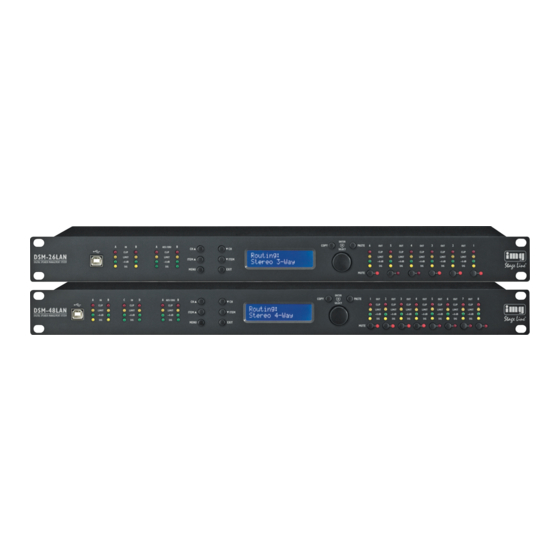

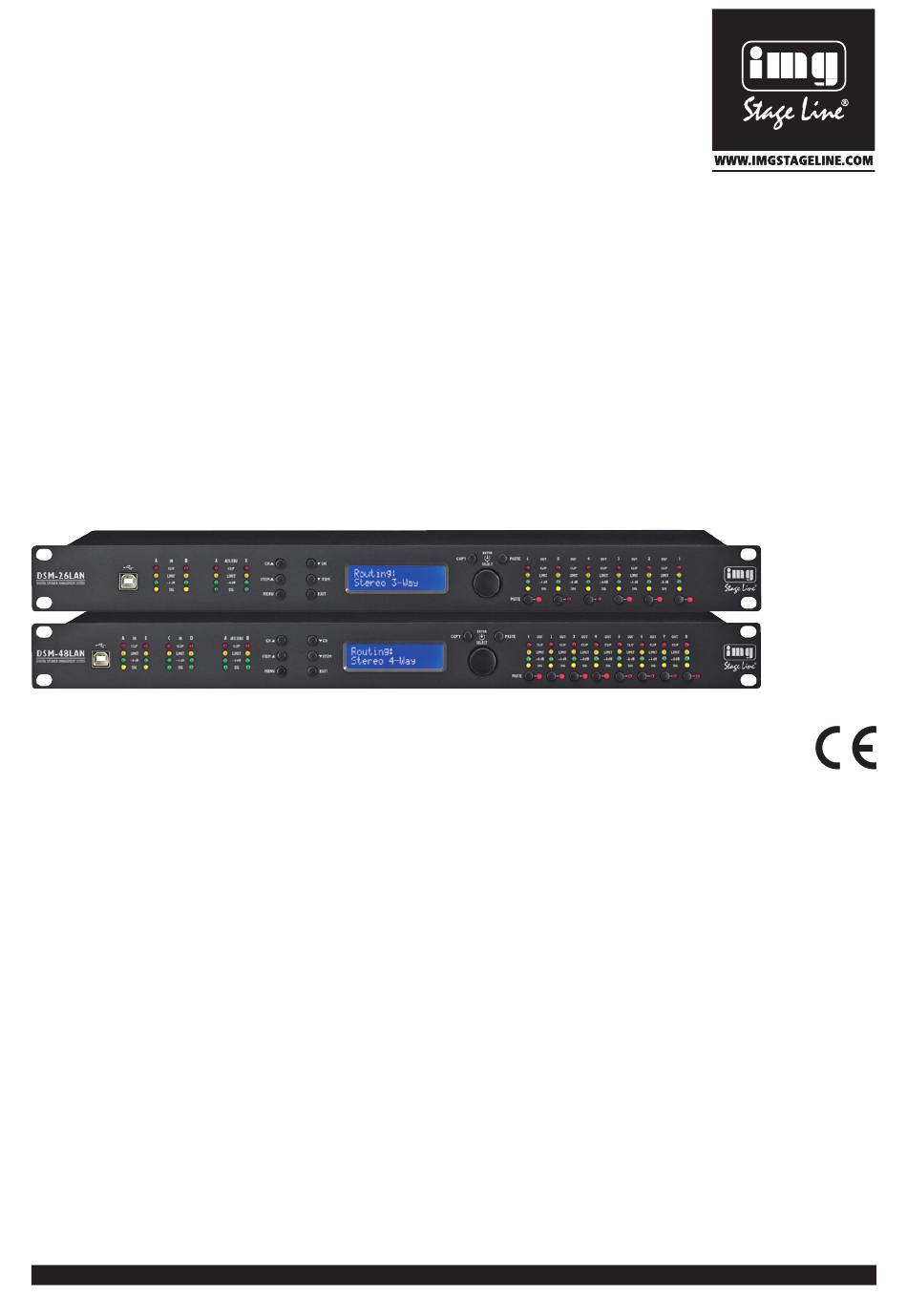

- Page 1 Digital Speaker Management System DSM-26LAN Order No. 25.5760 DSM-48LAN Order No. 25.5770 INSTRUCTION MANUAL ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS...
- Page 2 - Ten parametric filters per input and output - EQs can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass - 1000ms delay per input, 20ms delay per output (DSM-26LAN) - 2000ms delay per input, 2000ms delay per output (DSM-48LAN) - Butterworth, Bessel, Linkwitz-Riley filters up to 24dB / oct.
-
Page 3: Safety Instructions
Instruction Manual for DSM-26LAN / DSM-48LAN Safety Instructions WARNING, FOR YOUR PROTECTION READ THE FOLLOWING: The apparatus shall not be exposed to dripping or splashing liquid and no object filled with liquid, such as vases, shall be placed on the apparatus. -
Page 4: Front Panel
Instruction Manual for DSM-26LAN / DSM-48LAN 1.Overview of Connectors and Controls In addition to the available features described in this manual, you also have the option of controlling the DSM with a PC or MAC from a remote location over your network or via a USB cable. Please refer to the Software Manual for details. -
Page 5: Rear Panel
Instruction Manual for DSM-26LAN / DSM-48LAN 1.2.Rear Panel 1.2.1.Power Connector The DSM-26/-48LAN has an internal power supply that will accept voltages ranging from 200V - 240V and frequencies from 50Hz-60Hz. An IEC cord is included. 1.2.2.Power Switch The Power Switch turns the DSM-26/-48LAN on and off. Note: we recommend that power amplifiers connected to the product, should be powered down prior to cycling the power of this product. -
Page 6: Getting Started
Instruction Manual for DSM-26LAN / DSM-48LAN 2.Getting Started 2.1.Quick Start For those of you that wish to jump right in, the following information has been provided to act as a quick start guide for optimizing performance of your processor. 2.2.Connections 2.2.1.Signal Connections... -
Page 7: System Setup And Gain Structure
Instruction Manual for DSM-26LAN / DSM-48LAN 2.2.2.3.Fixed IP address It is also possible to set a fixed IP address and subnet mask for the DSM-26/-48LAN. WARNING: If you set a wrong address (in a different range than your computer), you may not be able to connect anymore. -
Page 8: Setup And Operation
Instruction Manual for DSM-26LAN / DSM-48LAN 3.Setup And Operation Before plugging the processor in, always make sure that the power supply matches the product specification voltage. Install this device on a flat, stable surface, not bend or curved. Do not supply power before all components of the system are set up and connected properly. -
Page 9: High Pass Filter
Instruction Manual for DSM-26LAN / DSM-48LAN 3.2.5.High Pass Filter Adjust the high pass frequency by dialing the rotary encoder. You can switch the high pass filter off by dialing the rotary encoder down (counterclockwise) until the frequency passes 20Hz. Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder. You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz Riley12dB, Butterworth 18dB, Bessel 18dB, Butterworth 24dB and Bessel 24dB. -
Page 10: Output Setup
Instruction Manual for DSM-26LAN / DSM-48LAN 3.3.Output Setup Press the Channel Up or Down button to select the output channel you wish to edit. Make the first settings with the output turned low or muted. To toggle through the different items, press the Item Up or Item Down buttons. -
Page 11: Phase Inversion
Instruction Manual for DSM-26LAN / DSM-48LAN 3.3.6.Parametric Equalizer (PEQ) There are ten bands of parametric equalization. Each band can be adjusted freely over the complete frequency range of 20Hz to 20kHz. Adjust the frequency by dialing the rotary encoder. Press the rotary encoder to select the parameters. The available parameters are: Frequency (20Hz to 20kHz), Gain (-12dB to +12dB), Q (0.2 to 25), Enabled (On or Off), Type (Bell, High Shelf, Low Shelf, Notch,... -
Page 12: System Menu
Instruction Manual for DSM-26LAN / DSM-48LAN 3.4.System Menu Push the Menu button to enter the system menu. Push the Menu button again to toggle through the menu items. The available menu items are: 3.4.1.Load Preset Turn the rotary encoder to select the preset you wish to load. Push the rotary encoder to select it, then turn it again to select "YES"...
