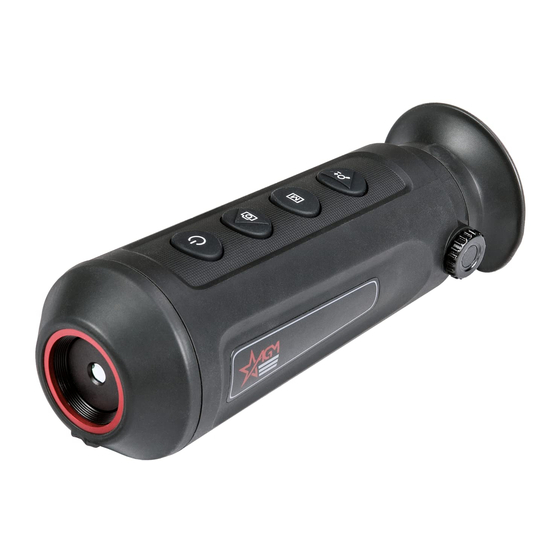

AGM Global Vision ASP-Micro TM-160 User Manual

Thermal imaging monocular
Hide thumbs
Table of Contents

Advertisement

Quick Links

ASP-MICRO
THERMAL IMAGING MONOCULAR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-Micro TM-160 and is the answer not in the manual?

Questions and answers

Related Manuals for AGM Global Vision ASP-Micro TM-160

Summary of Contents for AGM Global Vision ASP-Micro TM-160

  • Page 1 ASP-MICRO THERMAL IMAGING MONOCULAR USER MANUAL...
  • Page 2 AGM Global Vision. If you have questions that are not covered in this manual, or need service, contact AGM Global Vision customer support for additional information prior to returning a product. AGM Global Vision...
  • Page 3 FCC INFORMATION Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator &...

  • Page 4: Table Of Contents

    1.2 Key Features 1.3 Standard Components 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    SAFETY SUMMARY • Read and follow all instructions • Read all warnings • Only use the attachments/accessories specified by the manufacturer • All service must be provided by the manufacturer WARNING: This product contains natural rubber latex, which may cause potentially fatal allergic reactions! If you are allergic to latex, it is important that you strictly avoid exposure to products that contain it.

  • Page 6: General Information

    FIGURE 1-1. MAIN PARTS TABLE 1-1. MAIN PARTS ITEM DESCRIPTION ITEM DESCRIPTION Body Diopter Adjustment Knob Lens Cap Eyepiece POWER Button USB Interface Cover CAPTURE Button Tripod Screw MODE Button Battery Status Indicator ZOOM Button USB type C Interface AGM Global Vision...

  • Page 7: Key Features

    1.2 KEY FEATURES • 160×120 or 384×288 resolution, high sensitivity detector • Adaptive AGC, DDE, 3D DNR • 720×540 resolution LCOS display • Distance measurement • Highest temperature tracking • Built-in memory module supports video recording and snapshot capturing • Wi-Fi hotspot •...

  • Page 8: Operating Instructions

    NOTE: Please charge the monocular with the delivered USB cable and power adapter. The charging temperature should be 0°C to 45°C (32°F to 113°F). 1. Lift the USB cover. BATTERY STATUS INTERFACE INDICATOR FIGURE 2-1. ASP-MICRO CHARGING AGM Global Vision...
  • Page 9 2. Plug in the USB cable and charge the device. 3. Plug the power adapter to the power source. TABLE 2-1. BATTERY LED INDICATOR STATUS INDICATORS FUNCTIONS Flashing Red & Green Error occurred. Solid Red Battery is properly charged. Solid Green Battery is fully charged.
  • Page 10 3. Adjust the diopter adjustment knob until the OSD text or image is clear. DIOPTER ADJUSTMENT KNOB FIGURE 2-4. DIOPTER ADJUSTMENT KNOB 4. Point the monocular towards the target of the view. 5. Set palette, brightness, contrast, scene mode and FFC (Flat Field Correction), to display the best image effect. AGM Global Vision...
  • Page 11 2.1.7 PALETTE SETTINGS You can select different palettes to display the same scene in different effects. Press button to switch palettes. TABLE 2-3. PALETTE SETTINGS PALETTE DESCRIPTION The hot part is white-colored in view. The higher the WHITE HOT temperature is, the lighter the color is. The hot part is black-colored in view.

  • Page 12: Main Function

    OSD information. 5 Levels of BRIGHTNESS Press to adjust the brightness. brightness 5 Levels of CONTRAST Press to adjust the contrast. contrast Recognition Press to switch between the SCENE Recognition mode and Jungle MODE mode. Jungle AGM Global Vision...
  • Page 13 MENU ITEM SYMBOL OPTION FUNCTION Press to enable or disable the NETWORK Wi-Fi hotspot. Hotspot Auto / Manual / Press to select the FFC mode. External 0.8m/1.2m/ 1.8m/3.0m Press to enter distance MEASURE Target measurement mode. Height Press to enable/disable hot spot mark (marking the spot of TRACKING highest temperature).
  • Page 14 Manual: Hold button in live view to correct the nonuniformity of display. External: Cover the lens cap, then hold button in live view to correct the nonuniformity of display. 3. Hold button to confirm. AGM Global Vision...
  • Page 15 2.2.8 DISTANCE MEASUREMENT The device can detect the distance between the target and the observation position. NOTE: When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. 1. Hold button to show the menu. 2.

  • Page 16: Client Software Introduction

    The device password is set by user at first activation. If the password was lost or forgotten, it can be reset. To make a reset, provide the following action: 1. When the monocular is turned on, hold the button for three seconds to activate the OSD menu. AGM Global Vision...
  • Page 17 2. Move the cursor to menu item and press the button to restore all parameters to default settings. 1. Open the APP and connect the phone or pad with the device. Asp-Micro TM160 2. If the device is inactivated, set the password and activate it. If the device is activated, enter the password to add it to app.
  • Page 18 3. When the device is added, the live view can be seen. You can view the interface of the monocular on the software. User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or pad as well as record video on phone/pad memory. AGM Global Vision...

  • Page 19: Maintenance

    3 MAINTENANCE 3.1 MAINTENANCE 3.1.1 CLEANING PROCEDURES 1. Gently brush off any dirt from the body of the device using a clean, soft cloth. 2. Moisten the cloth with fresh water and gently wipe down the external surfaces (except lenses). 3.

  • Page 20: Troubleshooting

    2. If you use other USB cables, make sure the cable monocular. length is no longer than 1 m. 3. Whether the Wi-Fi function is turned on. If so, go to OSD menu and turn off Wi-Fi. AGM Global Vision...

  • Page 21: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 22 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...

  • Page 23: Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS ASP-MICRO TM160 ASP-MICRO TM384 Detector Type Vanadium Oxide Uncooled Focal Plane Arrays Resolution 160×120 384×288 Refresh Rate 50 Hz Response Waveband 8 μm to 14 μm Lens (Focal Length) 6.2 mm 15 mm Aperture F1.1 F1.0 Field of View (H×V) 15.61°...
  • Page 24 AGM Global Vision MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE Andrey Lyapchev #7 Sofia, P.C. 1756 Bulgaria Tel. +44.292.255.0509 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
