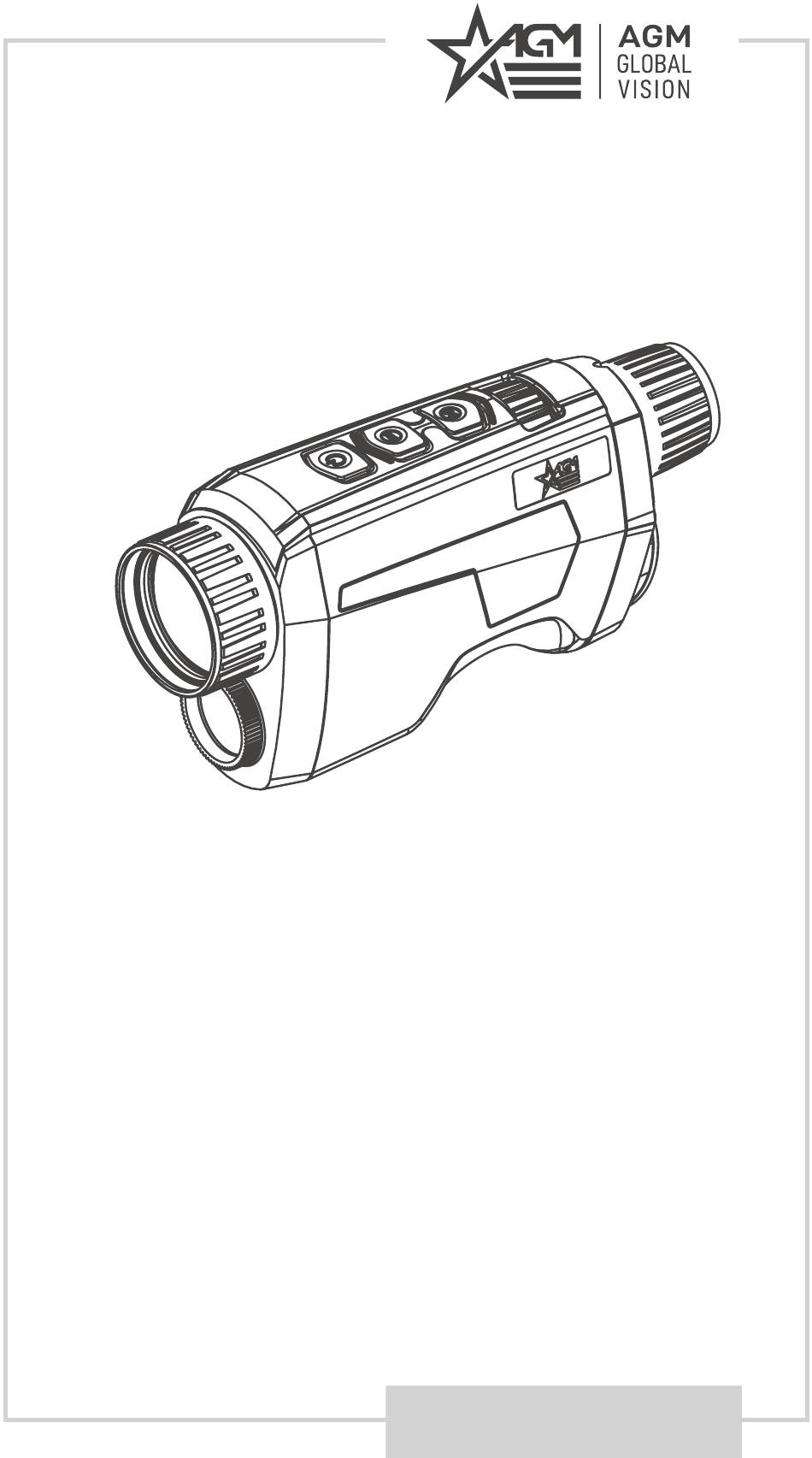

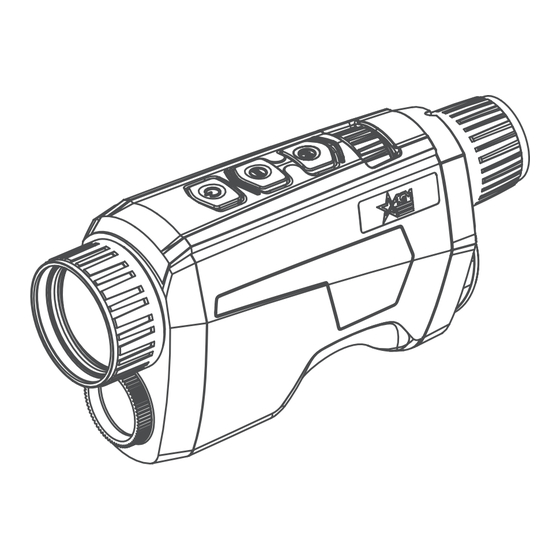

- Page 1 FUZION FUSION THERMAL & OPTICAL BI-SPECTRUM MONOCULAR USER MANUAL...
- Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S.
- Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info INDUSTRY CANADA ICES-003 COMPLIANCE This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. FUZION USER MANUAL...
-
Page 4: Table Of Contents
1.2 Key Features 1.3 Standard Components 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision... -
Page 5: Safety Summary
• The device can not be charged, please use the supplied charger to charge the battery. • Please purchase the adapter by yourself. The using environment of the adapter should be consistent with that of the device. FUZION USER MANUAL... - Page 6 EMERGENCY: If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center. AGM Global Vision...
-
Page 7: General Information
The Fuzion uses one 18650 rechargeable Lithium battery for up to 5-hours of operating time. In addition, an external power supply can be used to provide an increase in operating time. -
Page 8: Key Features
The ITEM NO. column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM DESCRIPTION QUANTITY Monocular 18650 Rechargeable Battery USB Cable Battery Charger Power Adapter Lens Cloth User Manual AGM Global Vision... -
Page 9: Operating Instructions
3. Align the marks on the battery cover and the device, and put the battery cover on the battery. 4. Rotate the battery cover clockwise to fix it. FIGURE 2-1. BATTERY INSTALLATION NOTE: Remove the battery from the battery compartment if the device is not used for a long time. FUZION USER MANUAL... - Page 10 Hold: Enter/Exit the menu. Adjusts the digital zoom. OPERATION WHEEL Selects the functions in menu mode. POWER INDICATOR Indicate the power ON/OFF. NOTE: Press the CAPTURE button and MENU button at the same time to start or stop recording. AGM Global Vision...
- Page 11 NOTE: You must perform the focus adjustment before any further use of the riflescope. 5. Set palette, brightness, contrast, scene mode and FFC (Flat Field Correction), to display the best image effect. FUZION USER MANUAL...
- Page 12 (1x, 2x, 4x, or 8x). The image magnification value is displayed on the screen: - AGM Fuzion TM25-384: 2.5x, 5x, 10x, 20x - AGM Fuzion TM35-384: 3.5x, 7x, 14x, 28x - AGM Fuzion TM35-640: 2x, 4x, 8x, 16x 2.1.9...
- Page 13 • The device displays images when you connect it to PC. But functions such as recording, capturing and hot spot are disabled. • When you connect the device to PC for the first time, it installs the drive program automatically. FUZION USER MANUAL...
-
Page 14: Main Function
CALIBRATION Auto / Select the Flat Field Correction Manual / (FFC) mode. External Turn on and off the CVBS Output function to view the video on CVBS CVBS monitor. <26m, FUSION Switch fusion level. 26~53m, LEVEL >53m AGM Global Vision... - Page 15 2. Rotate the wheel to select Brightness menu item and press button to adjust the brightness. You can select one of five levels of the brightness to adjust the image lighter or darker. FUZION USER MANUAL...
- Page 16 Auto: The monocular performs FFC automatically when switching on or rebooting the camera. External: Cover the lens cap, then enter Trigger Calibration in the menu and press button to correct the nonuniformity of display (section 2.2.6). 3. Hold button to exit. AGM Global Vision...
- Page 17 DPC interface, the menu at the bottom of the interface can be mirrored to the top of the interface. The selected defective pixel can be magnified and displayed at the bottom right of the interface. FIGURE 2-6. DEFECTIVE PIXELS CORRECTION FUZION USER MANUAL...
- Page 18 5. Hold to save settings and exit. 2.2.15 OSD 1. Hold button to go to the menu. 2. Rotate the wheel to select menu item and press button to switch the OSD mode. AGM Global Vision...
- Page 19 5. Open the APP and connect your phone with the device. You can view the interface of monocular on your phone. NOTE: When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically. FUZION USER MANUAL...
-
Page 20: Client Software Introduction
User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or tablet as well as record video on phone/tablet memory. Device [Fuzion] Fuzion FIGURE 2-7. CLIENT SOFTWARE AGM Global Vision... -
Page 21: Maintenance
During the update, the screen will display the inscription “Upgrading ...”. The update process will be completed when the inscription “Upgrading ...” goes out. Repeat steps 4-6 for each updating file. 7. Turn off the device and disconnect it from your PC. FUZION USER MANUAL... -
Page 22: Troubleshooting
The PC cannot 1. Whether the device is connected to your PC with identify the standard USB cable. monocular. 2. If you use other USB cables, make sure the cable length is no longer than 1 m. AGM Global Vision... -
Page 23: Warranty Information
Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;... - Page 24 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...
-
Page 25: Specifications
5 SPECIFICATIONS 5.1 SPECIFICATIONS FUZION FUZION FUZION TM25-384 TM35-384 TM35-640 12 μm VOx 12 μm VOx 12 μm VOx Detector Type Uncooled Focal Uncooled Focal Uncooled Focal Plane Arrays Plane Arrays Plane Arrays Resolution 384 × 288 384 × 288 640 ×... - Page 26 (6.3 × 3.4 × 2.0 in) (6.6 × 3.4 × 2.0 in) (6.6 × 3.4 × 2.0 in) Weight 470 g (1.04 Ib) 480 g (1.06 Ib) 480g (1.06 Ib) (w/o batteries) All data subject to change without notice. AGM Global Vision...
- Page 28 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
