AGM Global Vision FUZION LRF User Manual

Fusion thermal & optical bi-spectrum monocular with laser rangefinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

FUZION LRF
FUSION THERMAL & OPTICAL
BI-SPECTRUM MONOCULAR
WITH LASER RANGEFINDER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUZION LRF and is the answer not in the manual?

Questions and answers

Related Manuals for AGM Global Vision FUZION LRF

Summary of Contents for AGM Global Vision FUZION LRF

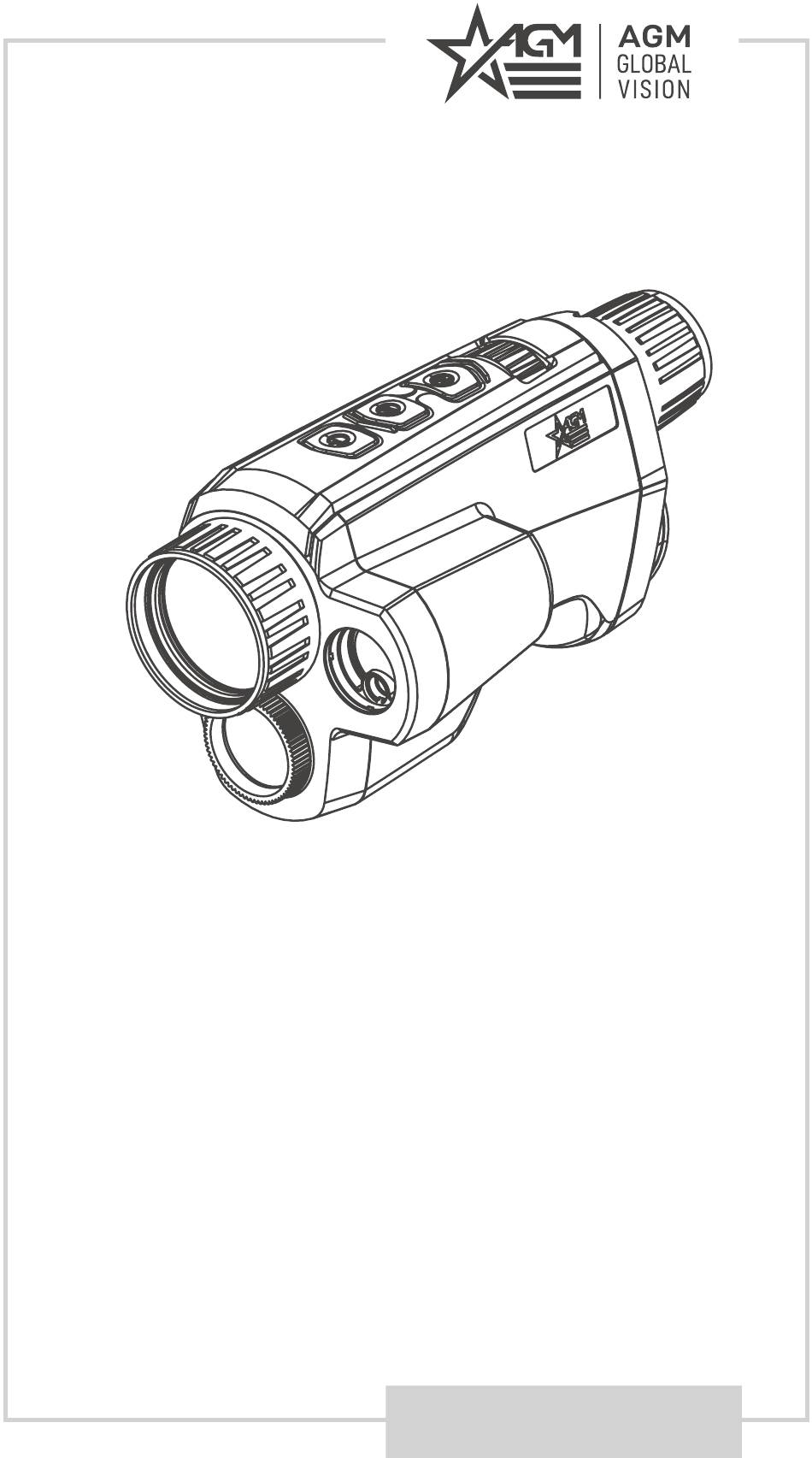

  • Page 1 FUZION LRF FUSION THERMAL & OPTICAL BI-SPECTRUM MONOCULAR WITH LASER RANGEFINDER USER MANUAL...
  • Page 2 EXPORT INFORMATION Buyer acknowledges that all products supplied by AGM Global Vision, LLC are subject to U.S. export control laws, including, but not limited to, the Export Administration Regulations, the International Economic Emergency Powers Act, and various U.S.
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info INDUSTRY CANADA ICES-003 COMPLIANCE This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. FUZION LRF USER MANUAL...

  • Page 4: Table Of Contents

    1.2 Key Features 1.3 Standard Components 2. OPERATING INSTRUCTIONS 2.1. Basic Operations 2.2 Main Function 2.3 Client Software Introduction 3. MAINTENANCE 3.1 Maintenance 3.2 Troubleshooting 4. WARRANTY INFORMATION 4.1 Warranty Information and Registration 5. SPECIFICATIONS 5.1 Specifications AGM Global Vision...

  • Page 5: Safety Summary

    The device can not be charged, please use the supplied charger to charge the battery. • Please purchase the adapter by yourself. The using environment of the adapter should be consistent with that of the device. FUZION LRF USER MANUAL...
  • Page 6 Before enabling the light supplement function, make sure no human or inflammable substances are in front of the laser lens. Do not place the device where minors can fetch it. AGM Global Vision...

  • Page 7: General Information

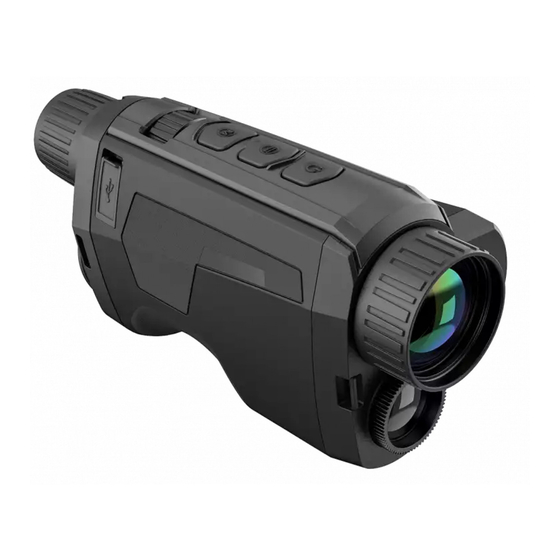

    1 GENERAL INFORMATION SYSTEM DESCRIPTION The AGM Fuzion LRF Handheld Thermal & Optical Bi-spectrum Monocular is detector, 1024×768 OLED display and eyepiece with a large field of view. The device can quickly detect hiding objects even under extreme environments such as smoke, fog, rain, snow, etc.

  • Page 8: Key Features

    The ITEM NO. column indicates the number used to identify items in Figure 1-2. FIGURE 1-2. STANDARD COMPONENTS TABLE 1-2. STANDARD COMPONENTS ITEM DESCRIPTION QUANTITY Monocular 18650 Rechargeable Battery USB Cable Battery Charger Power Adapter Lens Cloth User Manual AGM Global Vision...

  • Page 9: Operating Instructions

    3. Align the marks on the battery cover and the device, and put the battery cover on the battery. 4. Rotate the battery cover clockwise to fix it. FIGURE 2-1. BATTERY INSTALLATION NOTE: Remove the battery from the battery compartment if the device is not used for a long time. FUZION LRF USER MANUAL...
  • Page 10 Hold: Enter/Exit the menu. Adjusts the digital zoom. OPERATION WHEEL Selects the functions in menu mode. POWER INDICATOR Indicate the power ON/OFF. NOTE: Press the MEASURE button and MENU button at the same time to start or stop recording. AGM Global Vision...
  • Page 11 NOTE: You must perform the focus adjustment before any further use of the riflescope. 5. Set palette, brightness, contrast, scene mode and FFC (Flat Field Correction), to display the best image effect. FUZION LRF USER MANUAL...
  • Page 12 (1x, 2x, 4x, or 8x). The image magnification value is displayed on the screen: - AGM Fuzion LRF TM25-384: 2.5x, 5x, 10x, 20x - AGM Fuzion LRF TM35-384: 3.5x, 7x, 14x, 28x - AGM Fuzion LRF TM35-640: 2x, 4x, 8x, 16x 2.1.9...
  • Page 13 • The device displays images when you connect it to PC. But functions such as recording, capturing and hot spot are disabled. • When you connect the device to PC for the first time, it installs the drive program automatically. FUZION LRF USER MANUAL...

  • Page 14: Main Function

    Select the Flat Field Correction Manual / (FFC) mode. External Turn on and off the CVBS Output function to view the video on CVBS CVBS monitor. <26m, FUSION Switch fusion level. 26~53m, LEVEL >53m Correct dead pixel manually. AGM Global Vision...
  • Page 15 You can select one of five levels of the brightness to adjust the image lighter or darker. 2.2.4 SCENE MODE You can select proper Scene Mode according to environment temperature to improve the display effect. FUZION LRF USER MANUAL...
  • Page 16 You can view the video on CVBS monitor, to get a better and clear image, more convenient to check the detail. 1. Connect the USB-CVBS cable to USB port of thermal monocular and to monitor’s CVBS port. AGM Global Vision...
  • Page 17 1. Hold button to show the menu. 2. Rotate the wheel to select Language menu item and press button to select the language. 3. Rotate the wheel to select the language as required, and press to confirm. FUZION LRF USER MANUAL...
  • Page 18 The device can detect the distance between the target and the observation position with laser. NOTE: When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. FIGURE 2-6. DISTANCE MEASUREMENT RESULT AGM Global Vision...
  • Page 19 5. Open the APP and connect your phone with the device. You can view the interface of monocular on your phone. NOTE: When the power is less than 15%, the Wi-Fi hotspot function will be turned off automatically. FUZION LRF USER MANUAL...

  • Page 20: Client Software Introduction

    User can change such image parameters as brightness, contrast, zoom, palettes directly via phone or tablet as well as record video on phone/tablet memory. Device [Fuzion LRF] Fuzion LRF FIGURE 2-7. CLIENT SOFTWARE...

  • Page 21: Maintenance

    During the update, the screen will display the inscription “Upgrading ...”. The update process will be completed when the inscription “Upgrading ...” goes out. Repeat steps 4-6 for each updating file. 7. Turn off the device and disconnect it from your PC. FUZION LRF USER MANUAL...

  • Page 22: Troubleshooting

    The PC cannot 1. Whether the device is connected to your PC with identify the standard USB cable. monocular. 2. If you use other USB cables, make sure the cable length is no longer than 1 m. AGM Global Vision...

  • Page 23: Warranty Information

    Customer or by any party other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as “close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM Global Vision dealer;...
  • Page 24 AGM Global Vision by the customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special, indirect, incidental, or consequential...

  • Page 25: Specifications

    5 SPECIFICATIONS 5.1 SPECIFICATIONS FUZION LRF FUZION LRF FUZION LRF TM25-384 TM35-384 TM35-640 Uncooled Focal Detector Type Uncooled Focal Uncooled Focal Plane Arrays Plane Arrays Plane Arrays Resolution 384 × 288 384 × 288 640 × 512 Refresh Rate 50 Hz...
  • Page 26 FUZION LRF FUZION LRF FUZION LRF TM25-384 TM35-384 TM35-640 Optical Module Lens Focal 22 mm 22 mm 22 mm Length Laser Rangefinder: Laser Rangefinder: Laser Rangefinder: Distance up to 600 m, up to 600 m, up to 600 m, Measurement ±1 m accuracy...
  • Page 28 AGM Global Vision, LLC MAIN OFFICE 173 West Main Street PO Box 962 Springerville, AZ 85938 Tel. +1.928.333.4300 info@agmglobalvision.com www.agmglobalvision.com EUROPEAN OFFICE #6 Andrey Lyapchev Blvd Sofia, P.C. 1756 Bulgaria Tel. +35.988.412.5573 info@agmglobalvision.eu www.agmglobalvision.eu AGMglobalvision.com...
