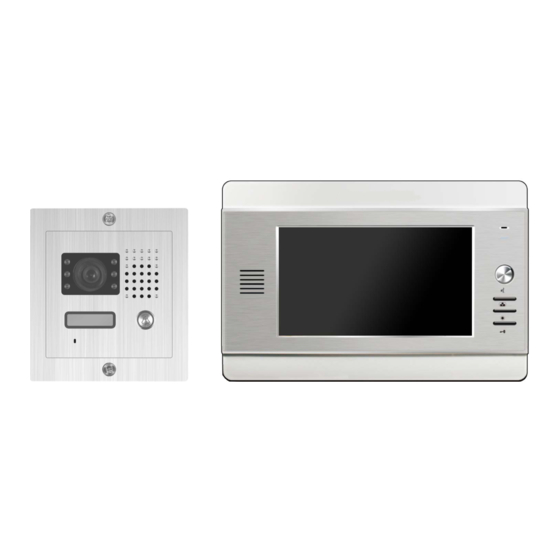

- Page 1 SVT-4 Outdoor Station B User Manual Please read this user manual prior to installing the system, and keep it well for future use.
-
Page 2: Table Of Contents
3. Specifications....................... 2 4. Mounting ......................3 5. System Wiring and Connections ................. 4 5.1 SVT-4 System with one entrance ..............4 5.2 SVT-4 System with two entrances ..............5 5.3 SVT-4 Wiring Connection ................6 6. Cable Requirements .................... 7 7. -
Page 3: Parts And Functions
1.Parts and Functions Description LED lights High resolution camera Built-in speaker Call button Built-in microphone Status light. Calling in: red light Monitoring/Talking: blue light Description Built-in microphone Monitor button Intercom button Door unlock button Talk button TFT 7” color display Built-in speaker Talking/Ring volume Brightness... -
Page 4: Terminal Descriptions
NO/NC: Max. 14.5V, 120mA Lock Power Supply: Must be used according to lock. Communication transmission: 2-way communication Unlocking time: 01s (can be adjusted when using SVT-T20G device) Working temperature: 14°F to 131°F / -10°C to 55°C Communication duration: 120s. Communication transmission: 2-way communication... -
Page 5: Mounting
4.Mounting Mounting without Rain Guard: Install into the wall Screw hole 50mm Screws (fix with 160-165 button case) Mounting with Rain Guard: Screw anchors Wall hole Rain cover Screws Screws (fix with rain cover) -
Page 6: System Wiring And Connections
5.System Wiring and Connections 5.1. SVT-4 SYSTEM WITH ONE ENTRANCE Power supply for lock Outdoor station 1... -
Page 7: Svt-4 System With Two Entrances
5.2. SVT-4 SYSTEM WITH TWO ENTRANCES Power supply for lock Power supply for lock Outdoor station 2 Outdoor station 1... -
Page 8: Svt-4 Wiring Connection
5.3. SVT-4 WIRING CONNECTION 1. Red 2. Blue 3. Yellow 4. White Indoor Monitor 1-Audio 2-GND 3-V+ 4-Video 1. Red 1. Red 2. Blue 2. Blue 3. Yellow 3. Yellow 4. White 4. White NOTE: Do not remove any of the jumpers from the back of the indoor monitors. -
Page 9: Cable Requirements
6.Cable Requirements Cable Usage CAT5 cable (must solder the wires together to ensure a good connection). 230 feet 30 feet Using different cables may affect the maximum distance the system can reach. 70 meters 10 meters NOTE: 1. The system expands to a maximum of 2 outdoor stations and 4 indoor monitors. 2. -
Page 10: User Instructions
7.User instructions Visitor calls The visitor presses The visitor presses the call button the call button on outdoor on outdoor station-1 station-2 Ring Ring Press the call button at anytime, the indoor monitor will show the view The visitor image shown on from front door... -
Page 11: Monitor
Monitor Press the monitor button Press once Press twice Monitor outdoor Monitor outdoor station 1 station 2 The indicator light of The indicator light of Door 1 is on. Door 2 is on. Press the Press the monitor talk button button Monitor the Press the... -
Page 12: Intercom
Intercom In the standby mode, press intercom button indoor monitor All indoor monitors ring indoor monitor presses button or pick up the handset to talk. During the talking, any indoor monitor presses the intercom Talk begins button Press the TALKPress the TALKING button hang-upbutton or hang-... - Page 16 The design and specifications of this user manual can be changed without any notification to the user. All copyright and interpretation rights are reserved to SVT Innovations Inc.
