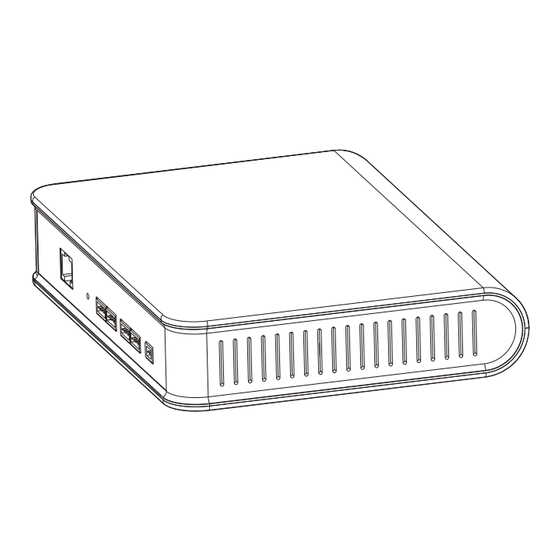

SVT-4 Cloud Server
User Manual
Please read this user manual prior to installing the system, and keep it well for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVT-4 and is the answer not in the manual?

Questions and answers

Related Manuals for SVT SVT-4

Summary of Contents for SVT SVT-4

  • Page 1 SVT-4 Cloud Server User Manual Please read this user manual prior to installing the system, and keep it well for future use.

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction......................1 2. System diagram ....................1 3. Wiring diagram ....................2 4. Specifications ...................... 2 5. Technical parameters ..................3 6. Set up ........................3 6.1 Android system....................3-7 6.1.1 Downloading the App ................3 6.1.2 Installing the App ................... 3 6.1.3 App - User instructions ................

  • Page 3: Introduction

    1. Introduction The SVT-4 Cloud Server transfers call signals from the SVT-4 Outdoor Stations to a smart phone. This allows a live view of your front door, two-way communication with your guest, and unlocking the door remotely. When the call button of the outdoor station is pressed, the indoor monitor rings and shows a live video, and instantly sends the call signal to any registered smart phone.

  • Page 4: Wiring Diagram

    3. Wiring Diagram Door1 Door 2 14.5V DC Power black Power 14.5V Network port white (RJ45) indoor monitor yellow connection for blue door 2 white yellow outdoor station2 blue white indoor monitor yellow connection for blue door 1 white yellow outdoor station1 blue 4.

  • Page 5: Technical Parameters

    5. Technical parameters Technical parameters Operating Voltage: DC 14.5V Standby power consumption : 2.8 4.5W Standby Current: 230mA Operating Current:: 250mA 6. Setup 6.1 Android System 6.1.1 Downloading the application Download the application from GOOGLE PLAY into your smart phone. Note: GOOGLE ID is required when downloading application from the GOOGLE PLAY.

  • Page 6: App - User Instructions

    (Picture 1-5). COMViewer picture 1-4 When the SVT-4 Cloud Server is used in the first time, account name and password is required. Select CREATE ACCOUNT. Enter the user registration information and complete the registration. Then the system return to the account page.
  • Page 7 Cloud Server connects to the SVT-4 outdoor station. .When a visitor presses the CALL button of the SVT-4 outdoor station, the user can monitor and talk to the visitor, take a snap shot and unlock the door as shown on picture 1-11.

  • Page 8: Application Settings

    Volume: Select to adjust the volume. Check the video recordings Select 'EVENT' to review all the video recordings from the SVT-4 outdoor station (Picture 1-12). NOTE: The system automatically records a 20-second video once a gues presses the call button.
  • Page 9 Notification Setting September 10,2013 Enable Notification Notice Have an event from[0022F482006] Notifications Toggles Apply picture picture NOTE : To test the smart phone notification function, press the call button of the SVT-4 outdoor station two minutes lafter the last call.

  • Page 10: Ios System

    6.2 iOS System 6.2.1 Downloading the application Download the application from APP STORE into the smart phone. (Note: APPLE ID is required when downloading the application from the APP STORE. 6.2.2 Installing the application Select the APP STORE icon (picture 2-1). Search for COMViewer as shown on picture 2-2 and select the install button to download and install the application.

  • Page 11: App - User Instructions

    2-5. COMViewer picture 2-4 When the SVT-4 Cloud Server is used in the first time, account name and password is required. Select CREATE ACCOUNT. Enter the user registration information and complete the registration. Then the system return to the account page.
  • Page 12 Add Camera Select 'Add Camera' (Picture 2-6). Select 'NEXT' (Picture 2-7) to enter the MAC address and Act. Code setting interface as shown on picture 2-8. User can choose between SCAN QR CODE or MANUAL INPUT. For manual input, please refer to picture 2-9. Back Back Camera List...
  • Page 13 Snap shot: Select to take a picture of the guest. The picture will be stored in the smart phone memory. Volume: Select to adjust the volume. Check the video recordings Select 'EVENT' to review all the video recordings from the SVT-4 outdoor station (Picture 2-12). -11-...
  • Page 14 NOTE: The system automatically records a 20-second video once a gues presses the call button. When the memory of the SVT-4 Cloud Server is full, the system will delete the oldest video automatically. Application settings Select 'SETTING'. The setting available are the following: Account Settings, Google Drive Account Setting, Notification Setting, Version Info, Contact Us and Support as shown on picture 2-13.
  • Page 15 (Picture 2-16). Notification Setting Notification Setting Setting ting Enable Notification picture picture NOTE : To test the smart phone notification function, press the call button of the SVT-4 outdoor station two minutes lafter the last call. -13-...
  • Page 16 The design and specifications of this user manual can be changed without any notification to the user. All copyright and interpretation rights are reserved to SVT Innovations Inc.
