MasterCool 43707 Quick Start Manual

1
WARNINGS
• Wear safety goggles, gloves and protective clothing.
• Use in a well-ventilated area.
• DO NOT OPEN A HOT COOLANT SYSTEM. Hot coolant systems are pressurized and can cause serious personal
injuries. Follow the vehicle manufacturers instruction to open a coolant system.
• Keep yourself, clothing and tools clear of all moving parts.
• Read and follow the instructions contained on this document prior to using the tool.
INSTRUCTIONS
Step #1 PREPARE THE VEHICLE THAT IS TO BE TESTED
• Drain some of the antifreeze out of the radiator until the water level is approximately 1-1/2 inches below the fill neck
of the radiator.
• NOTE: ANTI-FREEZE SHOULD NOT BE ALLOWED INTO THE LEAK TEST TOOL. If this happens, stop the test when the
coolant reaches the red line
• NOTE: This step is necessary to provide a void in
the top of the radiator for CO2 to accumulate.
Step #2 PREPARE THE TOOL FOR TESTING
• Remove the cap from the top of the test
chamber.
• Pour the test fluid into the top chamber to the
line marked, "CO2 leak detector."
• NOTE: Keep the bottle of test fluid capped to
reduce the risk of contamination
• Install the cap onto the top test chamber.
• Attach the rubber bulb pump to the cap on the
top of the test chamber.
Step #3 TEST THE VEHICLE (fig. 1)
• Start the car.
• Insert the test chamber into the radiator fill neck
until the rubber cone makes a seal with the

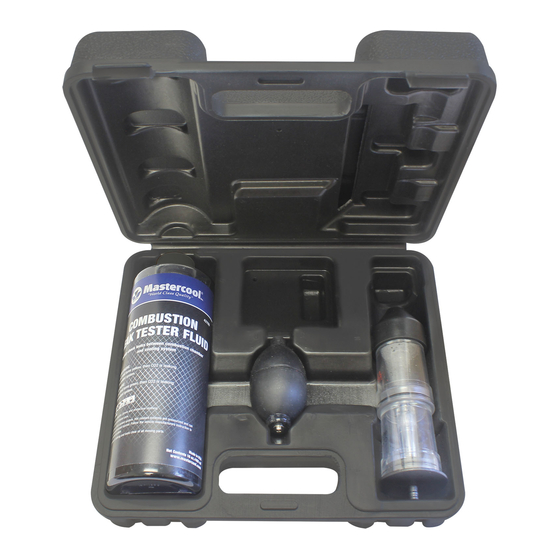

43707 COMBUSTION GAS LEAK TESTER KIT
6
5
2
4
3
(LEVEL)
in the lower chamber. Clean the tool and retest.
ITEM PART# DESCRIPTION
1. 43709 Combustion Leak Tester Fluid
2. 43025-R Rubber Bulb
3. 43025-TC Test Chamber
4. 43025-2OR Set of O-Rings for 43025-TC
5. 43025-RC Rubber Cone for 43025-TC
6. 43707-PB Plastic Box
fig. 1
1
