MasterCool 43305 Manual

ITEM# PART#
1 43302-14
2 43302-15
3 43302-16
4 43302-17
5 43302-18
6 43302-19
7 43302-20
8 43302-21
9 43302-5A
10 43302-5B
11 43305-PB
REPLACEMENT PARTS:
43302-14G Gasket for #14 Aluminum Adapter
43302-15G Gasket for #15 Aluminum Adapter
43302-16G Gasket for #16 Aluminum Adapter
43302-17G Gasket for #17 Aluminum Adapter
43302-18G Gasket for #18 Aluminum Adapter
43302-20G Gasket for #20 Aluminum Adapter
43302-22G Gasket for #22 Aluminum Adapter
FEATURES:
• Detects and exposes external system leaks
• Detects internal engine leaks due to blown gaskets or cracked block
• Includes blue and black radiator cap test connectors
• Includes 8 adapters (No's 14, 15, 16, 17, 18, 19, 20, 21 ) to fit most popular domestic and import cars and trucks
SAFETY WARNING AND PRECAUTIONS:
WARNING: The instructions and warnings contained in this manual should be read and understood before using or
operating this tool. Do not allow anyone to use or operate this tool until they have read this manual and have developed
a thorough understanding of how this tool works. Failure to observe any of the following instructions could result in
severe personal injury to tool user and bystanders, or cause damage to the tool and property. Keep this manual for future
reference.
NOTE: The warnings and cautions discussed in this instruction manual cannot cover all possible conditions and situations
that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
WARNING: Use safety equipment. User and bystanders should use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use an ANSI approved dust mask or respi-
rator when working around metal, wood, and chemical dusts and mists. This applies to all persons in the work area. Also
use non-skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.
WARNING: Keep bystanders and children out of the work area while operating this tool.
WARNING: Always keep your work area clean, uncluttered, and well lit. Cluttered or dark areas invite accidents and
injuries. DO NOT work on poor surfaces that are slippery.
WARNING: Do not operate this tool if you are tired or under the influence of alcohol, drugs, or medications that could
affect your ability to use the tool properly.
WARNING: Dress properly. Do not wear loose clothing or jewelery as they can be caught in moving parts. Wear restrictive
hair covering to contain long hair.
WARNING: Do not reach over or across running machines. Keep proper footing and balance at all times. Non-skid foot-

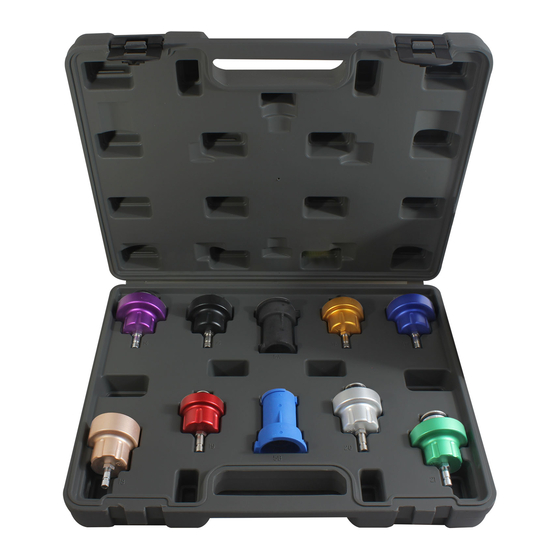

10 PIECE COOLING SYSTEM PRESSURE TEST ADAPTER KIT
DESCRIPTION
Aluminum #14 Adapter (purple)
Aluminum #15 Adapter (black)
Aluminum #16 Adapter (dark gold)
Aluminum #17 Adapter (royal blue)
Aluminum #18 Adapter (champagne)
Aluminum #19 Adapter (red)
Aluminum #20 Adapter (light silver)
Aluminum #21 Adapter (light green)
Radiator Cap Test Connector #2 & #3 (Black)
Radiator Cap Test Connector #2 & #4 (Blue)
Blow Molded Case
43305
1
5
43302-19G Gasket for #19 Aluminum Adapter
43302-21G Gasket for #21 Aluminum Adapter
43302-23G Gasket for #23 Aluminum Adapter
2
3
9
7
6
10
11
4
8
1
