Bauerfeind uniprox JT30 Instruction Manual

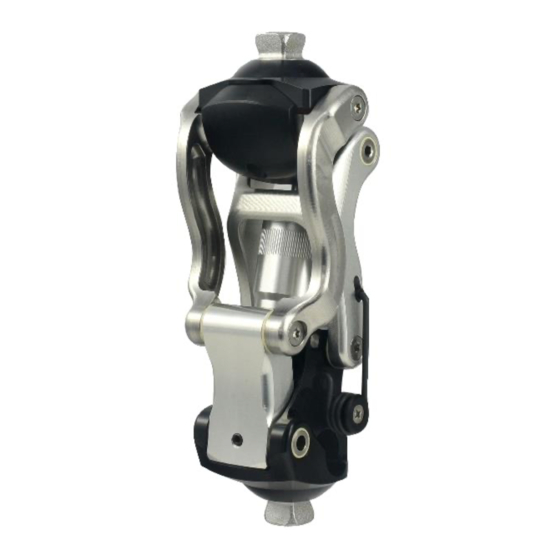

Swan polycentric knee joint with hydraulics and flexible stance-control
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Imasen Engineering Corporation
3-1-8 Techno Plaza Kakamigahara,
Gifu, 509-0109 Japan
Distributed by:
Uniprox GmbH & Co.KG, H.-Heine-Str.4, 07937 Zeulenroda-Triebes
Ein Unternehmen der Bauerfeind Gruppe – www.uniprox.de
MedNet EC-REP GmbH
Borkstrasse 10,
48163 Münster, Germany
Quality and Function
Instruction Manual
JT30
Swan Polycentric Knee Joint with
Hydraulics and flexible
Stance-Control
unique prosthetic solutions
A company of the Bauerfeind Group
